23AAAA8X766 - Troy-Bilt FLEX Mower Attachment (2019) General Assembly Parts Diagram

FLEX Mower Attachment

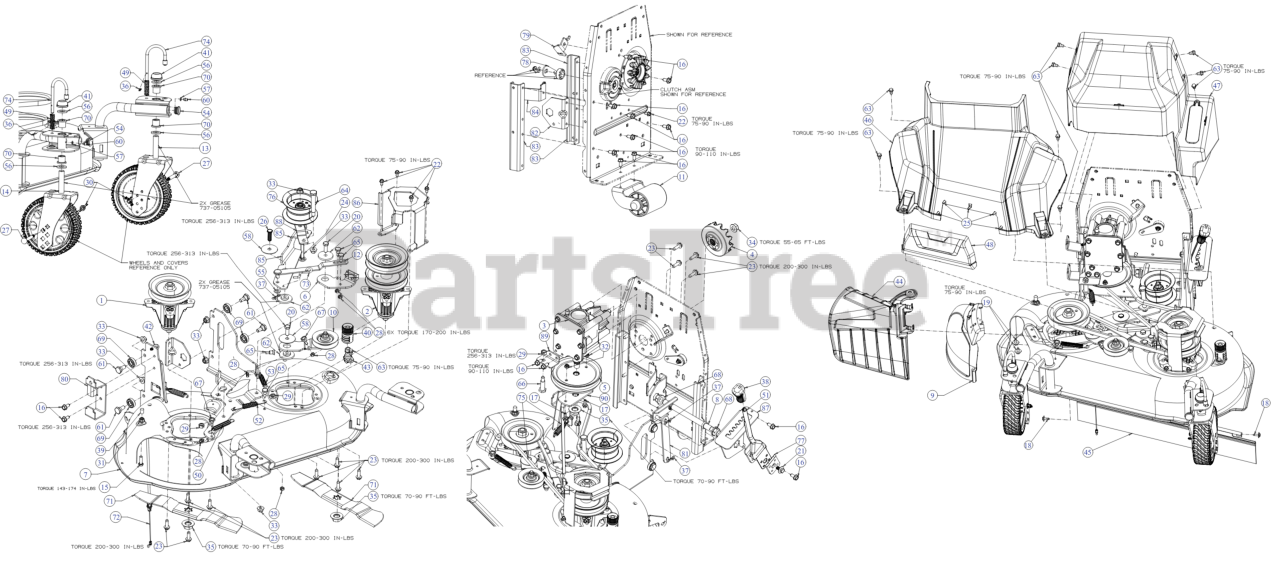

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 918-07028

SPINDLE ASSEMBLY W/PULLEY 5.08 DIA

$97.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 750-04936

SPACER- .792 x 1.060 x 1.860

Note: Not Shown

$6.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 619-04183B

DECK SPINDLE HOUSING
(Superseded to 719-07293-M)

Note: Not Shown

$44.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 783-08435

SHIELD-BRG DECK

Note: Not Shown

$6.99

$

In Stock, only 3 left!

0

1

Troy-Bilt 750-06365

SPACER

Note: Not Shown

$5.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 941-0919B

BALL BEARING

Note: Not Shown

$20.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 756-05086

V-TYPE PULLEY 5.10 DIA

Note: Not Shown

$19.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 750-06153

SPACER .792 x 1.060 x 1.191
(Superseded to 750-06414)

Note: Not Shown

$12.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 738-1186A

BLADE SPINDLE SHAFT STAR 6.11 LG

Note: Not Shown

$49.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 712-05134

FLANGE NUT 5/8-18

Note: Not Shown

$5.99

$

In Stock, Qty 7

0

2

Troy-Bilt 918-07088A

SPINDLE ASSEMBLY-W/PULLEY 5.08 DIA

$154.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 750-04936

SPACER- .792 x 1.060 x 1.860

Note: Not Shown

$6.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 619-04183B

DECK SPINDLE HOUSING
(Superseded to 719-07293-M)

Note: Not Shown

$44.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 783-08435

SHIELD-BRG DECK

Note: Not Shown

$6.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 750-06365

SPACER

Note: Not Shown

$5.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 941-0919B

BALL BEARING

Note: Not Shown

$20.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 750-06414

SPACER :.795 x 1.062 x 1.015

Note: Not Shown

$12.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 756-05165

SPINDLE ASSEMBLY DOUBLE PULLEY

Note: Not Shown

$51.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 712-05134

FLANGE NUT 5/8-18

Note: Not Shown

$5.99

$

In Stock, Qty 7

0

3

Troy-Bilt 918-07117

ANGLE GEARBOX

$386.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 931-05304

DOG CLUTCH ASSEMBLY

$78.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 956-05005

DRIVE PULLEY 6.03 DIA

$22.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 961-05007A

DECK BRACKET ASSEMBLY

$39.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 687-05091A

28" DECK ASSEMBLY

Variations

Troy-Bilt 687-05091A-0638

DECK ASM-28" - MTD/TROY-BILT RED (0638)

$327.99

$

Usually ships in 3-6 days

0

$284.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 687-05111A

DECK LIFT ASSEMBLY

$58.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 687-05133B

MULCH PLUG ASSEMBLY
(Superseded to 687-05133C)

$33.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 987-05143

PULLEY BRACKET ASSEMBLY

$31.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 787-03421

IDLER BRACKET

Note: Not Shown

$18.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-05376

CARRIAGE BOLT 3/8-16 x 1.75 GR5

Note: Not Shown

$3.99

$

In Stock, Qty 11

0

10

Troy-Bilt 712-04065

NUT

Note: Not Shown

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 756-04325

V-IDLER PULLEY A x 3.06 OD

Note: Not Shown

$22.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 987-05144

ROLLER BRACKET ASSEMBLY

Note: Not Shown

$39.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 711-06428

ROLLER SHAFT .75 x 5.44

Note: Not Shown

$9.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 787-03348-0637

ROLLER BRACKET

Note: Not Shown

$29.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 726-0341

CAP

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

11

MTD 731-3305

DECK ROLLER

Note: Not Shown

$29.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 687-05146

BRAKE WELD ASSEMBLY

$25.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 687-05216-0638

CASTER BRACKET ASSEMBLY (LH) (MTD RED)

$77.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 687-05217-0638

CASTER BRACKET ASSEMBLY (RH) (MTD RED)

$77.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 17

0

16

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-04666

SCREW 1/4-20 x .75 GR5

$6.49

$

In Stock, Qty 9

0

18

Troy-Bilt 710-04669

SCREW 10-16 x .625

$3.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-05073

SCREW 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0514

SCREW 3/8-16 x 1 GR5

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-05339A

SCREW 5/16-24 x .750 GR5

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-0602

SCREW 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-06072

BOLT 3/8-16X2.25 GR5

$5.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 710-06147

SCREW 1/4-10 x .750

$3.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-0723

SCREW 3/8-16 x 1.25 GR5

$4.49

$

In Stock, only 3 left!

0

27

Troy-Bilt 911-1146

AXLE CASTER

$12.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 912-0291

HEX LOCK NUT
(Superseded to 712-0291)

$

$

Not available

29

Troy-Bilt 712-0375

HEX NUT

$4.49

$

In Stock, Qty 12

0

30

Troy-Bilt 712-0397A

WING NUT

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 712-04150

NUT

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 712-05134

FLANGE NUT 5/8-18

$5.99

$

In Stock, Qty 7

0

36

Troy-Bilt 914-0104

COTTER PIN .072 DIA. 1.13 LG
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 720-0311

HANDLE GRIP

$14.99

$

In Stock, Qty 7

0

39

Troy-Bilt 720-05010

VINYL CAP

$3.99

$

In Stock, Qty 13

0

40

Troy-Bilt 921-04041

WATER NOZZLE ADAPTER

$21.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 726-0214

PUSH CAP

$9.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 726-3055

CABLE RETAINER CLIP

$6.49

$

In Stock, only 1 left!

0

43

Troy-Bilt 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 731-10510A

CHUTE DEFLECTOR

$34.99

$

In Stock, Qty 8

0

45

Troy-Bilt 731-10534A

TRAILSHIELD 23.00

$15.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 731-10948

LOWER COVER DECK 28"

$39.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 731-10949

UPPER COVER DECK 28"

$39.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 731-11373

LOWER COVER

$19.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 932-0306A

COMPRESSION SPRING .531 OD 1.75 LG

$7.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 932-0429A

EXTENSION SPRING

$8.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 732-04418C

DECK HEIGHT LEVER

$41.99

$

In Stock, Qty 17

0

52

Troy-Bilt 732-05322

EXTENSION SPRING

$5.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 732-05369

EXTENSION SPRING

$5.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 735-0246A

END PLUG

$5.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 17

0

56

Troy-Bilt 736-0366

FLAT WASHER

$4.49

$

In Stock, Qty 14

0

57

Troy-Bilt 736-04426

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$5.99

$

In Stock, Qty 20+

0

60

Troy-Bilt 937-3000

GREASE FITTING

$4.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 738-0143

SHOULDER SCREW .498 DIA x .340

$3.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 738-04162C

SHOULDER SPACER

$12.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

64

Troy-Bilt 938-0481A

SHOULDER SCREW .500X 2.62: 3/8-16

$6.49

$

In Stock, Qty 19

0

65

Troy-Bilt 938-0974

SHOULDER SCREW .375 x X .380 x 1/4-20
(Superseded to 738-0974)

$

$

Not available

66

Troy-Bilt 738-1014

SHOULDER SCREW .50

$3.99

$

In Stock, only 2 left!

0

67

Troy-Bilt 738-1023A

SHOULDER SCREW .37

$3.99

$

In Stock, Qty 7

0

68

Troy-Bilt 941-0225

FLANGE BEARING

$6.99

$

In Stock, Qty 20+

0

69

Troy-Bilt 741-04430A

BALL BEARING

$5.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 741-0685

BEARING:FLANGE .631 ID

$3.99

$

In Stock, Qty 18

0

71

Troy-Bilt 942-05130

14.20" BLADE (MULCH)
(Superseded to 742-05130-0637)

$20.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 490-100-C133

Cub Cadet 28" BLADE SET

Note: Retail Packaged Part

$39.99

$

In Stock, only 1 left!

0

71

Troy-Bilt 490-100-M133

Genuine Factory Parts 28" BLADE SET

Note: Retail Packaged Part

$43.99

$

In Stock, only 2 left!

0

72

Troy-Bilt 746-05176A

DECK CABLE
(Superseded to 946-05176A)

$39.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 747-06506

ROD HOOK

$5.99

$

In Stock, Qty 12

0

74

Troy-Bilt 747-0924

LOCK PIN

$19.99

$

In Stock, only 1 left!

0

75

Troy-Bilt 954-05103

V-BELT A SEC 43.10

$36.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 756-05117

IDLER PULLEY

$42.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 787-01521-0637

HEIGHT LEVER BRACKET

$8.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 787-03175B

DECK CABLE BRACKET

$14.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 787-03181

DECK CABLE BRACKET

$5.49

$

Usually ships in 3-6 days

0

80

Troy-Bilt 787-03232B-0637

GRASSBAG BRACKET (POWDER BLACK)

$34.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 787-03249A-0637

LIFT LINK BRACKET(POWDER BLACK)

$6.49

$

Usually ships in 3-6 days

0

82

Troy-Bilt 787-03252A-0637

LIFT BRACKET (POWDER BLACK)

$14.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 787-03338

BRACKET

$30.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 787-03382B-0637

KEEPER BRACKET (POWDER BLACK)

$11.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 787-03422

DRIVE ENGAGEMENT BRACKET

$35.99

$

In Stock, only 1 left!

0

86

Troy-Bilt 787-03424-0637

BELT KEEPER BRACKET

$48.99

$

Usually ships in 3-6 days

0

87

Troy-Bilt 787-03425-0638

HEIGHT ADJUSTMENT BRACKET

$22.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 787-03428A-0637

KEEPER BRACKET (POWDER BLACK)

$11.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 787-03429A-0637

KEEPER BRACKET (POWDER BLACK)

$7.99

$

Usually ships in 3-6 days

0

90

Troy-Bilt 787-03431

GEAR BOX SPACER

$12.99

$

Usually ships in 3-6 days

0
