23AABA6X711 - Troy-Bilt FLEX Snow Thrower Attachment (2016) Auger & Auger Housing Parts Diagram

FLEX Snow Thrower Attachment

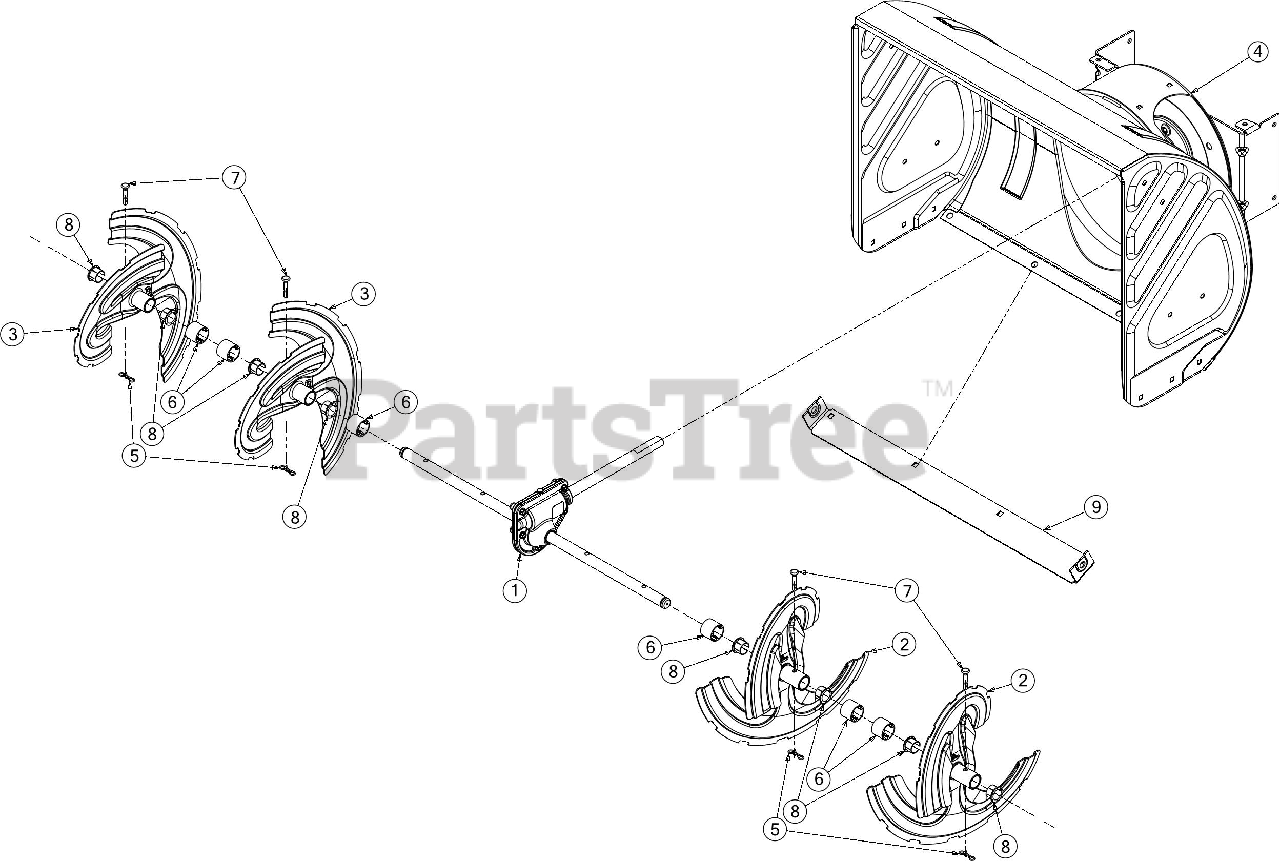

Auger & Auger Housing Parts Diagram

  • Title

1

Troy-Bilt 710-0642

SCREW 1/4-20 x .750

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 711-06144

26" AUGER AXLE

Note: Not Shown

$87.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 715-04021

DOWEL PIN

Note: Not Shown

$4.49

$

In Stock, only 4 left!

0

1

Troy-Bilt 718-04071

COLLAR-THRUST .756ID x .600

Note: Not Shown

$8.49

$

In Stock, Qty 12

0

1

Troy-Bilt 721-0325

PLUG

Note: Not Shown

$4.99

$

In Stock, only 3 left!

0

1

Troy-Bilt 721-0327

OIL SEAL .75 x 1.131 x .188

Note: Not Shown

$6.99

$

In Stock, Qty 18

0

1

Troy-Bilt 736-3084

FLAT WASHER

Note: Not Shown

$5.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 737-0168A

ALVANIA GREASE

Note: Not Shown

$32.99

$

In Stock, Qty 9

0

1

Troy-Bilt 741-0661B

FLANGE BEARING

Note: Not Shown

$11.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 741-0662

FLANGE BEARING

Note: Not Shown

$10.99

$

In Stock, Qty 6

0

1

Troy-Bilt 741-0663

FLANGE BEARING

Note: Not Shown

$10.99

$

In Stock, Qty 15

0

1

Troy-Bilt 914-0161

KEY 3/16 x 5/8 H

Note: Not Shown

$4.99

$

In Stock, Qty 18

0

1

Troy-Bilt 917-04126

WORM SHAFT

Note: Not Shown

$84.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 917-04861

WORM GEAR 20T

Note: Not Shown

$45.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 918-0123A

HOUSING ASSEMBLY (RH)

Note: Not Shown

$55.99

$

In Stock, Qty 7

0

1

Troy-Bilt 918-0123A

REDUCER HOUSING ASSEMBLY (RH)

Note: Not Shown

$55.99

$

In Stock, Qty 7

0

1

Troy-Bilt 918-0124A

HOUSING ASSEMBLY (LH)

Note: Not Shown

$55.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 918-0124A

REDUCER HOUSING ASSEMBLY (LH)

Note: Not Shown

$55.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 918-04172C

26" GEARBOX ASSEMBLY

$460.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 921-0338

SEAL .750 x 1.00 x .125

Note: Not Shown

$7.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 936-0351

THRUST WASHER
(Superseded to 736-0351)

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 790-00107

SPIRAL - 30" x 12"

Note: Not Shown

$

$

Currently unavailable

2

Troy-Bilt 684-04107A-0638

AUGER ASSEMBLY (LH)
(Superseded to 684-04107A-0637)

$94.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 790-00107

SPIRAL - 30" x 12"

Note: Not Shown

$

$

Currently unavailable

3

Troy-Bilt 684-04108A-0638

AUGER ASSEMBLY (RH)
(Superseded to 684-04108A-0637)

$100.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 790-00106

SPIRAL - 30'' x 12''

Note: Not Shown

$

$

Currently unavailable

4

Troy-Bilt 684-05102A-0638

26" AUGER HOUSING

$310.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 741-0493C

FLANGE BUSHING

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 790-00121-0638

26" SHAVE PLATE
(Superseded to 790-00121-0637)

$38.99

$

In Stock, Qty 8

0
