23AABA6X711 - Troy-Bilt FLEX Snow Thrower Attachment (2017) Chute Parts Diagram

FLEX Snow Thrower Attachment

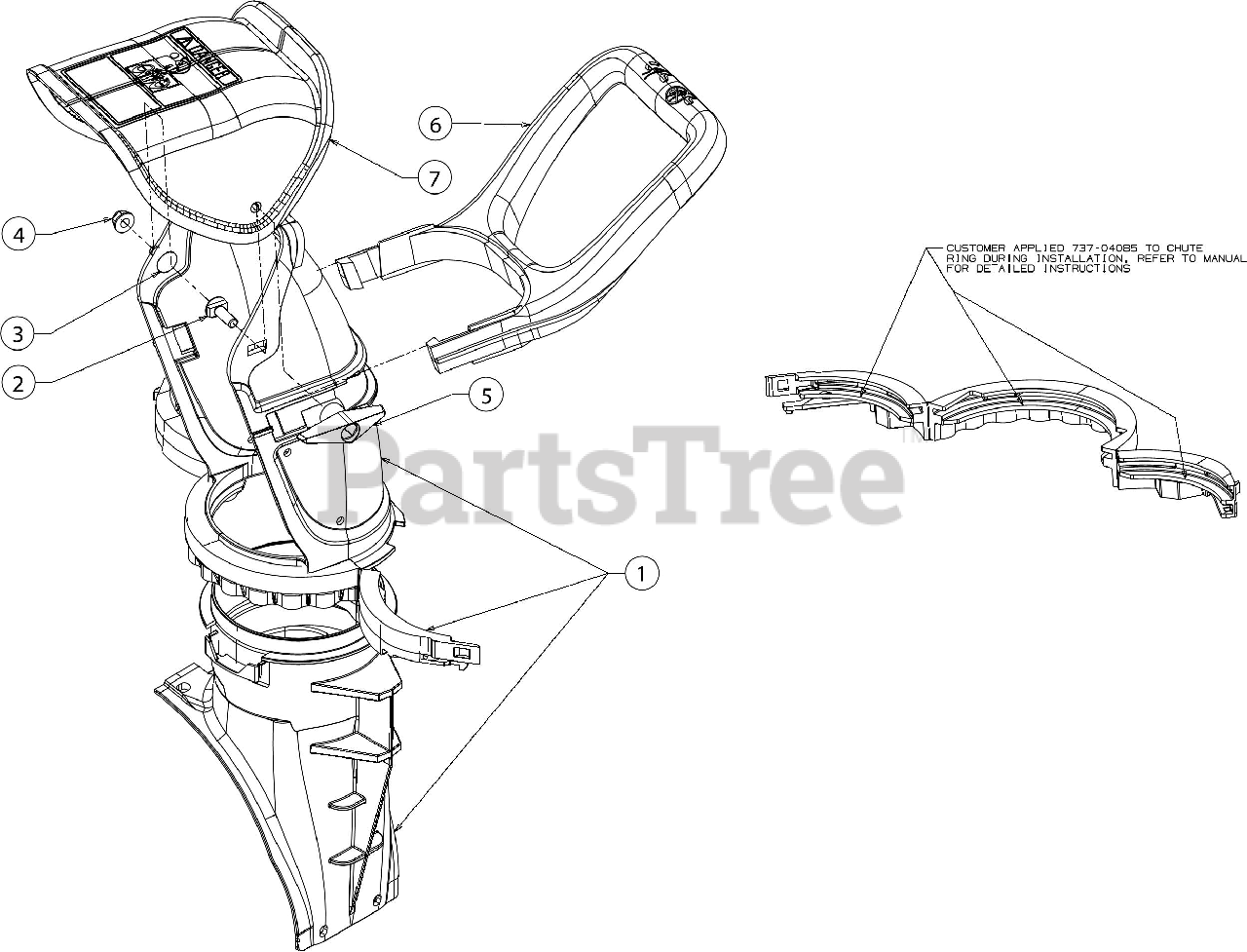

Chute Parts Diagram

  • Title

1

Troy-Bilt 984-05103

CHUTE ASSEMBLY

$49.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 931-04127

LOWER CHUTE

Note: Not Shown

$35.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 931-04353

CHUTE LOWER RING

Note: Not Shown

$20.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 932-04111

SPRING

Note: Not Shown

$4.99

$

In Stock, Qty 16

0

1

Troy-Bilt 731-10679

CHUTE-ADAPTOR

Note: Not Shown

$31.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04071

CARRIAGE BOLT 5/16-18 x 1

$4.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 920-0284

WING NUT KNOB
(Superseded to 720-0284)

$

$

Not available

5

Troy-Bilt 912-0429

HEX NUT
(Superseded to 712-0429)

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 720-04072A

STAR KNOB 5/16

Note: Not Shown

$7.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-04388A

CHUTE HANDLE

$28.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 731-04426A

UPPER CHUTE
(Superseded to 731-04426C)

$20.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 937-04085

LITHIUM GREASE

$8.99

$

Usually ships in 3-6 days

0
