23AACAAX711 - Troy-Bilt FLEX Leaf Blower Attachment (2015) FLEX Blower Attachment-Blower Housing Parts Diagram

FLEX Leaf Blower Attachment

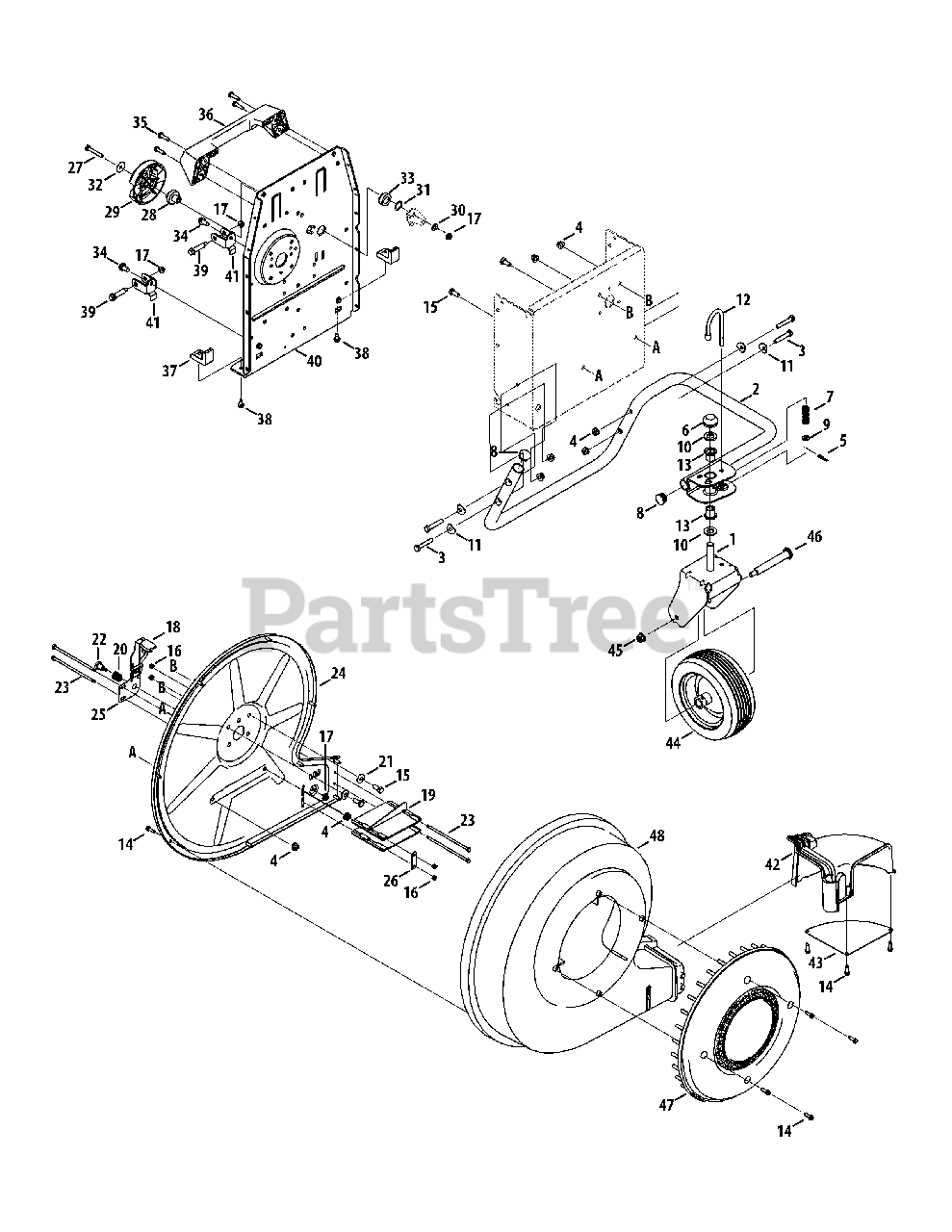

FLEX Blower Attachment-Blower Housing Parts Diagram

  • Title

1

Troy-Bilt 681-04085-0638

Caster Wheel Bracket Assembly
(Superseded to 681-04085-4021)

$70.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 681-05031-0638

Lower Frame Assembly

$93.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 914-0104

Cotter Pin, .072 Dia. x 1.13 Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 12

0

6

Troy-Bilt 726-0214

Push Cap, 5/8

$11.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 932-0306A

Compression Spring, .531 x 1.75 Lg.

$8.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 735-0246A

End Plug

$6.49

$

In Stock, Qty 11

0

9

Troy-Bilt 936-0264

Flat Washer, .330 x .630 x .064

$7.49

$

In Stock, Qty 7

0

10

Troy-Bilt 736-0366

Flat Washer, .640 x 1.120 x .125

$4.99

$

In Stock, Qty 18

0

11

Troy-Bilt 936-0451

Saddle Washer, .320 x .93 x .060
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

12

Troy-Bilt 747-0924

Lock Pin

$22.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 741-0685

Flange Bearing, .631 ID

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-04373A

Hex Screw, #12-16 x .75

$4.99

$

In Stock, Qty 10

0

15

Troy-Bilt 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04035

Hex Lock Nut, #8-32

$4.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$14.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 731-05644

Louver Blower Plate

$8.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 932-3042

Compr. Sprng., .515 x .641 x .95

$5.49

$

In Stock, only 1 left!

0

21

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 738-04222

Shoulder Screw, .437 x .50 x 1/4-20

$3.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 738-04223

Shoulder Screw, .18 x 4.8 x 8-32

$5.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 781-04165A

Blower Back Plate

Variations

781-04165A-0606

Troy-Bilt 781-04165A-0606

PLATE-BACK BLOWER - MAJESTIC ORANGE (0606)

$63.99

$

Usually ships in 3-6 days

0

781-04165A-0638

Troy-Bilt 781-04165A-0638

PLATE-BACK BLOWER - MTD/TROY-BILT RED (0638)

$78.99

$

Usually ships in 3-6 days

0

781-04165A-0691

Troy-Bilt 781-04165A-0691

PLATE-BACK BLOWER - BLACK JACK (0691)

$78.99

$

Usually ships in 3-6 days

0

781-04165A-4021

Troy-Bilt 781-04165A-4021

PLATE-BACK BLOWER - CUB YELLOW 2 (4021)

$78.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 781-04181A-0637

Louver Blower Lever
(Superseded to 781-04181B-0637)

$26.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 781-04212-0637

Louver Guide Plate

$8.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-0136

Hex Cap Screw, 1/4-20 x 1.75

$4.49

$

In Stock, Qty 14

0

28

Troy-Bilt 711-06319

Clutch Link Shaft

$9.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 731-10493A

Idler Clutch

$11.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 736-04353

Wave Washer, .65 ID x .855 x .010

$6.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 736-3092

Flat Washer, .265 x 1.0 x .030

$4.49

$

In Stock, only 4 left!

0

33

Troy-Bilt 741-04237B

Hex Flange Bearing 5/8 PM

$7.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-05074

Self-tapping Screw, 1/4-20 x 1.00

$3.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 731-10490

Rear Handle

$41.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 735-05103

Bumper Pad

$10.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 938-1226

Shoulder Screw,, 1/4-20 x .375 x 1.355
(Superseded to 738-1226)

$8.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 787-03177B-0637

Frame Mounting Bracket
(Superseded to 787-03177D-0638)

$71.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 787-03195-0637

Support Bracket

$12.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 631-04253

Chute Assembly

$39.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 781-04175-0638

Chute Plate

$10.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 934-04497A

Complete Wheel, 8 x 3

$39.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 738-04290

Shoulder Screw, 3/8-16 x .625 x 3.94

$14.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 731-05664

Blower Cover

$48.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 731-05592

Blower Housing

$84.99

$

Usually ships in 3-6 days

0
