23AACAAX711 - Troy-Bilt FLEX Leaf Blower Attachment (2015) FLEX Blower Attachment-Drive Attachment Parts Diagram

FLEX Leaf Blower Attachment

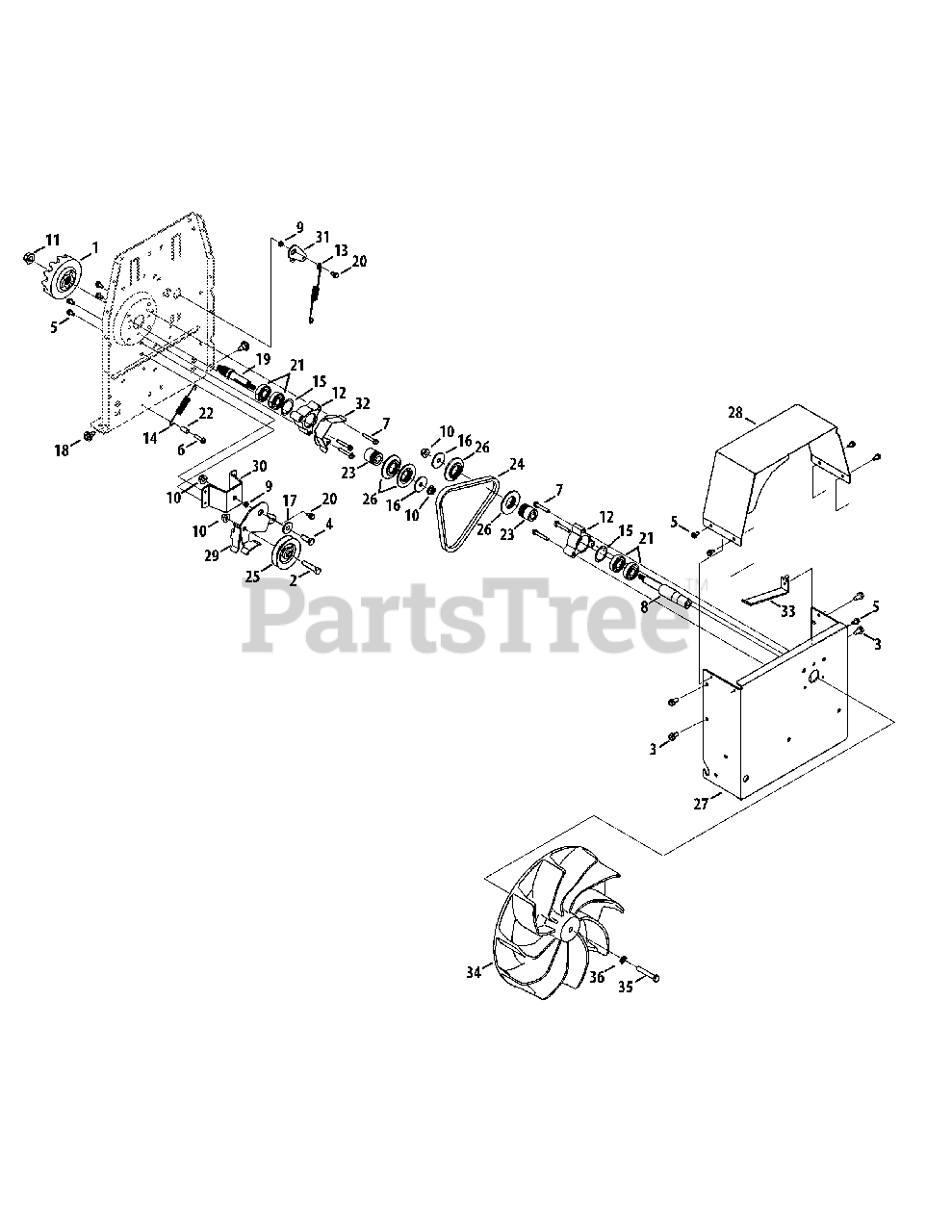

FLEX Blower Attachment-Drive Attachment Parts Diagram

  • Title

1

Troy-Bilt 931-05304

Clutch Assembly

$89.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0788

Self-tapping Screw, 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-1325

Self-tapping Screw, 1/4-20 x 1.625

$4.99

$

In Stock, Qty 13

0

8

Troy-Bilt 711-06384A

Spindle Shaft

$66.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

10

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04150

Flange Lock Nut, 1/2-13

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 718-04261

Bearing Cup

$21.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 732-05361

Extension Spring, .52 OD x 6.1

$5.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 732-05322

Extension Spring, .500 Dia. x 4.233

$6.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 736-04516

Washer, 1.25 x 1.57 x .01

$6.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 936-3039

Washer, Flat, .406 x 1.5 x .105
(Superseded to 736-3039)

$

$

Not available

17

Troy-Bilt 938-0347

Shoulder Spacer, .625 x .169

$10.99

$

In Stock, Qty 6

0

18

Troy-Bilt 738-04091A

Shoulder Screw, .43 x .29, 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-05104A

Drive Spindle

$41.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 938-1225

Shoulder Screw, 1/4-20 x .3175 x .188
(Superseded to 738-1225)

$

$

Not available

21

Troy-Bilt 941-0600

Ball Bearing, 17 x 40 x 12

$26.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 750-05369

Spacer, .260 x .375 x .75

$5.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 750-06280

Spacer, .670 ID x 1.185 OD

$9.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 954-04123

V-Belt

$32.99

$

In Stock, Qty 11

0

25

Troy-Bilt 756-04325

Idler Pulley, V-Type x 3.06

$25.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 756-04353

Pulley Half, 4L-V x 2.30 OD

$7.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 781-05060-0637

Blower Frame

$94.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 781-05061-0637

Blower Top Cover Bracket

$33.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 781-05062B

Blower Drive Idler Bracket

$39.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 781-05063A-0637

Idler Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 781-05096

Cable Engagement Bracket
(Superseded to 781-05096A)

$17.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 781-05072-0637

Drive Input Keeper Bracket

$22.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 781-05075-0637

Drive Output Keeper Bracket

$19.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 631-04213

Blower Impeller Assembly

$170.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 710-1254

Hex Cap Screw, 3/8-24 x 2.25

$7.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, only 3 left!

0
