23AACAAX766 - Troy-Bilt FLEX Leaf Blower Attachment (2019) Caster Wheel Bracket Parts Diagram

FLEX Leaf Blower Attachment

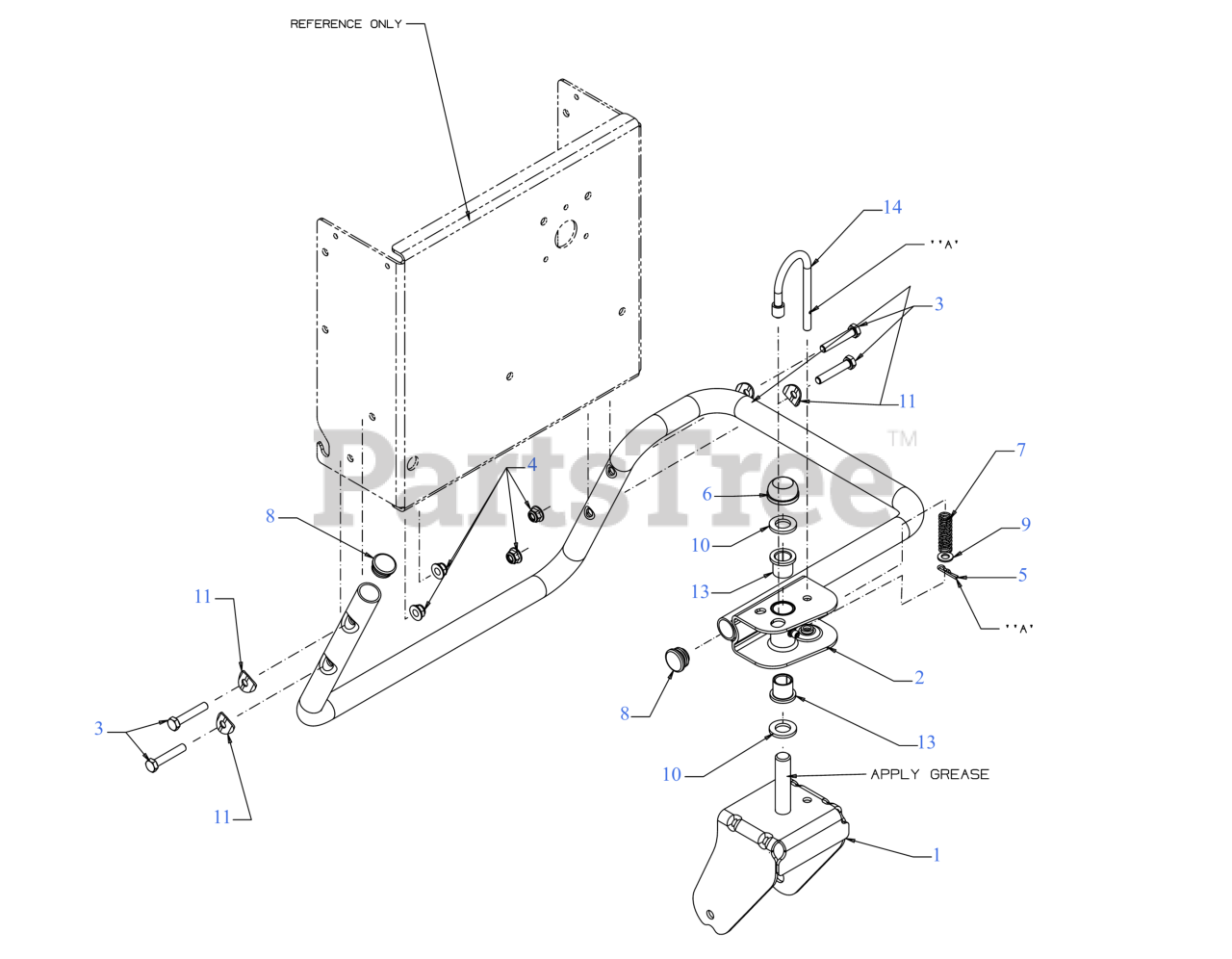

Caster Wheel Bracket Parts Diagram

  • Title

1

Troy-Bilt 681-04085

WHEEL BRACKET ASSEMBLY

Note: (Choose color when ordering)

Variations

681-04085-0606

Troy-Bilt 681-04085-0606

BRACKET ASM-WHEEL - MAJESTIC ORANGE (0606)

$70.99

$

Usually ships in 3-6 days

0

681-04085-0638

Troy-Bilt 681-04085-0638

BRACKET ASM-WHEEL - MTD/TROY-BILT RED (0638)

$70.99

$

Usually ships in 3-6 days

0

681-04085-4021

Troy-Bilt 681-04085-4021

BRACKET ASSY-WHEEL - CUB YELLOW 2 (4021)

$70.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 681-05031

LOWER FRAME ASSEMBLY

Note: (Choose color when ordering)

Variations

681-05031-0638

Troy-Bilt 681-05031-0638

FRAME ASM-LOWER - MTD/TROY-BILT RED (0638)

$93.99

$

Usually ships in 3-6 days

0

$81.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-3180

SCREW 5/16-18 x 1.75 GR5

$5.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 914-0104

COTTER PIN .072 DIA. 1.13 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 12

0

6

Troy-Bilt 726-0214

PUSH CAP

$11.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 932-0306A

COMPRESSION SPRING .531 OD 1.75 LG

$8.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 735-0246A

END PLUG

$6.49

$

In Stock, Qty 11

0

9

Troy-Bilt 936-0264

FLAT WASHER .344 x .62

$7.49

$

In Stock, Qty 7

0

10

Troy-Bilt 736-0366

FLAT WASHER

$4.99

$

In Stock, Qty 18

0

11

Troy-Bilt 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

13

Troy-Bilt 741-0685

BEARING:FLANGE .631 ID

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 747-0924

LOCK PIN

$22.99

$

In Stock, only 3 left!

0
