23AAFAAX711 - Troy-Bilt FLEX Chipper Shredder Attachment (2016) Impeller Parts Diagram

FLEX Chipper Shredder Attachment

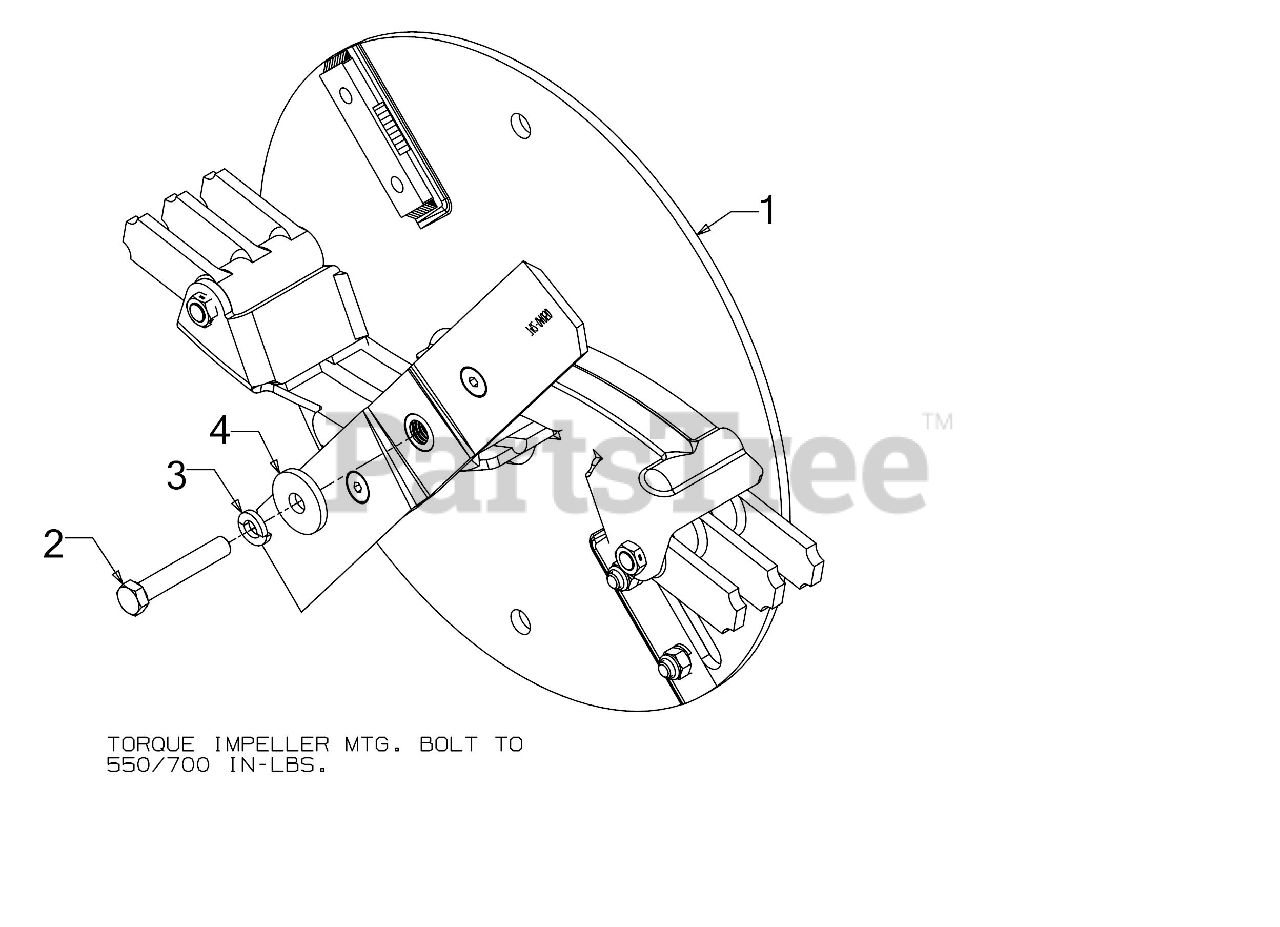

Impeller Parts Diagram

  • Title

1

Troy-Bilt 710-1054

SCREW 5/16-24 x 1

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 712-0266A

JAM LOCK NUT

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 719-04308

FLAIL BLADE

Note: (Not Shown)

$18.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 738-04286A

SHOULDER PIN

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 912-0411

HEX NUT
(Superseded to 712-0411)

Note: (Not Shown)

$

$

Not available

1

Troy-Bilt 936-0119

LOCK WASHER 5/16

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 942-04050

IMPELLER BLADE
(Superseded to 742-04050-0637)

Note: (Not Shown)

$34.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 942-0544B

CHIPPER BLADE

Note: (Not Shown)

$89.99

$

In Stock, Qty 14

0

1

Troy-Bilt 981-05068

IMPELLER ASSEMBLY

$449.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-1254

SCREW 3/8-24X2.25 GR8

$7.49

$

In Stock, Qty 9

0

3

Troy-Bilt 936-0217

LOCK WASHER 3/8HD
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

4

Troy-Bilt 736-0247

FLAT WASHER

$8.99

$

In Stock, Qty 20+

0
