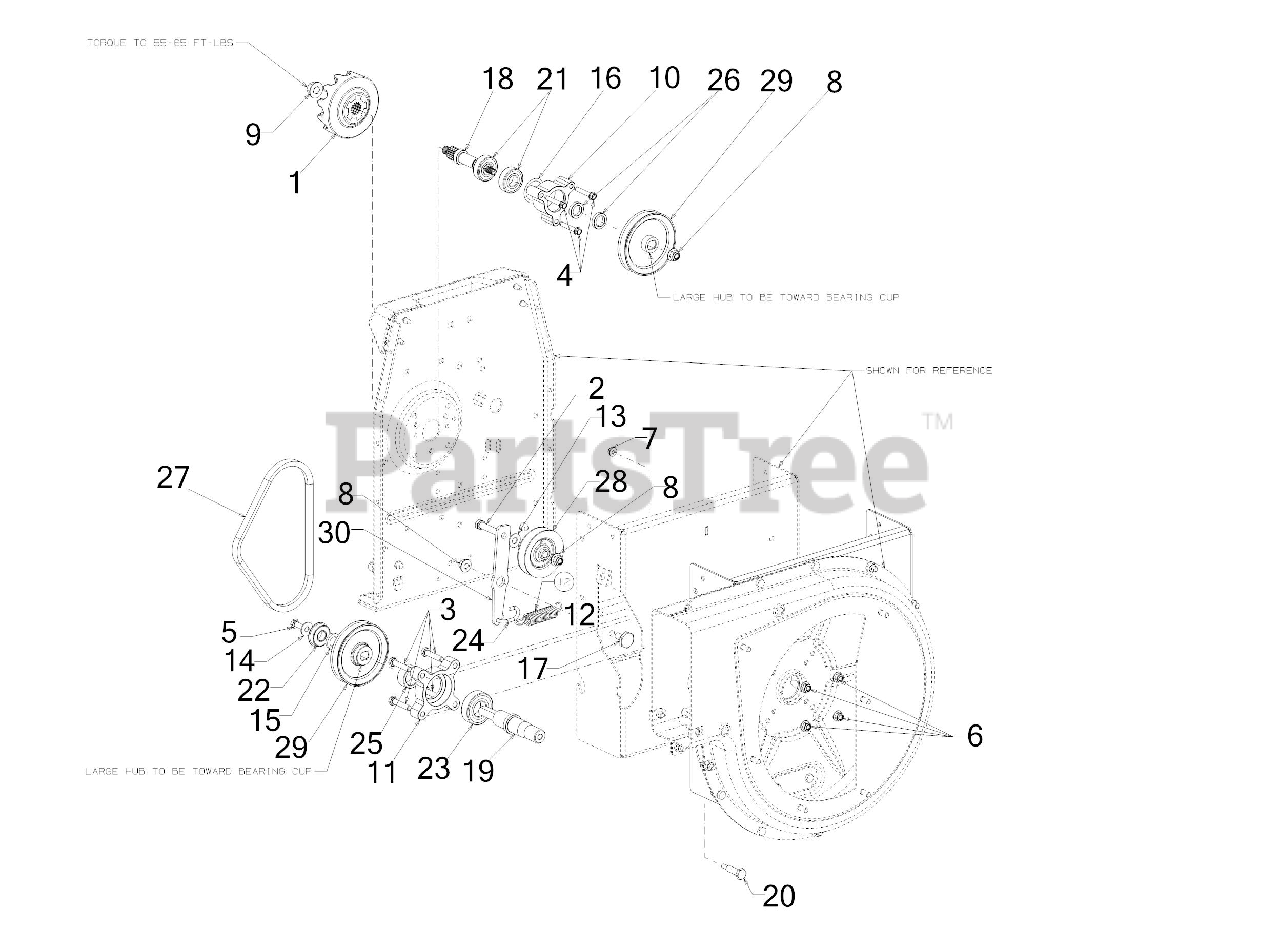

23AAFAAX711 - Troy-Bilt FLEX Chipper Shredder Attachment (2017) Drive Parts Diagram

FLEX Chipper Shredder Attachment

Drive Parts Diagram

  • Title

1

Troy-Bilt 931-05304

DOG CLUTCH ASSEMBLY

$89.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 931-05304

DOG CLUTCH

Note: (Not Shown)

$89.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 735-05109

DOG CLUTCH BUMPER

Note: (Not Shown)

$2.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.50 GR5

$4.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1325

SCREW 1/4-20 X1.625

$4.99

$

In Stock, Qty 13

0

5

Troy-Bilt 710-1880

SCREW 5/16-18 x .750

$4.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 718-04261

BEARING CUP

$21.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 718-05424

BEARING HOUSING

$66.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 732-04323B

EXTENSION SPRING

$13.99

$

In Stock, Qty 12

0

13

Troy-Bilt 936-0300

FLAT WASHER
(Superseded to 736-0300)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0371

FLAT WASHER

$4.99

$

In Stock, only 2 left!

0

15

MTD 736-04296

FLAT WASHER .632X1.00X.16

$3.49

$

In Stock, Qty 9

0

16

Troy-Bilt 736-04516

SHIM WASHER

$6.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 738-0322A

SHIELD SCREW

$7.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 738-05184

DRIVE SPINDLE SHAFT

$92.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 738-05185

IMPELLER SPINDLE

$93.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 938-0572

SHOULDER SCREW
(Superseded to 738-0572)

$

$

Not available

21

Troy-Bilt 941-0600

BALL BEARING

$26.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 741-0145

GROOVE BALL BEARING

$45.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 941-0301

BALL BEARING

$56.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 747-06513

EXTENSION SPRING HOOK

$13.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 750-04438A

SLEEVE SPACER 25MM x 1.375 x 44

$4.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 950-0997

SPACER

$7.49

$

In Stock, only 2 left!

0

27

Troy-Bilt 954-05147

V-BELT 1/2 X 25.5

$36.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 756-04325

V-IDLER PULLEY A x 3.06 OD

$25.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 756-05220

DRIVE PULLEY

$43.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 787-03638A

ILDER BRACKET

$14.99

$

Usually ships in 3-6 days

0
