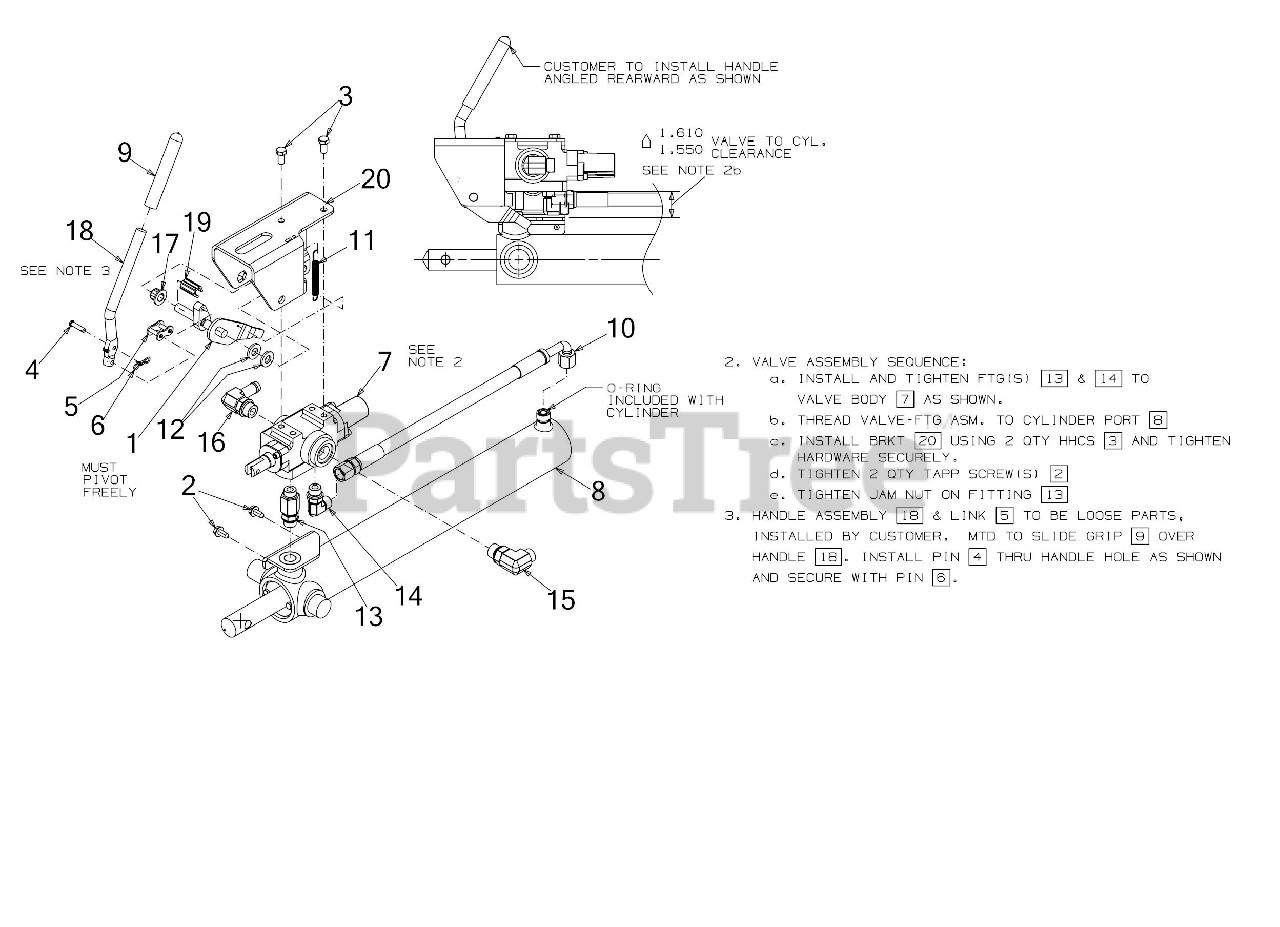

23AAGAAX711 - Troy-Bilt FLEX Log Splitter Attachment (2016) Cylinder Parts Diagram

FLEX Log Splitter Attachment

Cylinder Parts Diagram

  • Title

1

Troy-Bilt 681-05058

HANDLE PIVOT ARM ASSEMBLY

$16.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-3119

SCREW 3/8-16 x .75 GR 5

$7.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 711-04585

CLEVIS PIN .25 x 1.00

$7.49

$

In Stock, Qty 11

0

5

Troy-Bilt 913-04036

VALVE HANDLE LINK

$22.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 918-05426

CONTROL VALVE FLEX

$269.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 721-04411

O-RING

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 918-05428

LOGSPLITTER CYLINDER

$469.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 720-04088

GRIP

$10.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 727-05103

HYDRAULIC HOSE

$62.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 932-0611

EXTENSION SPRING

$7.99

$

In Stock, Qty 8

0

12

Troy-Bilt 936-0326

FLAT WASHER .510 x 1.000 x .125
(Superseded to 736-0326)

$4.99

$

In Stock, Qty 12

0

13

Troy-Bilt 737-04309

HYDRAULIC FITTING

$20.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 737-04320

HYDRAULIC FITTING

$21.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 737-04322

90 DEGREE HYDRO FITTING 7/8 ORB x 13/16

$33.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 737-05099

HYDRAULIC FITTING 7/8 ORB

$31.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 741-04108

HEX FLANGE BEARING .506ID x .590LG

$6.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 747-06708

CONTROL VALVE HANDLE

$20.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 750-06537

SPACER CLIP

$4.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 781-05146A-0638

CONTROL VALVE BRACKET

$71.99

$

Usually ships in 3-6 days

0
