23AAHAAX711 - Troy-Bilt FLEX Water Pump Attachment (2016) Water Pump Parts Diagram

FLEX Water Pump Attachment

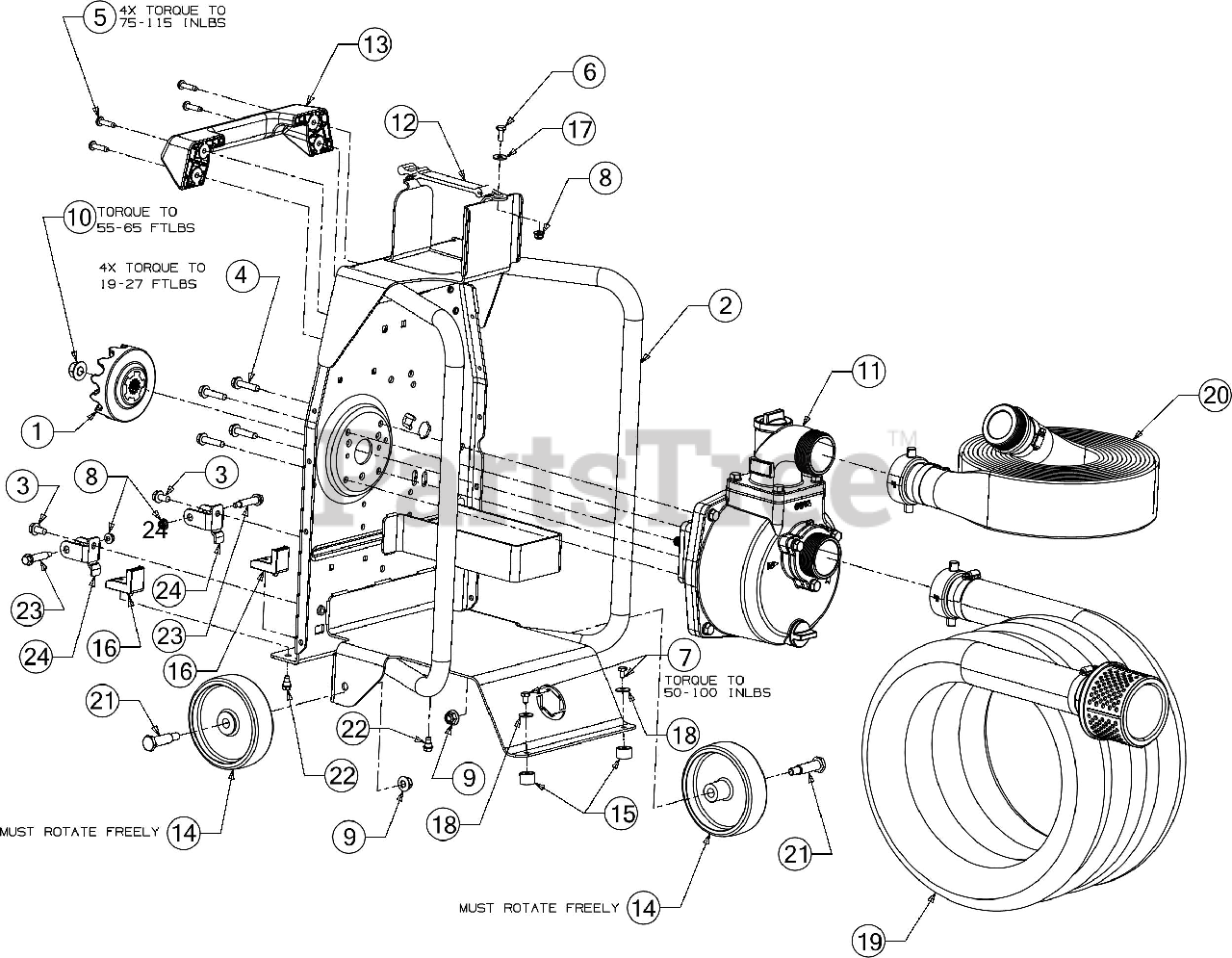

Water Pump Parts Diagram

  • Title

1

Troy-Bilt 735-05109

DOG CLUTCH BUMPER

Note: Not Shown

$2.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 931-05304

DOG CLUTCH

Note: Not Shown

$89.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 931-05304

DOG CLUTCH ASSEMBLY

$89.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 687-05202*COLOR

WATER PUMP FRAME ASSEMBLY

$

$

Currently unavailable

2

Troy-Bilt 787-03177D*COLOR

FRAME MOUNT BRACKET

Note: Not Shown

$

$

Currently unavailable

3

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04605B

HEX SCREW WASHER 5/16-18 x 1.5

$7.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-05074

SCREW 1/4-20 x 1.0

$3.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0751

SCREW 1/4-20 x .620 GR5

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-3209

SCREW M6-1.0X10MM GR8.8

$8.99

$

In Stock, Qty 9

0

8

Troy-Bilt 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04150

NUT

$4.99

$

In Stock, Qty 8

0

11

Troy-Bilt 718-05413

WATER PUMP ASSEMBLY

$307.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 732-0695

WIRE HOOK

Note: Not Shown

$3.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 732-0696

WIRE HOOK

Note: Not Shown

$4.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 923-0383

RETAINER STRAP ASSEMBLY

$16.99

$

In Stock, Qty 8

0

13

Troy-Bilt 731-10490

HANDLE

$41.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 734-0973

PLASTIC WHEEL 5X1.38
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 735-04121

BUMPER

$3.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 735-05103

BUMPER PAD

$10.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-0270

SPRING WASHER BELL

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 937-05086

SUCTION HOSE

$176.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 937-05087

DISCHARGE HOSE

$123.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 938-0373

SHOULDER SCREW

$9.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 938-1226

SHOULDER SCREW
(Superseded to 738-1226)

$8.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 787-03195*COLOR

SUPPORT BRACKET

$

$

Currently unavailable
