23AAJAAX711 - Troy-Bilt FLEX Dethatcher Attachment (2016) Frame Parts Diagram

FLEX Dethatcher Attachment

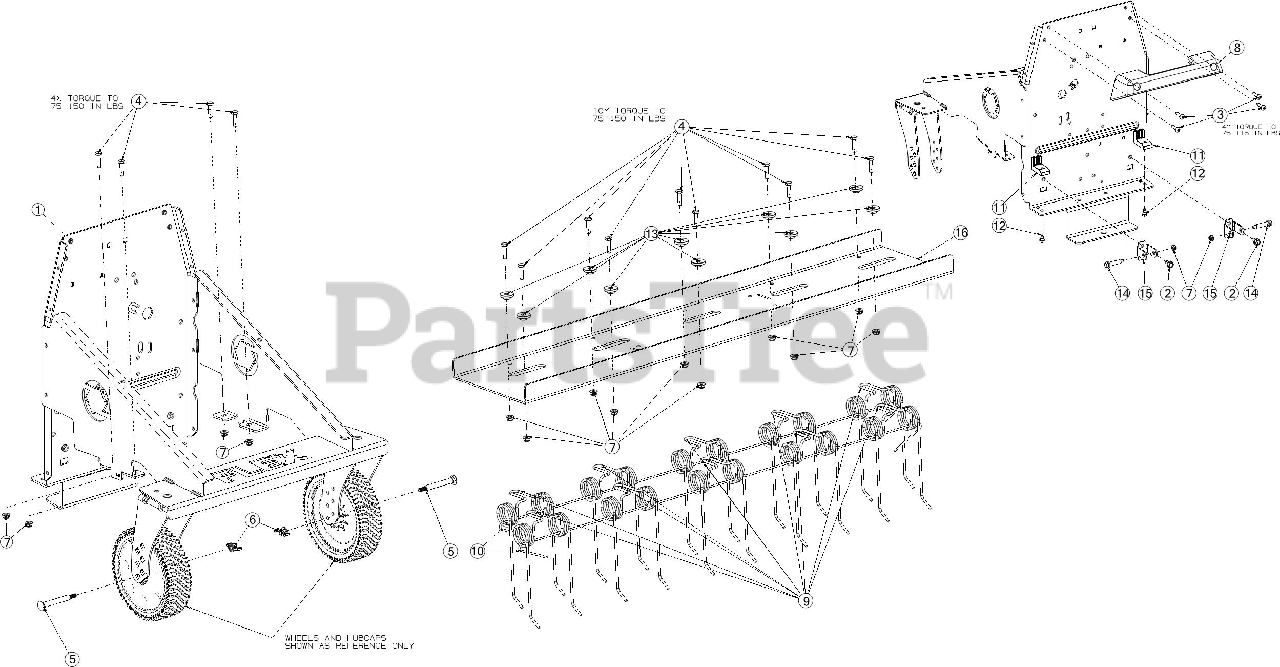

Frame Parts Diagram

  • Title

1

Troy-Bilt 687-05180-0638

DETHATCHER FRAME ASSEMBLY

$140.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-05074

SCREW 1/4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 18

0

5

Troy-Bilt 911-1146

CASTER AXLE

$13.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-0397A

WING NUT

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 731-10490

HANDLE

$39.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 732-05402A

DETHATCHER SPRING

$9.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 732-05404

DETHATCHER RETAINING WIRE

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 735-05069

BUMPER PAD

$5.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 938-0958

SHOULDER SPACER

$4.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 938-1226

SHOULDER SCREW

$7.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 787-03195-0637

SUPPORT BRACKET

$11.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 787-03509-0638

DETHATCHER TRAY BRACKET

$67.99

$

Usually ships in 3-6 days

0
