23AAKAAX766 - Troy-Bilt FLEX Aerator Attachment (2019) General Assembly Parts Diagram

FLEX Aerator Attachment

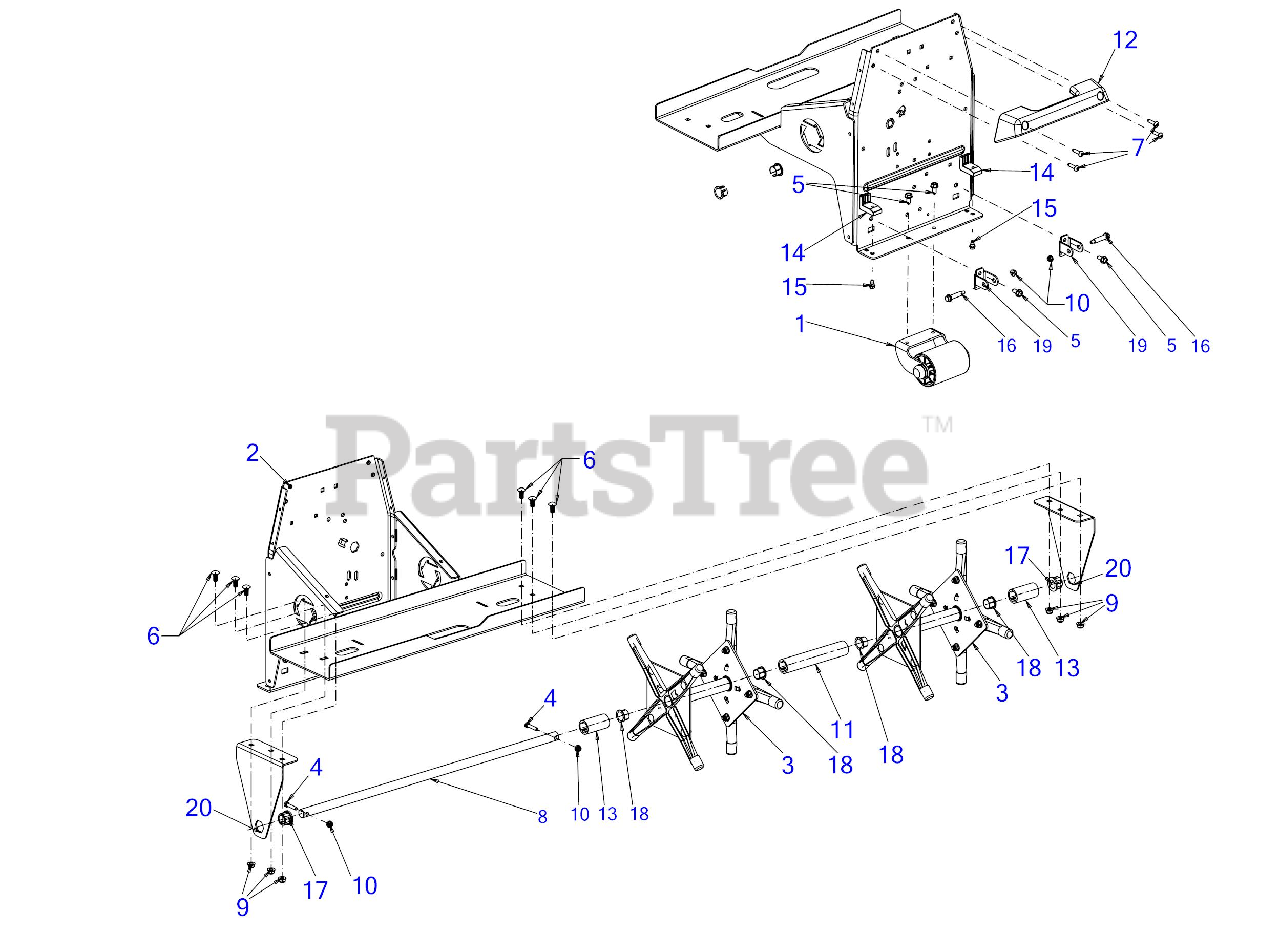

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 987-05144

ROLLER BRACKET ASSEMBLY

Note: (See Separate Breakdown)

$39.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 687-05185-0638

AERATOR FRAME ASSEMBLY

$161.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 687-05197-0637

AERATOR DOUBLE WELD ASSEMBLY

Note: (See Separate Breakdown)

$53.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0106

HEX SCREW 1/4-20 x 1.25

$3.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0451

CARRIAGE BOLT 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-05074

SCREW 1/4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 711-06594

CORE AERATOR AXLE

$57.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 731-09486

SPACER

$8.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 731-10490

HANDLE

$36.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 731-11883

SPACER - .75 x 1.25 x 2.4

$3.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 735-05069

BUMPER PAD

$5.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 938-1226

SHOULDER SCREW

$7.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 941-0245

FLANGE BEARING

$9.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 787-03195-0637

SUPPORT BRACKET

$10.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 787-03557-0638

AXLE SUPPORT BRACKET

$30.99

$

Usually ships in 3-6 days

0
