24 H - Husqvarna Hedge Trimmer (SN: 19921400001 & Above) PISTON & CRANKSHAFT Parts Diagram

Hedge Trimmer

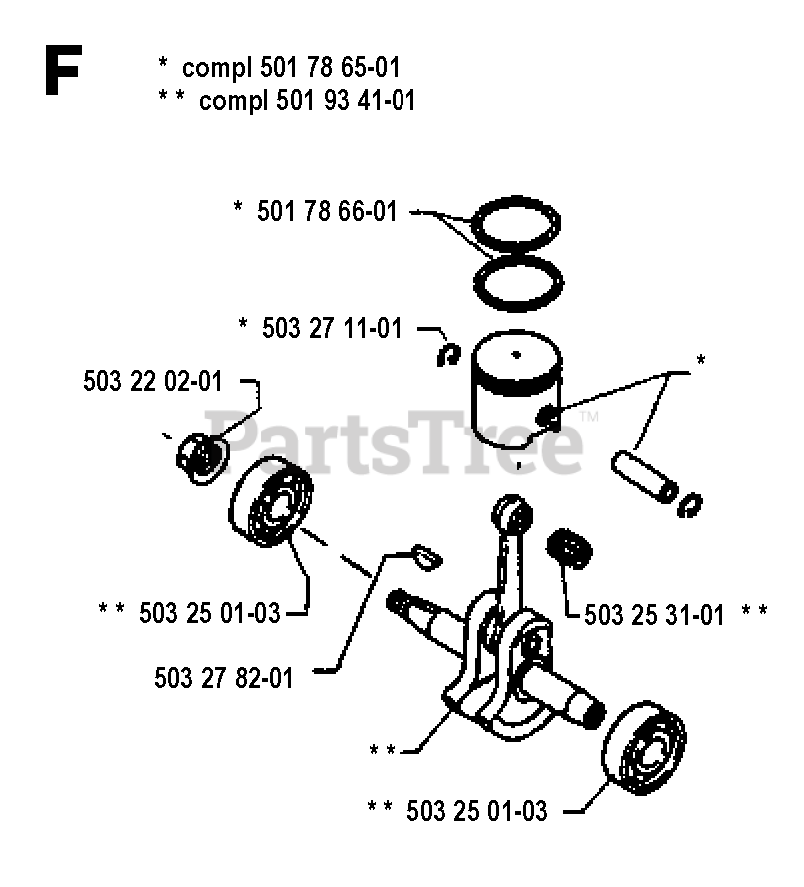

PISTON & CRANKSHAFT Parts Diagram

  • Title

503 27 82-01

Husqvarna 503278201

KEY NLA

$

$

Not available

501 78 65-01

Husqvarna 501786501

PISTON
(Superseded to 501949401)

$

$

Not available

503 27 11-01

Husqvarna 5032711-01

Retaining Ring

$

$

Currently unavailable

503 25 01-03

Husqvarna 503250103

Ball Bearing

$

$

Not available

503 25 31-01

Husqvarna 503253101

NEEDLE BEARING

$

$

Not available

501 93 41-01

Husqvarna 501934101

CRANKSHAFT

$

$

Not available

501 78 66-01

Husqvarna 501786601

PISTON RING

$21.99

$

Usually ships in 3-10 days

0

503 22 02-01

Husqvarna 5032202-01

Flange Nut

$

$

Currently unavailable
