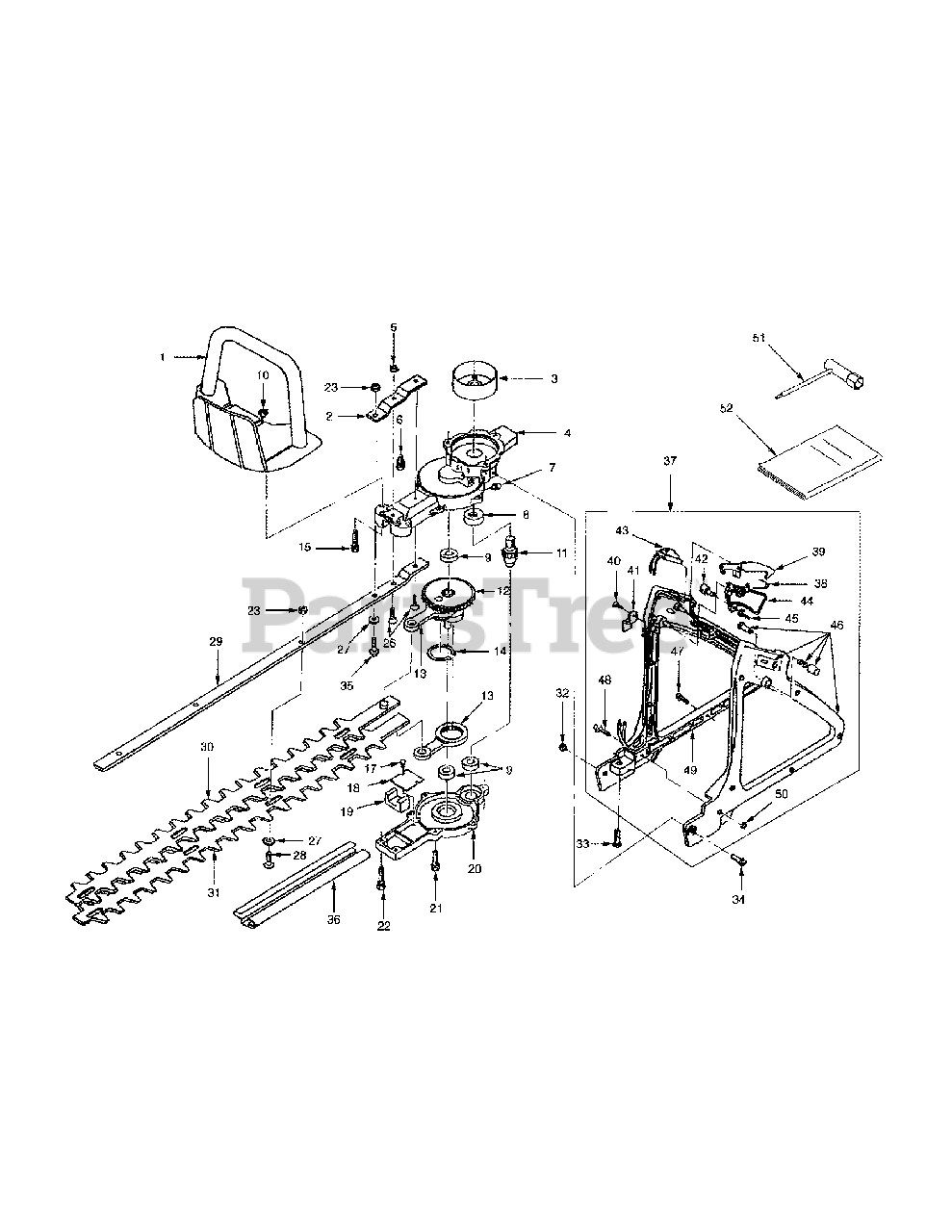

24 HC-C (59AC202-050) - Cub Cadet Double Sided Hedge Clipper Clipper Parts Diagram

Double Sided Hedge Clipper

Clipper Parts Diagram

  • Title

1

Cub Cadet IM-728510010

Handle

$

$

Not available

2

Cub Cadet IM-728640010

Plate

$

$

Not available

3

Cub Cadet IM-728400010

Drum, Clutch

$

$

Not available

4

Cub Cadet IM-728210010

Case, Gear

$

$

Not available

5

Cub Cadet IM-023100005

Nut

$

$

Not available

6

Cub Cadet IM-720973178

Bolt, M6x14

$

$

Not available

7

Cub Cadet IM-728970100

Nipples, Grease

$

$

Not available

8

Cub Cadet IM-040146001

Bearing, Ball, 6001

$

$

Not available

9

Cub Cadet IM-728970010

Bearing, Ball, 6082

$

$

Not available

10

Cub Cadet IM-020300006

Nut

$

$

Not available

11

Cub Cadet IM-728310010

Gear, Pinion

$

$

Not available

12

Cub Cadet IM-728320010

Gear, Crank

$

$

Not available

13

Cub Cadet IM-728350010

Rod

$

$

Not available

14

Cub Cadet IM-036100026

Snap Ring, S-26

$

$

Not available

15

Cub Cadet IM-011150635

Bolt, M6x35

$

$

Not available

17

Cub Cadet IM-015100305

Screw, M3x5

$

$

Not available

18

Cub Cadet IM-728640020

Plate

$

$

Not available

19

Cub Cadet IM-198133100

Felt

$

$

Not available

20

Cub Cadet IM-728210020

Case, Gear

$

$

Not available

21

Cub Cadet IM-010709008

Bolt, M5x16

$3.49

$

In Stock, only 2 left!

0

22

Cub Cadet IM-010709009

Bolt, M5x20

$

$

Not available

23

Cub Cadet IM-728970020

Nut

$

$

Not available

26

Cub Cadet IM-015300520

Screw, M5x20

$

$

Not available

27

Cub Cadet IM-728970030

Washer

$

$

Not available

28

Cub Cadet IM-728970040

Screw

$7.99

$

Usually ships in 3-6 days

0

29

Cub Cadet IM-728640030

Plate

$

$

Not available

30

Cub Cadet IM-728700010

Blade

$

$

Not available

31

Cub Cadet IM-728700020

Blade

$

$

Not available

32

Cub Cadet IM-020100006

Nut

$

$

Not available

33

Cub Cadet IM-010709036

Bolt, M6x45

$

$

Not available

34

Cub Cadet IM-011140650

Bolt, M6x50

$

$

Not available

35

Cub Cadet IM-728970050

Screw

$

$

Not available

36

Cub Cadet IM-728720010

Cover, Balde

$

$

Not available

37

Cub Cadet IM-728050010

Handle Assembly

$

$

Not available

38

Cub Cadet IM-125233070

Plate

$

$

Not available

39

Cub Cadet IM-125323160

Lever

$

$

Not available

40

Cub Cadet IM-728970060

Screw, M4x10

$

$

Not available

41

Cub Cadet IM-125683070

Wire Holder

$

$

Not available

42

Cub Cadet IM-125333020

Piece, Set

Note: NLA

$

$

Not available

43

Cub Cadet IM-185203300

Switch, Stop

$

$

Not available

44

Cub Cadet IM-125323170

Lever

$

$

Not available

45

Cub Cadet IM-728970070

Snap Ring

$

$

Not available

46

Cub Cadet IM-728500010

Handle

$

$

Not available

47

Cub Cadet IM-728970080

Screw, M4x16

$

$

Not available

48

Cub Cadet IM-728970090

Screw, M4x30

$

$

Not available

49

Cub Cadet IM-728510020

Handle

$

$

Not available

50

Cub Cadet IM-020100004

Nut

$

$

Not available

51

Cub Cadet IM-720983371

Wrench, Spanner Box 19

$

$

Not available

52

Cub Cadet IM-100814830

Manual, Operator's

Note: NLA

$

$

Currently unavailable
