24 R - Husqvarna String Trimmer (1985-01) General Assembly Parts Diagram

String Trimmer

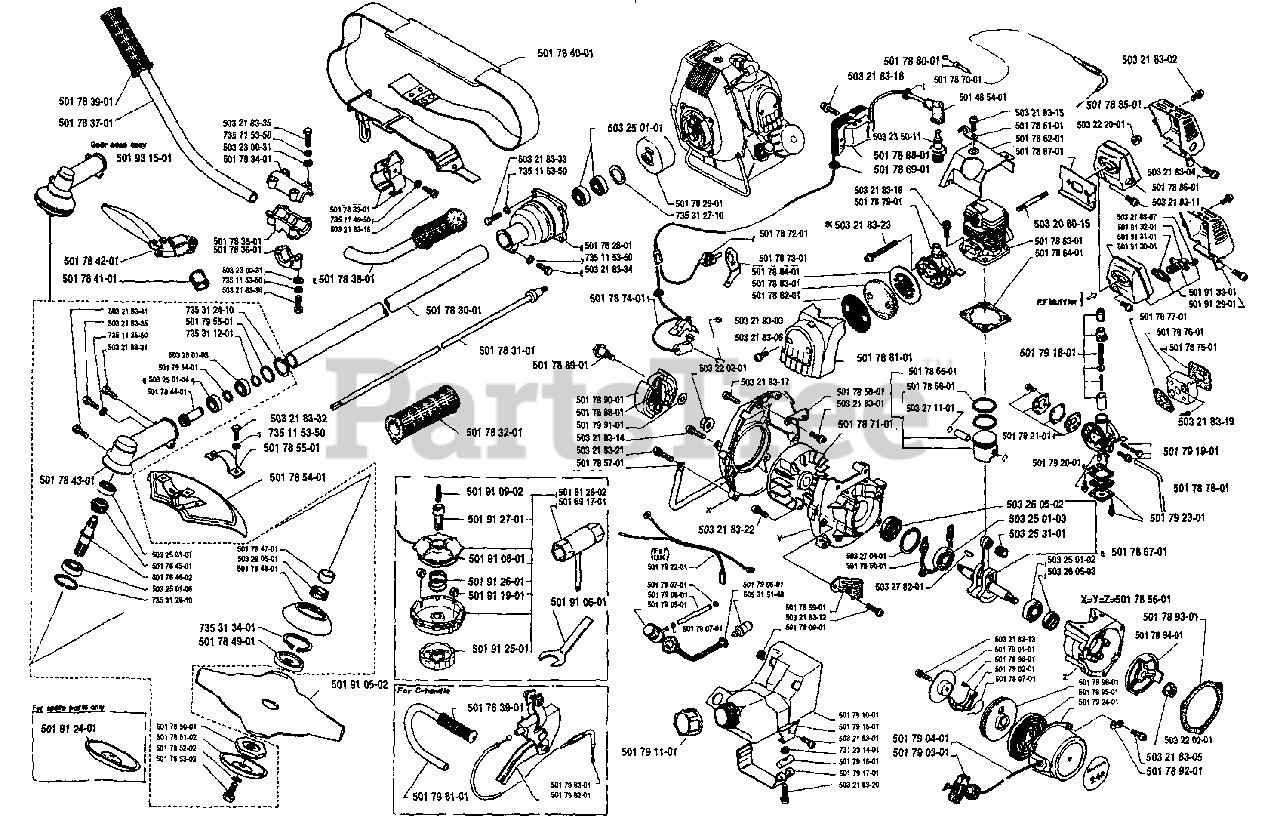

General Assembly Parts Diagram

  • Title

501783901

Husqvarna 501783901

HANDLE NLA

$

$

Not available

501783701

Husqvarna 501783701

HANDLE RIGHT NLA

$

$

Not available

501931501

Husqvarna 501931501

ANGLE GEAR CPL.
(Superseded to 531007892)

$

$

Not available

503218335

Husqvarna 503218335

SCREW 6X25

$

$

Not available

735115350

Husqvarna 735115350

SPRING WASHER 6.4X11

$

$

Not available

503230031

Husqvarna 503230031

WASHER 6.4X14

$

$

Not available

501783401

Husqvarna 501783401

HANDLE HOLDER,UPPER

$

$

Not available

501784201

Husqvarna 501784201

THROTTLE LEVER

$

$

Not available

501784101

Husqvarna 501784101

SLEEVE

$

$

Not available

501783501

Husqvarna 501783501

HANDLE HOLDER,LOWER

$

$

Not available

501783601

Husqvarna 501783601

BRACKET NLA

$

$

Not available

503230031

Husqvarna 503230031

WASHER 6.4X14

$

$

Not available

735115350

Husqvarna 735115350

SPRING WASHER 6.4X11

$

$

Not available

503218336

Husqvarna 503218336

SCREW 6X30

$

$

Not available

503218341

Husqvarna 503218341

SCREW 8X10

$

$

Not available

503218335

Husqvarna 503218335

SCREW 6X25

$

$

Not available

735113550

Husqvarna 735113550

REPL BY 735 11 53-50
(Superseded to 735115350)

$

$

Not available

503218331

Husqvarna 503218331

SCREW 6X10

$

$

Not available

735312410

Husqvarna 735312410

RETAINING RING SGH 22

$

$

Not available

501795501

Husqvarna 501795501

SPACER NLA

$

$

Not available

735311201

Husqvarna 735311201

SNAP RING, 24R NLA

$

$

Not available

503250105

Husqvarna 503250105

Ball Bearing

$

$

Not available

501795401

Husqvarna 501795401

SPACER NLA

$

$

Not available

503250104

Husqvarna 503250104

BALL BEARING

$

$

Not available

501784401

Husqvarna 501784401

PINION

$

$

Not available

501784301

Husqvarna 501784301

GEAR HOUSING
(Superseded to 531007892)

$

$

Not available

503250107

Husqvarna 503250107

Ball Bearing

$

$

Not available

501784501

Husqvarna 501784501

GEAR WHEEL

$

$

Not available

501784602

Husqvarna 501784602

BLADE AXIS

$

$

Not available

503250106

Husqvarna 503250106

BEARING
(Superseded to 738210110)

$13.99

$

In Stock, only 2 left!

0

735312810

Husqvarna 735312810

RETAINING RING SGH 28

$3.49

$

In Stock, only 2 left!

0

735313401

Husqvarna 735313401

RETAINING RING SGA 36

$

$

Not available

501784901

Husqvarna 501784901

BOSS NLA

$

$

Not available

501784701

Husqvarna 501784701

SPACER NLA

$

$

Not available

503260501

Husqvarna 503260501

SEALING RING

$26.99

$

Usually ships in 3-10 days

0

501784801

Husqvarna 501784801

STABILIZER NLA

$

$

Not available

501912401

Husqvarna 501912401

SUPPORTING CUP NLA

$

$

Not available

501785001

Husqvarna 501785001

BOSS

$

$

Not available

501785102

Husqvarna 501785102

CUP

$22.99

$

In Stock, only 1 left!

0

501785202

Husqvarna 501785202

WASHER

$

$

Not available

501785302

Husqvarna 501785302

BOLT

$

$

Not available

501910502

Husqvarna 501910502

SHRUB BLADE 255 MM
(Superseded to 596278101)

$26.99

$

In Stock, only 1 left!

0

501912501

Husqvarna 501912501

SUPPORTING KNOB

$

$

Not available

501783901

Husqvarna 501783901

HANDLE NLA

$

$

Not available

51798101

Husqvarna 51798101

$

$

Currently unavailable

501798301

Husqvarna 501798301

THROTTLE WIRE CPL NLA

$

$

Not available

501798201

Husqvarna 501798201

THROTTLE LEVER

$

$

Not available

501783201

Husqvarna 501783201

HANDLE NLA

$

$

Not available

501910902

Husqvarna 501910902

Bolt

$9.49

$

In Stock, only 1 left!

0

501912701

Husqvarna 501912701

ADAPTOR

$

$

Not available

501910801

Husqvarna 501910801

USE 502 047701 NYLON CORD

$

$

Not available

501912601

Husqvarna 501912601

SPRING NLA

$

$

Not available

501911901

Husqvarna 501911901

EYELET

$3.49

$

In Stock, Qty 11

0

51910601

Husqvarna 51910601

$

$

Currently unavailable

516691701

Husqvarna 516691701

$

$

Currently unavailable

501912802

Husqvarna 501912802

TRIMMER HEAD CPL
(Superseded to 695000352)

$

$

Not available

501783001

Husqvarna 501783001

DRIVE TUBE

$

$

Not available

501783101

Husqvarna 501783101

DRIVE SHAFT

$

$

Not available

501788901

Husqvarna 501788901

BOLT

$

$

Not available

501789001

Husqvarna 501789001

CLUTCH
(Superseded to 502166201)

$

$

Not available

501788801

Husqvarna 501788801

SPRING

$

$

Not available

501799001

Husqvarna 501799001

SPARK ARRESTOR

$

$

Not available

503218314

Husqvarna 503218314

SCREW 5X12

$

$

Not available

503218321

Husqvarna 503218321

SCREW 5X25

$

$

Not available

501785701

Husqvarna 501785701

STAND

$

$

Not available

501791101

Husqvarna 501791101

TANK CAP
(Superseded to 502192101)

$

$

Not available

51790701

Husqvarna 51790701

$

$

Currently unavailable

503218320

Husqvarna 503218320

SCREW 5X25

$

$

Not available

501791701

Husqvarna 501791701

BAND, TANK

$

$

Not available

731231401

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

501791701

Husqvarna 501791701

BAND, TANK

$

$

Not available

503218301

Husqvarna 503218301

SCREW 4X8

$

$

Not available

501791501

Husqvarna 501791501

TANK HANGER

$

$

Not available

501791001

Husqvarna 501791001

FUEL TANK

$

$

Not available

501790901

Husqvarna 501790901

PAD

$

$

Not available

503218312

Husqvarna 503218312

SCREW 5X8

$

$

Not available

501792201

Husqvarna 501792201

LEAD NLA

$

$

Not available

51790701

Husqvarna 51790701

$

$

Currently unavailable

501790801

Husqvarna 501790801

TUBE, FUEL
(Superseded to 501787801)

$

$

Not available

501790501

Husqvarna 501790501

PRIMER PUMP

$

$

Not available

503218322

Husqvarna 503218322

SCREW 5X30

$

$

Not available

51790601

Husqvarna 51790601

$

$

Currently unavailable

55315148

Husqvarna 55315148

$

$

Currently unavailable

501785901

Husqvarna 501785901

CLAMP

$

$

Not available

503270401

Husqvarna 503270401

SNAP RING NLA

$

$

Not available

501786001

Husqvarna 501786001

GASKET

$

$

Not available

50327

Husqvarna 50327

$

$

Currently unavailable

503250103

Husqvarna 503250103

BALL BEARING

$

$

Not available

503253101

Husqvarna 503253101

NEEDLE BEARING

$

$

Not available

503250102

Husqvarna 503250102

BALL BEARING

$

$

Not available

503260503

Husqvarna 503260503

SEALING RING

$

$

Not available

503218313

Husqvarna 503218313

SCREW 5X11

$

$

Not available

501790101

Husqvarna 501790101

FRICTION PLATE

$

$

Not available

501789601

Husqvarna 501789601

STARTER PULLEY

$

$

Not available

501790201

Husqvarna 501790201

RATCHET

$

$

Not available

501789701

Husqvarna 501789701

FRICTION SPRING

$

$

Not available

501790401

Husqvarna 501790401

STARTER ROPE

$

$

Not available

501790301

Husqvarna 501790301

STARTER HANDLE

$

$

Not available

501789601

Husqvarna 501789601

STARTER PULLEY

$

$

Not available

501789501

Husqvarna 501789501

RECOIL SPRING

$

$

Not available

501792401

Husqvarna 501792401

STARTER ASSEMBLY NLA

$

$

Not available

501789201

Husqvarna 501789201

HOLDER

$

$

Not available

503218305

Husqvarna 503218305

SCREW 4X16

$

$

Not available

503220201

Husqvarna 503220201

FLANGE NUT

$

$

Not available

51789401

Husqvarna 51789401

$

$

Currently unavailable

51789301

Husqvarna 51789301

$

$

Currently unavailable

501785601

Husqvarna 501785601

CRANKCASE NLA

$

$

Not available

501786701

Husqvarna 501786701

CRANKSHAFT

$

$

Not available

501792301

Husqvarna 501792301

DIAPHRAGM COVER COMPL

$

$

Not available

51787801

Husqvarna 51787801

$

$

Currently unavailable

503260502

Husqvarna 503260502

SEALING RING

$

$

Not available

51792001

Husqvarna 51792001

$

$

Currently unavailable

501791901

Husqvarna 501791901

ADJ. SCREW SET

$

$

Not available

501792101

Husqvarna 501792101

CARB KIT
(Superseded to 501950801)

$

$

Not available

501791801

Husqvarna 501791801

THROTTLE SET

$

$

Not available

501787601

Husqvarna 501787601

INLET FLANGE

$

$

Not available

501787501

Husqvarna 501787501

GASKET

$

$

Not available

503218319

Husqvarna 503218319

SCREW
(Superseded to 502169901)

$

$

Not available

501796401

Husqvarna 501796401

CHOKE
(Superseded to 501796402)

$

$

Not available

501796301

Husqvarna 501796301

7.000 14CT S B1415 C

$

$

Not available

503208015

Husqvarna 503208015

STUD

$

$

Not available

501787701

Husqvarna 501787701

GASKET

$

$

Not available

501912901

Husqvarna 501912901

MUFFLER COVER NLA

$

$

Not available

501913301

Husqvarna 501913301

MUFFLER ASS'Y NLA

$

$

Not available

501913001

Husqvarna 501913001

MUFFLER BODY

$

$

Not available

501913101

Husqvarna 501913101

GASKET

$

$

Not available

501913201

Husqvarna 501913201

PIPE TAIL

$

$

Not available

503218307

Husqvarna 503218307

SCREW NLA

$

$

Not available

503218311

Husqvarna 503218311

SCREW 5X8

$

$

Not available

501788601

Husqvarna 501788601

SILENCER NLA

$

$

Not available

503218304

Husqvarna 503218304

SCREW 4X16 NLA

$

$

Not available

501788701

Husqvarna 501788701

GASKET

$

$

Not available

501786201

Husqvarna 501786201

CYLINDER COVER

$

$

Not available

503218315

Husqvarna 503218315

SCREW 5X12 NLA

$

$

Not available

501786101

Husqvarna 501786101

CLAMP

$

$

Not available

503222001

Husqvarna 503222001

STOVER NUT M5
(Superseded to 503222302)

$

$

Not available

501788501

Husqvarna 501788501

HEAT PROTECTOR

$

$

Not available

503218302

Husqvarna 503218302

SCREW 4X8

$

$

Not available

501788001

Husqvarna 501788001

THROTTLE WIRE
(Superseded to 501952901)

$

$

Not available

503218318

Husqvarna 503218318

SCREW W/WASHER 5X20

$

$

Not available

501787001

Husqvarna 501787001

GROMMET

$

$

Not available

51485401

Husqvarna 51485401

$

$

Currently unavailable

503235011

Husqvarna 503235011

SPARK PLUG NGK BPM7A
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

501786801

Husqvarna 501786801

IGNITION COIL

$

$

Not available

501786901

Husqvarna 501786901

GROMMET

$

$

Not available

503218318

Husqvarna 503218318

SCREW W/WASHER 5X20

$

$

Not available

501787901

Husqvarna 501787901

CARBURETOR NLA

$

$

Not available

503218323

Husqvarna 503218323

SCREW 5X48

$

$

Not available

501787201

Husqvarna 501787201

STOP SWITCH NLA

$

$

Not available

735312710

Husqvarna 735312710

RETAINING RING SGH 26

$11.99

$

In Stock, only 1 left!

0

501782901

Husqvarna 501782901

CLUTCH DRUM

$74.99

$

In Stock, only 1 left!

0

503250101

Husqvarna 503250101

BALL BEARING MFG KOYO

$

$

Not available

501782801

Husqvarna 501782801

CLUTCH COVER NLA

$

$

Not available

735115350

Husqvarna 735115350

SPRING WASHER 6.4X11

$

$

Not available

503218333

Husqvarna 503218333

SCREW 6X20

$

$

Not available

501784001

Husqvarna 501784001

HARNESS NLA

$

$

Not available

501783301

Husqvarna 501783301

HANGING BKT SHOULDER HARNESS

$17.99

$

In Stock, Qty 5

0

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

503218316

Husqvarna 503218316

SCREW 5X14

$3.49

$

In Stock, only 1 left!

0

501783801

Husqvarna 501783801

HANDLE LEFT

$

$

Not available

503218332

Husqvarna 503218332

SCREW 6X18

$

$

Not available

735115350

Husqvarna 735115350

SPRING WASHER 6.4X11

$

$

Not available

501785501

Husqvarna 501785501

SAFETY COVER BAND NLA

$

$

Not available

501785401

Husqvarna 501785401

SAFETY COVER NLA

$

$

Not available

501787301

Husqvarna 501787301

BRACKET NLA

$

$

Not available

501788401

Husqvarna 501788401

FILTER HOLDER

$

$

Not available

501788301

Husqvarna 501788301

FILTER ELEMENT

$

$

Not available

501788201

Husqvarna 501788201

SCREEN

$

$

Not available

503218303

Husqvarna 503218303

SCREW

$

$

Not available

503218306

Husqvarna 503218306

SCREW 4X25 NLA

$

$

Not available

735115350

Husqvarna 735115350

SPRING WASHER 6.4X11

$

$

Not available

503218334

Husqvarna 503218334

SCREW 6X22 NLA

$

$

Not available

501787401

Husqvarna 501787401

CONTACT BREAKER ASS'Y

$

$

Not available

503220201

Husqvarna 503220201

FLANGE NUT

$

$

Not available

503218317

Husqvarna 503218317

SCREW
(Superseded to 502185101)

$

$

Not available

501788101

Husqvarna 501788101

FILTER COVER NLA

$

$

Not available

501785801

Husqvarna 501785801

SUPPORT NLA

$

$

Not available

503218301

Husqvarna 503218301

SCREW 4X8

$

$

Not available

51787101

Husqvarna 51787101

$

$

Currently unavailable

501786501

Husqvarna 501786501

PISTON
(Superseded to 501949401)

$

$

Not available

501786601

Husqvarna 501786601

Piston Ring

$

$

Not available

503271101

Husqvarna 503271101

RETAINING RING

$

$

Not available
