240-650-190 - White Outdoor Shredder (1990) Shredder Assembly Parts Diagram

Shredder

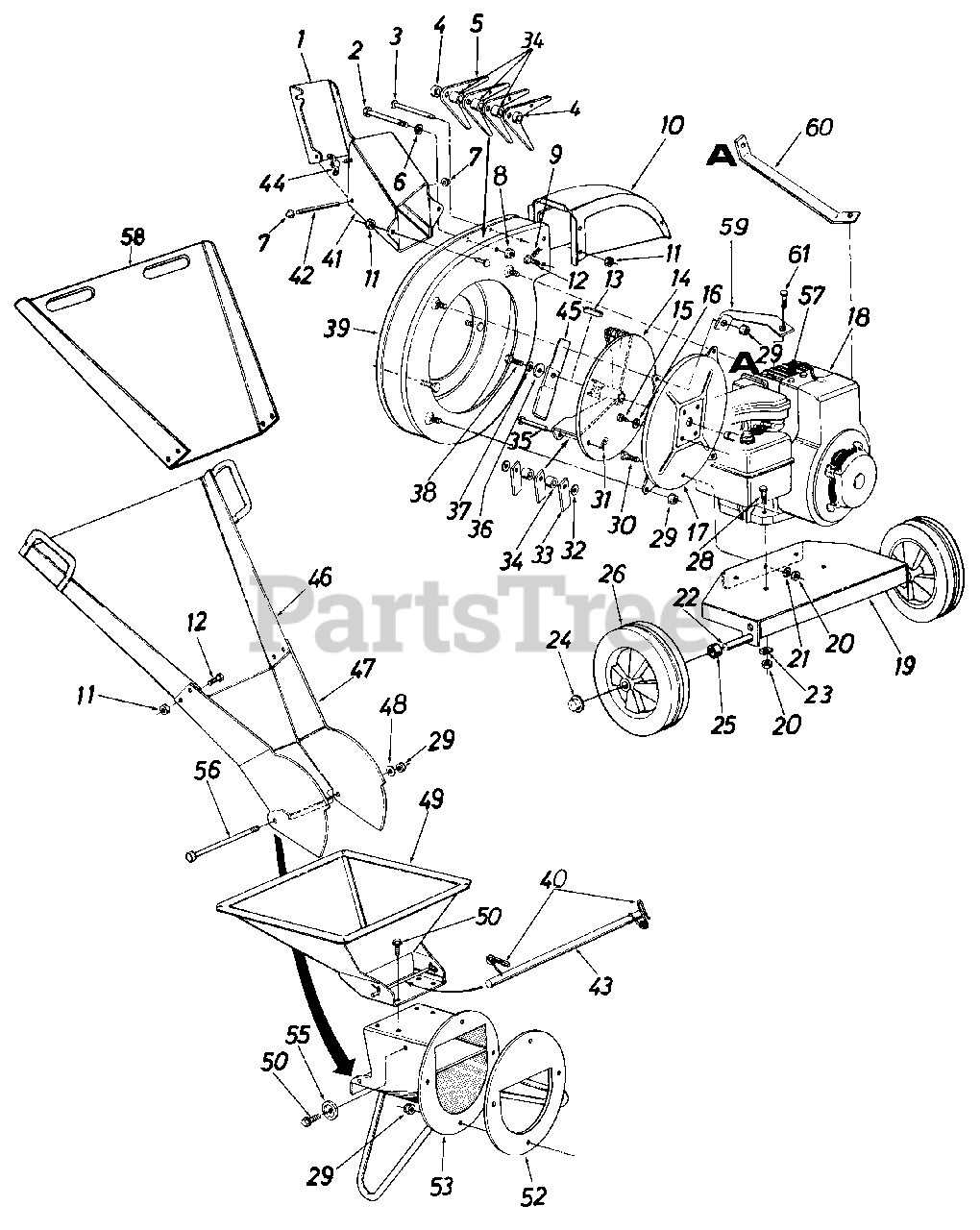

Shredder Assembly Parts Diagram

  • Title

1

11476

Door Chip It

$

$

Not available

2

White Outdoor 710-0465

Hex Bolt 1/2-2C x 4.50" Lg t

$10.99

$

In Stock, only 1 left!

0

3

White Outdoor 711-0580

Clevis Pin

$

$

Not available

4

White Outdoor 711-0579

Flail Spacer 7/32" Lg.

$

$

Not available

5

White Outdoor 11455

Cutting Finger

$

$

Not available

6

White Outdoor 736-0921

L.-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 726-0111

Palnut 3/16" Dia.

$6.49

$

Usually ships in 3-6 days

0

8

White Outdoor 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 8

0

9

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x 3/4" Lg.

$4.49

$

In Stock, only 4 left!

0

10

White Outdoor 16568

Chute Delfector

$

$

Not available

11

White Outdoor 712-0107

L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

12

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.'
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

13

White Outdoor 714-0115

Sq. Key 4" x 2.00" Lg.

$3.99

$

In Stock, only 1 left!

0

14

White Outdoor 13430

Impeller Assembly

$

$

Not available

15

White Outdoor 710-0157

Hex Bolt 5/16-24 x 314" Lg.

$3.99

$

In Stock, Qty 16

0

16

White Outdoor 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

17

14573

Hopper to Engine Mtg. Plate

$

$

Not available

18

Engine

$

$

Not available

19

Engine Mounting Plate

$

$

Not available

20

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

21

White Outdoor 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 738-0521

Shaft

$

$

Not available

23

White Outdoor 736-0170

Special L.-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

24

White Outdoor 726-0221

Push Cap

$5.99

$

In Stock, only 2 left!

0

25

White Outdoor 711-0494

Spacee

$

$

Not available

26

734-1056

Wheel Ass'y.-Comp. (White)

$

$

Not available

734-1173

Wheel Ass'y.-Camp. (Silver)

$

$

Not available

28

White Outdoor 710-0624

Hex Bolt 5/16-24 x 1.50" Lg.

$5.49

$

Usually ships in 3-6 days

0

29

White Outdoor 712-0429

Elastic Lock Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

31

White Outdoor 714-0144

Cotter Pin 1/8" Dia. x 1.00" Lg.
(Superseded to 914-0144)

Note: (Special)

$

$

Not available

32

White Outdoor 736-0192

Fl.-Wash. .531" I.D. x .937 O.D. x .09

$3.99

$

In Stock, only 2 left!

0

33

White Outdoor 11459A

Flail
(Superseded to 91459B)

$20.99

$

In Stock, Qty 20+

0

34

White Outdoor 711-0564

Spacer 23/32" Lg.
(Superseded to 911-0564)

$14.99

$

In Stock, only 2 left!

0

35

White Outdoor 711-0578

Clevis Pin .50" Dia. x 3.0" Lg.

$10.99

$

Usually ships in 3-6 days

0

36

White Outdoor 736-0237

Fl.-Wash. .406" I.D. x 1.25" O.D. Hdn.

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 736-0217

L.-Wash. 3/8" I.D. H.D.

$3.99

$

In Stock, Qty 13

0

38

White Outdoor 710-0151

Hex Bolt 3/8-24 x 2.0" Lg. H.T.

$6.99

$

In Stock, Qty 5

0

39

White Outdoor 14575

Flail Housing Ass'y.-Comp.

Variations

White Outdoor 14575-0637

No Longer Available HOUSING ASSY-FLAIL - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 732-0546

Torsion Spring .062 Dia. x 1.06 Lg.
(Superseded to 932-0546)

$4.99

$

In Stock, only 2 left!

0

41

11477

Chip-lt Guide Ass'y.

$

$

Not available

42

11478

Hinge Pin

$

$

Not available

43

White Outdoor 747-0531

Release Bar

$

$

Not available

44

White Outdoor 712-0109

Wing Nut Elastic 1/4-20 Thd.

$

$

Not available

45

White Outdoor 13431

Blade
(Superseded to 13431-0637)

Variations

White Outdoor 13431-0637

Shredder Blade, Black - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 11460

Upper Leaf Ramp Section

$

$

Not available

47

White Outdoor 16524

Lower Leaf Ramp Section

$

$

Not available

48

White Outdoor 736-0264

Fl.-Wash. 5/16" I.D.

$6.49

$

In Stock, only 1 left!

0

49

White Outdoor 11481A

Hopper Assembly

$

$

Not available

50

White Outdoor 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" 4.
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

52

White Outdoor 11454

Back-Up Plate

$

$

Not available

53

White Outdoor 16522

Inlet Guide Assembly

$

$

Not available

55

White Outdoor 11480

Stop Washer

$

$

Not available

56

White Outdoor 710-0542

Hex Bolt 5/16-28 x 8.38" Lg.

$

$

Not available

57

White Outdoor 735-0639

Spark Plug Boot lOptional

$

$

Not available

58

White Outdoor 11461B

Upper Leaf Ramp Section

Note: (Optional)

Variations

White Outdoor 11461B-0483

No Longer Available RAMP SECTION-UPR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 11461B-0498

No Longer Available RAMP SECTION-UPR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 11461B-0629

No Longer Available RAMP SECTION-UPR - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 11461B-0638

No Longer Available RAMP SECTION-UPR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 11461B-0662

No Longer Available RAMP SECTION-UPR - OYSTER GRAY (0662)

$

$

Not available

$

$

59

White Outdoor 781-0420

Impeller Hsg. Support Brace-R.H.

$

$

Not available

60

White Outdoor 781-0421

Impeller Hsg. Support Brace-L.H.

$

$

Not available

61

Part of Engine

$

$

Not available

White Outdoor 764-0199

Bag
(Superseded to 964-04022)

Note: (Not Shown)

$71.99

$

In Stock, only 4 left!

0

White Outdoor 723-0400

Safety Glasses

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0
