240-685-135 - MTD Walk-Behind Blower Vacuum (1990) (W.W. Grainger) Parts Parts Diagram

Walk-Behind Blower Vacuum

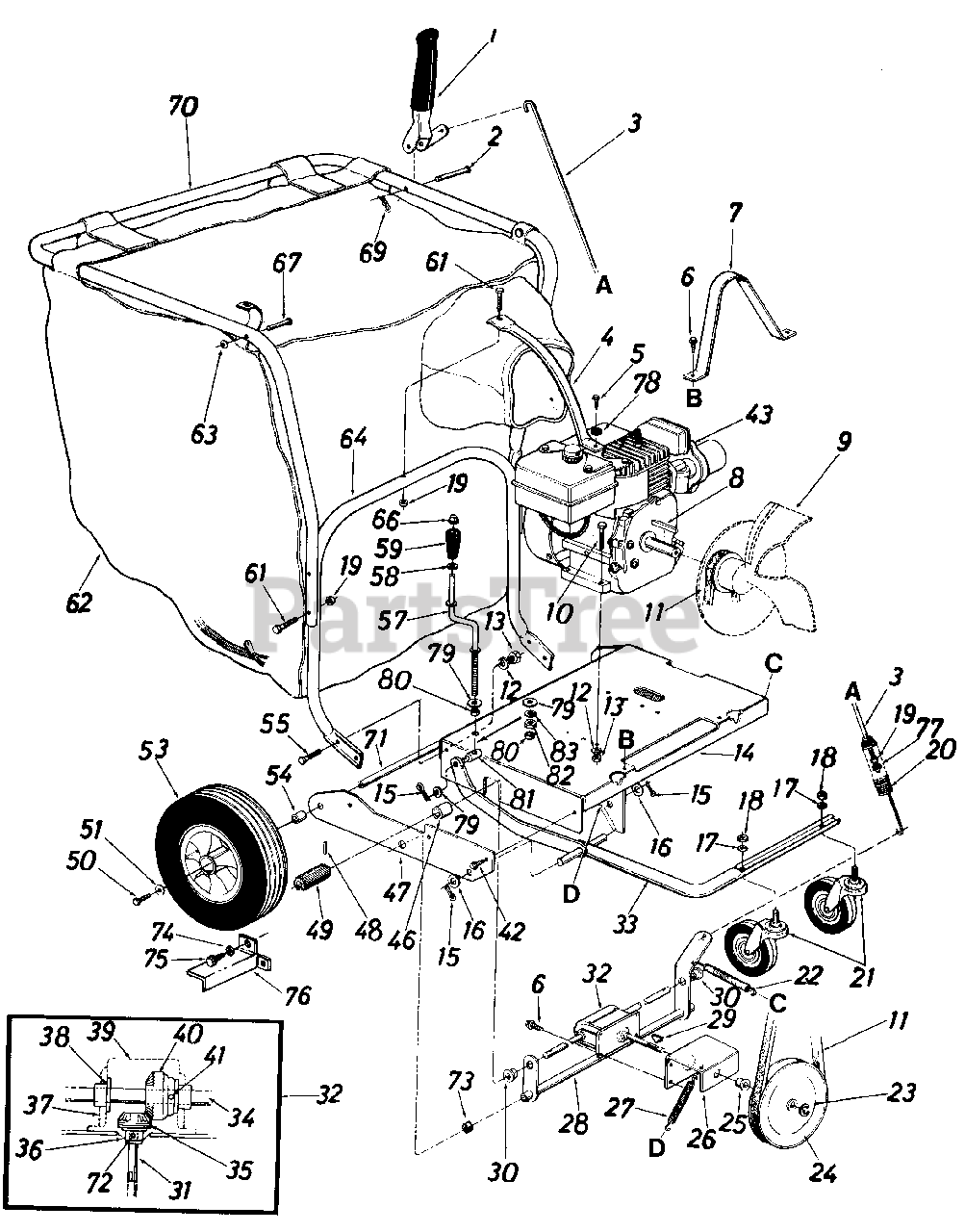

Parts Parts Diagram

  • Title
1

MTD Part# 05778

Clutch Grip Ass'y.
(Superseded to 05778B-0637)
Usually ships same day

Not available

$

$

2

MTD Part# 711-0679

Clevis Pin .375" Dia. x 1.88"
(Superseded to 711-0679A)
Usually ships in 1 day

$

$9.94

0

3

MTD Part# 747-0154

Clutch Rod 32" Lg.i
Usually ships same day

Not available

$

$

4

MTD Part# 749-0787

Handle Brace (Painted)
Usually ships same day

Not available

$

$

MTD Part# 749-0482

Handle Brace (Chrome)
(Superseded to 749-0787)
Usually ships same day

Not available

$

$

5

Part#

Part of Engine
Usually ships same day

Not available

$

$

6

MTD Part# 710-0892

Hex L.-Wash. Hd. B Tap Scr. 1/4" x .62" Lg.
(Superseded to 910-0892)
Usually ships same day

Not available

$

$

7

MTD Part# 14558

Belt Guard

Variations

MTD Part# 14558-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

8

MTD Part# 714-0114

Square Key 1/4" x 2.0" Lg.
(Superseded to 914-0114)
Usually ships in 1 day

$

$2.96

0

9

MTD Part# 14536A

Air Vane Plate Ass'y.

Note: (675)

Variations

MTD Part# 14536A-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

MTD Part# 14557A

Air Vane Plate Ass'y w/pulley

Variations

MTD Part# 14557A-0637

Air Vane Plate Ass'y. w/Pulley - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

10

MTD Part# 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.*
(Superseded to 710-0805A)
Usually ships in 1 day

$

$3.00

0

11

MTD Part# 754-0219

"V"-Belt
(Superseded to 954-0219)
Usually ships in 1 day

$

$15.42

0

12

MTD Part# 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

13

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

14

MTD Part# 16454

Engine Mounting Frame Ass'y.

Variations

MTD Part# 16454-0637

No Longer Available FRAME ASM - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 16454-0638

No Longer Available FRAME ASM - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

15

MTD Part# 714-0115

Cotter Pin 1/8" Dia. x 1.0" Lg.
(Superseded to 914-0115)
Usually ships in 1 day

$

$2.79

0

16

MTD Part# 736-0187

Fl.-Wash. .63" I.D. x 1.25" O.D.
Usually ships in 1 day

$

$3.19

0

17

MTD Part# 736-0921

L.-Wash. 1/2" I.D.*
(Superseded to 936-0921)
Usually ships same day

Not available

$

$

18

MTD Part# 712-0206

Hex Nut 1/2-13 Thd.*
(Superseded to 912-0206)
Usually ships in 1 day

$

$3.11

0

19

MTD Part# 712-0107

Hex Cent. L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)
Usually ships in 1 day

$

$3.26

0

20

MTD Part# 732-0411

Extension Spring .78" O.D. x.75" Lg.
Usually ships same day

Not available

$

$

21

MTD Part# 734-1036

Swivel Caster Wheel 5" Dia. x 1.25"
Usually ships in 5 to 10 days

$

$53.73

0

22

MTD Part# 732-0409

Extension Spring .38" O.D. x 7.50" Lg.
(Superseded to 932-0409)
Usually ships in 1 day

$

$20.68

0

23

MTD Part# 716-0104

Snap"E"-Ring .50" Dia. Shaft
(Superseded to 916-0104)
Usually ships in 1 day

$

$2.69

0

24

MTD Part# 756-0367

"V"-Pulley 5/8" x 6.50" O.D.
Usually ships same day

Not available

$

$

25

MTD Part# 748-0142

Flange Bearing .502" I.D.
Usually ships in 5 to 10 days

$

$10.68

0

26

MTD Part# 14570

Gear Box Mounting Bracket

Variations

MTD Part# 14570-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

27

MTD Part# 732-0376

Extension Spring .75" O.D. x 3.28" 4.
(Superseded to 932-0376)
Usually ships same day

Not available

$

$

28

MTD Part# 14565

Clutch Bracket Ass'y.
Usually ships same day

Currently unavailable

$

$

29

MTD Part# 714-0229

#2 Woodruff Key 3/32" Dia. x .81" Lg.
Usually ships same day

Not available

$

$

30

MTD Part# 748-0227

Hex Flange Bearing Bronze .625" I.D.
(Superseded to 948-0227A)
Usually ships in 5 to 10 days

$

$6.04

0

31

MTD Part# 738-0516

Pinion Shaft .50" Dia. x5.0"
Usually ships same day

Not available

$

$

32

MTD Part# 717-0493

Gear Box Ass'y. Comp.
Usually ships same day

Currently unavailable

$

$

33

MTD Part# 16273

Caster Arm Ass'y.

Variations

MTD Part# 16273-0483

Double Caster Arm Assembly, Black - CHARCOAL GRAY (0483)
Usually ships same day

Not available

$

$

MTD Part# 16273-0498

Double Caster Arm Assembly, Black - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 16273-0637

Double Caster Arm Assembly, Black - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 16273-0638

Double Caster Arm Assembly, Black - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

MTD Part# 16273-0648

Double Caster Arm Assembly, Black - TECH GRAY (0648)
Usually ships same day

Not available

$

$

MTD Part# 16273-0662

Double Caster Arm Assembly, Black - OYSTER GRAY (0662)
Usually ships same day

Not available

$

$

MTD Part# 16273-0674

Double Caster Arm Assembly, Black - YARDMAN YELLOW (0674)
Usually ships same day

Not available

$

$

MTD Part# 16273-0691

Double Caster Arm Assembly, Black - BLACK JACK (0691)
Usually ships same day

Not available

$

$

MTD Part# 16273-0709

Double Caster Arm Assembly, Black - MASTERCRAFT GREEN (0709)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

34

MTD Part# 08348

Drive Shaft .624" Dia. x 22.75" Lg.
Usually ships same day

Not available

$

$

35

MTD Part# 748-0136

Bevel Gear .50" I.D. x 14 Teeth
Usually ships same day

Not available

$

$

36

MTD Part# 748-0108

Flange Bearing .503" I.D.
(Superseded to 948-0108)
Usually ships in 1 day

$

$6.13

0

37

MTD Part# 08189

Gear Box
(Superseded to 753-0218)
Usually ships same day

Not available

$

$

38

MTD Part# 748-0110

Flange Bearing .630" I.D.
Usually ships in 5 to 10 days

$

$6.50

0

39

MTD Part# 08187

Gear Box Cover
Usually ships same day

Currently unavailable

$

$

40

MTD Part# 748-0135

Bevel Gear .62" I.D. x 28 Teeth
Usually ships same day

Not available

$

$

41

MTD Part# 715-0246

Spring Pin Spiral 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0246)
Usually ships in 1 day

$

$4.76

0

42

MTD Part# 710-0726

Hex Wash. Hd. "AB" Tap Scr. 5/16" x .75" Lg.
Usually ships in 1 day

$

$3.04

0

43

Part#

Engine
Usually ships same day

Not available

$

$

46

MTD Part# 748-0201

Spacer .63 I.D. x .88" O.D. x .56" Lg.
(Superseded to 948-0201)
Usually ships same day

Not available

$

$

47

MTD Part# 14530

Side Plate

Variations

MTD Part# 14530-0483

PLATE-SIDE-RH - CHARCOAL GRAY (0483)
Usually ships same day

Not available

$

$

MTD Part# 14530-0498

PLATE-SIDE-RH - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 14530-0499

PLATE-SIDE-RH - CUB BEIGE (0499)
Usually ships same day

Not available

$

$

MTD Part# 14530-0637

PLATE-SIDE-RH - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 14530-0638

PLATE-SIDE-RH - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

MTD Part# 14530-0662

No Longer Available PLATE-SIDE - OYSTER GRAY (0662)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

48

MTD Part# 715-0247

Spring Pin Spiral 3/16" Dia. x 1.0" Lg.
(Superseded to 915-0247)
Usually ships same day

Not available

$

$

49

MTD Part# 748-0288

Drive Pinion
Usually ships in 1 day

$

$17.00

0

50

MTD Part# 710-0170

Hex Locking Bolt 5/16-24 x .62" Lg.
Usually ships in 1 day

$

$4.58

0

51

MTD Part# 736-0159

Fl.-Wash. .34" I.D. x .87" O.D.
(Superseded to 936-0159)
Usually ships same day

Not available

$

$

53

MTD Part# 734-1035

Wheel Ass'y.-Comp. 12" x 3" Incl. Ball Bearings)
Usually ships in 5 to 10 days

$

$96.77

0

54

MTD Part# 750-0194

Spacer .63" I.D. x 1.0" O.D. x .94" Lg.
Usually ships in 1 day

$

$6.44

0

55

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" 4.*
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

57

MTD Part# 747-0542

Height Adjustment Crank
Usually ships in 5 to 10 days

$

$16.73

0

58

MTD Part# 736-0117

Fl.-Wash. .385" I.D. x .62" O.C
(Superseded to 936-0117)
Usually ships in 1 day

$

$4.97

0

59

MTD Part# 720-0171

Crank Knob
(Superseded to 920-0171)
Usually ships in 5 to 10 days

$

$11.03

0

61

MTD Part# 710-0136

Hex Bolt 1/4-20 x 1.75" 4.
Usually ships in 1 day

$

$2.91

0

62

MTD Part# 764-0162A

Vacuum Bag - Felt
Usually ships same day

Not available

$

$

63

MTD Part# 1539-019

Push Speed Nut .25" Dia. Stud
Usually ships in 1 day

$

$2.89

0

64

MTD Part# 749-0785

Lower Handle (Painted)

Variations

MTD Part# 749-0785-0637

HANDLE-LOWER - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

MTD Part# 749-0481

Lower Handle (Chrome)
(Superseded to 749-0785)
Usually ships same day

Not available

$

$

66

MTD Part# 726-0100

Push Nut 3/8" Dia.
(Superseded to 926-0100)
Usually ships same day

Not available

$

$

67

MTD Part# 711-0737

Stud Pin .250" Dia. x 1.75"
(Superseded to 911-0737)
Usually ships in 1 day

$

$3.31

0

69

MTD Part# 714-0145

Internal Cotter Pin 3/8" Dia.
(Superseded to 914-0145)
Usually ships same day

Not available

$

$

70

MTD Part# 749-0786

Upper Handle (Painted)
Usually ships same day

Currently unavailable

$

$

MTD Part# 749-0480

Upper Handle (Chrome)
Usually ships same day

Currently unavailable

$

$

71

MTD Part# 738-0185

Rear Axle .624" Dia. x 24.37'
Usually ships same day

Not available

$

$

72

MTD Part# 715-0249

Spring Roll Pin 5/32" Dia. x 1.12
(Superseded to 915-0249)
Usually ships in 1 day

$

$4.76

0

73

MTD Part# 750-0142

Spacer .82" I.D. x 1.0" O.D. x .305 Lg.
(Superseded to 950-0142)
Usually ships in 5 to 10 days

$

$7.63

0

74

MTD Part# 736-0175

L.-Wash. .265" I.D.
(Superseded to 936-0175)
Usually ships in 1 day

$

$2.79

0

75

MTD Part# 710-0352

Hex Self Tap Scr. 1/4" x 3/8" Lg.
Usually ships in 1 day

$

$3.24

0

76

MTD Part# 14556

R.H. Pinion Guard

Variations

MTD Part# 14556-0637

No Longer Available GUARD-PINI - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

MTD Part# 14555

L.H. Pinion Guard

Note: (Not Shown)

Variations

MTD Part# 14555-0637

No Longer Available GUARD-PINI - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

77

MTD Part# 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)
Usually ships in 1 day

$

$4.32

0

78

MTD Part# 736-0242

Belleville Washer
Usually ships in 1 day

$

$3.00

0

79

MTD Part# 736-0300

Fl.-Wash. .35" I.D. x .87" QD.
(Superseded to 936-0300)
Usually ships in 1 day

$

$3.15

0

80

MTD Part# 750-0528

Spacer .38" I.D. x .50" O.D. x .180" L.g
(Superseded to 950-0528)
Usually ships same day

Not available

$

$

81

MTD Part# 711-0797

Ferrule 3/8-8 x .38" Dia.
(Superseded to 911-0797)
Usually ships same day

Not available

$

$

82

MTD Part# 712-0354

Hex Nut 3/8-8 Thd.
(Superseded to 912-0354)
Usually ships same day

Not available

$

$

83

MTD Part# 736-0169

L.-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0
