240 R - Husqvarna String Trimmer (SN: 19984000001 - 20023100000) HANDLE & CONTROLS Parts Diagram

String Trimmer

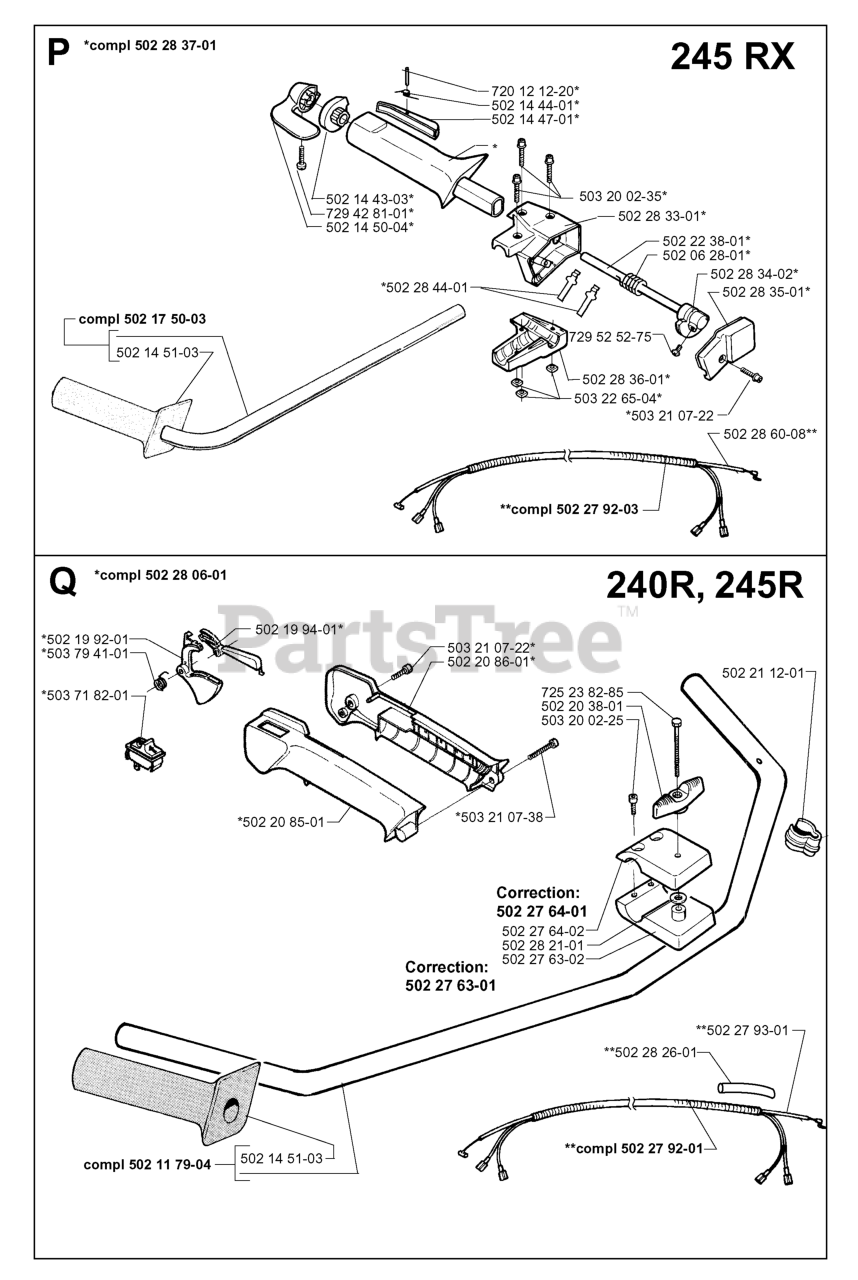

HANDLE & CONTROLS Parts Diagram

  • Title

502 14 50-04

Husqvarna 502145004

Throttle Trigger

$

$

Not available

502 14 43-03

Husqvarna 502144303

BUSHING
(Superseded to 502144306)

$

$

Not available

503 71 82-01

Husqvarna 503718201

START/STOP SWITCH

$14.99

$

In Stock, Qty 7

0

502 14 44-01

Husqvarna 502144401

SPRING

$

$

Not available

503 21 07-38

Husqvarna 503210738

SCREW

$

$

Not available

720 12 12-20

Husqvarna 720121220

PIN

$

$

Not available

502 20 38-01

Husqvarna 502203801

HANDLE

$8.99

$

In Stock, Qty 8

0

725 23 82-85

Husqvarna 725238285

%SCREW
(Superseded to 725238281)

$5.99

$

In Stock, only 3 left!

0

502 28 60-08

Husqvarna 502286008

THROTTLE CABLE

$51.99

$

Usually ships in 3-10 days

0

502 06 28-01

Husqvarna 502062801

SPRING

$11.99

$

Usually ships in 3-10 days

0

502 28 33-01

Husqvarna 502283301

TRIGGER HOUSING
(Superseded to 502283304)

$

$

Not available

502 19 92-01

Husqvarna 502199201

THROTTLE CONTROL

$8.49

$

In Stock, only 2 left!

0

502 17 50-03

Husqvarna 502175003

HANDLE
(Superseded to 502175005)

$68.99

$

Usually ships in 3-10 days

0

502 27 63-01

Husqvarna 502276301

BRACKET

$

$

Not available

502 27 93-01

Husqvarna 502279301

WIRE

$

$

Not available

502 14 47-01

Husqvarna 502144701

CATCH

$

$

Not available

502 14 51-03

Husqvarna 502145103

HANDLE
(Superseded to 502145102)

$23.99

$

Usually ships in 3-10 days

0

503 21 07-22

Husqvarna 503210722

SCREW
(Superseded to 503216722)

$3.99

$

In Stock, Qty 8

0

502 21 12-01

Husqvarna 502211201

GROMMET

$4.99

$

In Stock, only 1 left!

0

502 27 92-03

Husqvarna 502279203

CABLES COMPLETE

$

$

Not available

502 28 35-01

Husqvarna 502283501

COVER
(Superseded to 502283503)

$

$

Not available

502 28 21-01

Husqvarna 502282101

WASHER

$4.99

$

Usually ships in 3-10 days

0

502 28 37-01

Husqvarna 502283701

THROTTLE COMPLETE
(Superseded to 502283705)

$

$

Not available

503 20 02-25

Husqvarna 503200225

SCREW

$3.99

$

In Stock, Qty 13

0

502 28 06-01

Husqvarna 502280601

HANDLE ASSY
(Superseded to 502280614)

$

$

Not available

502 28 26-01

Husqvarna 502282601

TUBE

$

$

Not available

502 22 38-01

Husqvarna 502223801

SHAFT

$

$

Not available

502 20 85-01

Husqvarna 502208501

HANDLE LEFT
(Superseded to 502208507)

$29.99

$

Usually ships in 3-10 days

0

502 19 94-01

Husqvarna 502199401

THROTTLE CATCH

$7.49

$

In Stock, Qty 11

0

502 27 64-01

Husqvarna 502276401

BRACKET

$

$

Not available

502 11 79-04

Husqvarna 502117904

HANDLE
(Superseded to 502117906)

$

$

Not available

502 28 36-01

Husqvarna 502283601

RETAINER
(Superseded to 502283604)

$

$

Not available

502 28 44-01

Husqvarna 502284401

Spring

$

$

Not available

502 27 92-01

Husqvarna 502279201

HARNESS

$

$

Not available

503 79 41-01

Husqvarna 503794101

SPRING

$3.99

$

In Stock, only 3 left!

0

503 20 02-35

Husqvarna 503200235

SCREW
(Superseded to 725533755)

$4.99

$

In Stock, Qty 10

0

729 52 52-75

Husqvarna 729525275

Screw

$

$

Not available

729 42 81-01

Husqvarna 729428101

SCREW

$

$

Not available

502 27 63-02

Husqvarna 502276302

CLAMP

$

$

Not available

503 22 65-04

Husqvarna 503226504

NUT

$5.99

$

In Stock, Qty 20+

0

502 28 34-02

Husqvarna 502283402

HANDLE

$

$

Not available

502 20 86-01

Husqvarna 502208601

HANDLE RIGHT
(Superseded to 502208608)

$

$

Not available

502 27 64-02

Husqvarna 502276402

CLAMP

$

$

Not available
