240 SS (86237) - Snapper String Trimmer 240SS General Assembly Parts Diagram

String Trimmer

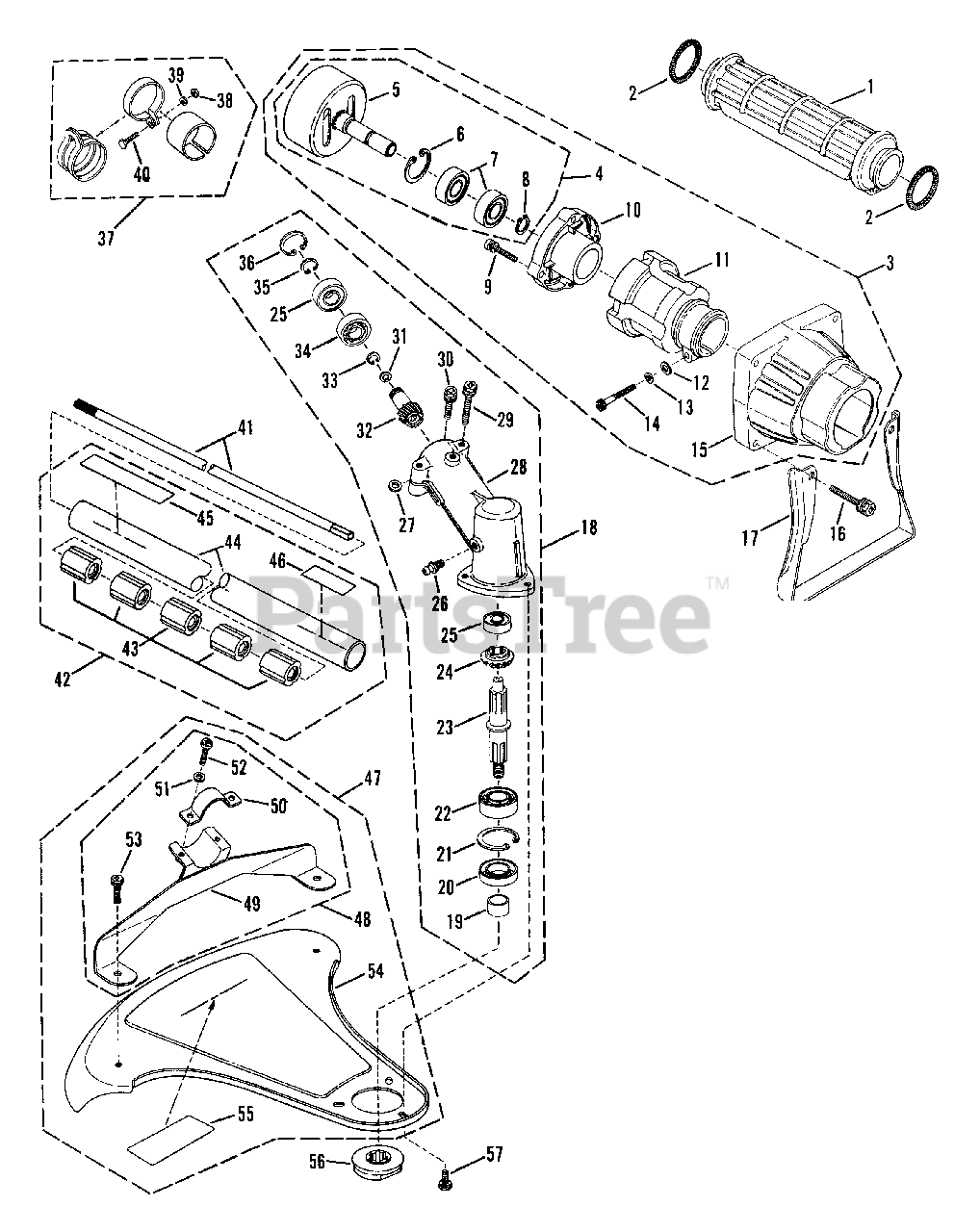

240SS General Assembly Parts Diagram

  • Title

1

Snapper 7043104

GRIP, Main Shaft

$

$

Currently unavailable

2

Snapper 7043105

SPRING, Grip

$

$

Currently unavailable

3

Snapper 7043107

CLUTCH CASE ASSM'Y.

Note: (Includes items 4 thru 15)

$

$

Currently unavailable

4

Snapper 7043111

CLUTCH DRUM ASSM'Y.
(Superseded to 7043111YP)

Note: (Includes items 5 thru 8)

$33.99

$

Usually ships in 2-12 days

0

5

Snapper 43112

DRUM, Clutch

$

$

Currently unavailable

6

Snapper 7043026

SNAP RING, 26mm

$

$

Currently unavailable

7

Snapper 7043914

BEARING

Note: Was 43126

$

$

Not available

8

Snapper 7043027

SNAP RING, 10mm

$

$

Currently unavailable

9

Snapper 7043122

SCREW, M5 x 20mm

Note: (Includes washer)

$

$

Currently unavailable

10

Snapper 7043110

CLUTCH BEARING COVER

$

$

Currently unavailable

11

Snapper 7043109

INSERT RING

$

$

Currently unavailable

12

Snapper 7043124

WASHER, Flat, M5

$

$

Currently unavailable

13

Snapper 7043923

LOCKWASHER, M5

$

$

Currently unavailable

14

Snapper 7043123

SCREW, M5 x 25mm, Socket

$

$

Currently unavailable

15

Snapper 7043108

CLUTCH CASE

$

$

Currently unavailable

16

Snapper 7043118

BOLT, M6 x 28mm Hex Hd.

$

$

Not available

17

Snapper 7043114

STAND
(Superseded to 7043114YP)

$9.49

$

Usually ships in 2-12 days

0

18

Snapper 7043005

GEAR HEAD ASSM'Y.

Note: (Includes items 19 thru 36)

$

$

Not available

19

Snapper 7043023

SPLINE SLEEVE

$

$

Currently unavailable

20

Snapper 7043912

SEAL, Oil

$

$

Not available

21

Snapper 7043917

SNAP RING, 35mm

$

$

Not available

22

Snapper 7043913

BEARING

$

$

Not available

23

Snapper 7043020

SPLINE SHAFT

$

$

Currently unavailable

24

Snapper 7043022

BEVEL GEAR

$

$

Currently unavailable

25

Snapper 7043914

BEARING

$

$

Not available

26

Snapper 7043937

FITTING, Lube

$

$

Not available

27

Snapper 7043032

SHIM

$

$

Currently unavailable

28

Snapper 7043019

GEAR CASE

$

$

Not available

29

Snapper 7043028

BOLT, M5 x 25mm Hex Hd.

$

$

Currently unavailable

30

Snapper 7043029

BOLT, M5 x 12mm Hex Hd.

$

$

Currently unavailable

31

Snapper 7043031

WASHER, Flat

$

$

Currently unavailable

32

Snapper 7043021

BEVEL PINION

$

$

Currently unavailable

33

Snapper 7043030

SNAP RING, 10mm

$

$

Currently unavailable

34

Snapper 7043025

BEARING

$

$

Currently unavailable

35

Snapper 7043027

SNAP RING, 10mm

$

$

Currently unavailable

36

Snapper 7043026

SNAP RING, 26mm

$

$

Currently unavailable

37

Snapper 7043106

HANGER, Band Assm'y.

Note: (Includes items 38, 39, & 40)

$

$

Currently unavailable

38

Snapper 7043941

NUT, M5 Hex

$

$

Currently unavailable

39

Snapper 43942

LOCKWASHER, M5

$

$

Currently unavailable

40

Snapper 7043135

BOLT, M5 x 12mm Hex Hd.

$

$

Currently unavailable

41

Snapper 7043125

SHAFT, Main (60.878" x .2756", .1969" Square End x .7874", .8465" Splined End
(Superseded to 7043125YP)

$44.99

$

Usually ships in 2-12 days

0

42

Snapper 7043101

ASSEMBLY, Tubing & Bushing's

Note: (Includes items 43 thru 46)

$

$

Currently unavailable

43

Snapper 7043103

BUSHING
(Superseded to 7043103YP)

$5.49

$

Usually ships in 2-12 days

0

44

Snapper 7043102

TUBING

$

$

Currently unavailable

45

Snapper 7043069

DECAL-SNAPPER

$

$

Currently unavailable

46

Snapper 7015169

DECAL-WARNING (Eye Protection)

$

$

Currently unavailable

47

Snapper 7043116

SHIELD-BRACE ASSM'Y.

Note: (Includes items 48 thru 55)

$

$

Currently unavailable

48

Snapper 7043133

BRACE ASSM'Y., Shield

Note: (Includes items 49 thru 53)

$

$

Currently unavailable

49

Snapper 7043129

BRACE, Shield

$

$

Currently unavailable

50

Snapper 7043128

BAND, Shield Brace

$

$

Currently unavailable

51

Snapper 7043018

WASHER, Flat

$

$

Currently unavailable

52

Snapper 7043967

SCREW, M6 x 20mm

$

$

Currently unavailable

53

Snapper 7043968

BOLT, M6 x 12mm Hex Hd.

$

$

Currently unavailable

54

Snapper 7043113

SHIELD
(Superseded to 7043113YP)

$35.99

$

Usually ships in 2-12 days

0

55

Snapper 7043996

DECAL-WARNING, Shield

$

$

Not available

56

Snapper 7015683

HOLDER

Note: Was 43007

$

$

Currently unavailable

57

Snapper 7043963

BOLT, M5 x 10mm, Hex Hd.
(Superseded to 7043963YP)

$3.49

$

Usually ships in 2-12 days

0
