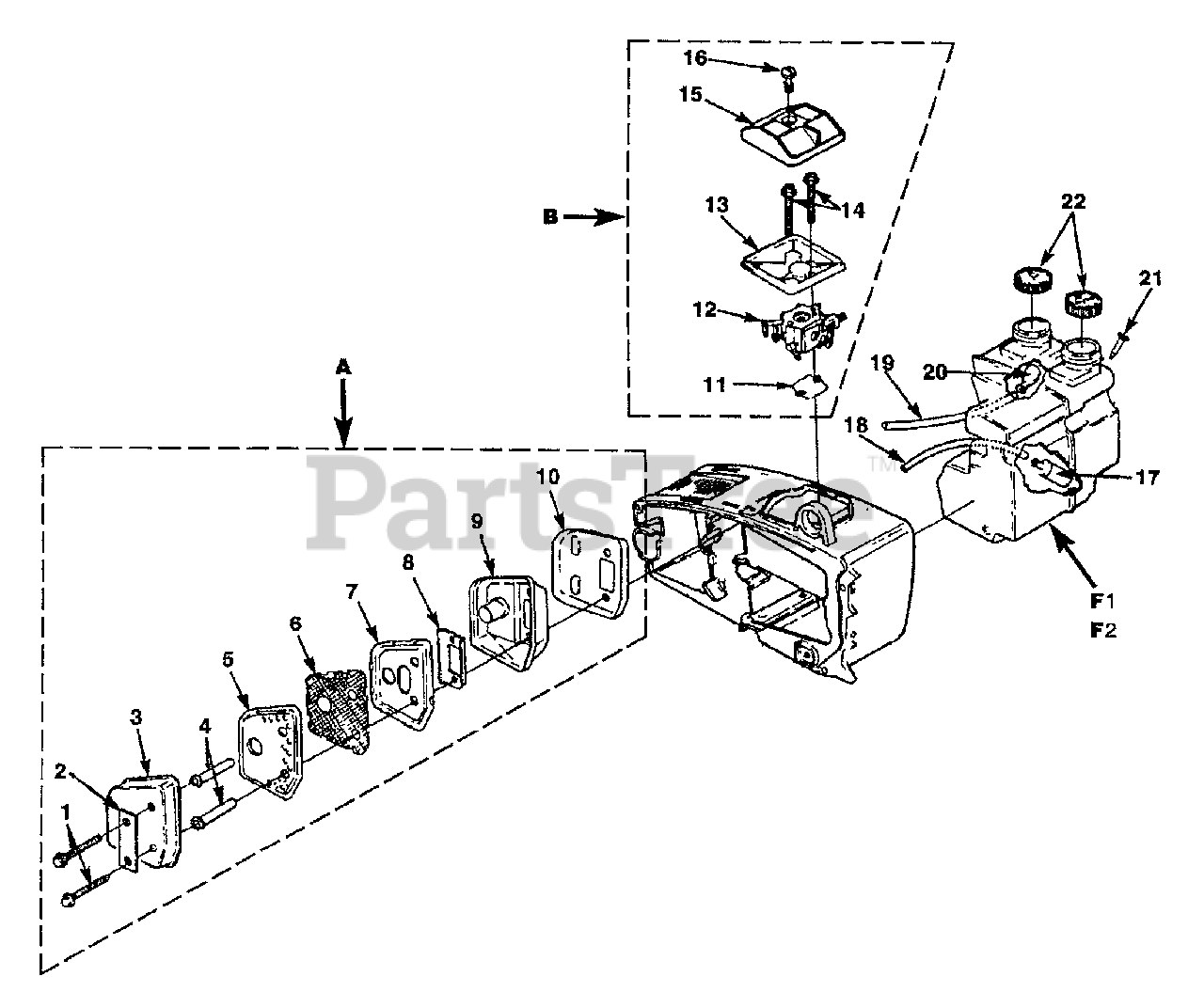

240 (UT-10588-4) - Homelite Chainsaw Muffler - Carburetor - Tank Parts Diagram

Chainsaw

Muffler - Carburetor - Tank Parts Diagram

  • Title

A

Homelite A96931

MUFFLER-Complete

$

$

Currently unavailable

1

Homelite 95005

SCREW-Mach. Sems Hex (10-24 x 2 1/16")

$

$

Not available

2

Homelite 97751

BRACKET-Muffler

$

$

Not available

3

Homelite 948871

CAP-Muffler

$

$

Not available

4

Homelite 9398308

SPACER-Muffler

$

$

Not available

5

Homelite 948811

BAFFLE-Muffler

$

$

Currently unavailable

6

Homelite 956371

SCREEN-Spark Arrester

$

$

Not available

7

Homelite 96928

BAFFLE-Muffler

$

$

Not available

8

Homelite 94889

PLATE-Muffler

$

$

Not available

9

Homelite A96930

BODY-Muffler

$

$

Not available

10

Homelite 96925

DEFLECTOR-Exhaust

$

$

Not available

B

Homelite A06438

CARBURETOR KIT

$

$

Currently unavailable

11

Homelite 95022A

GASKET-Carburetor
(Superseded to UP07444)

$

$

Not available

12

UNKNOWN

$

$

Not available

?12A

Homelite 07240

CARBURETOR-Walbro
(Superseded to A96352C)

$113.99

$

In Stock, only 1 left!

0

13

Homelite 95083

CUP-Filter

$

$

Not available

14

Homelite 96176

SCREW-Mach. Hex (10-24 X 1 5/8")

$

$

Not available

15

Homelite A96349

FILTER ELEMENT (Top)

$

$

Currently unavailable

16

Homelite 95217

SCREW-Retaining

$

$

Not available

?12B

Homelite A96352B

CARBURETOR-Zama
(Superseded to A96352C)

$113.99

$

In Stock, only 1 left!

0

F1

Homelite A02970A

TANK-Fuel & Oil

Note: (UT10625-B,C,D; UT10630-A,B,C; UT10633-A,B; UT10635-D; UT10715,C,D; UT10717-A,B,C; UT10718-A,B,C)

$

$

Currently unavailable

F2

Homelite A01162A

TANK-Fuel & Oil (UT10635-C, UT10713, A; UT10715-A,B)

$

$

Currently unavailable

17

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

18

Homelite 0745426

TUBING-Rubber (6 1/2")

$

$

Currently unavailable

19

Homelite 0745428

TUBING-Rubber (7")
(Superseded to UP04694)

$

$

Not available

20

Homelite A68593

FILTER-Oil

$

$

Not available

21

Homelite 98819

VALVE-Duck Bill

$

$

Not available

22

Homelite A97359A

CAP-Fuel & Oil
(Superseded to DA92701C)

$

$

Currently unavailable
