241 R - Husqvarna Brush Cutter (SN: 20144900001 & Above) CARBURETOR & AIR FILTER Parts Diagram

Brush Cutter

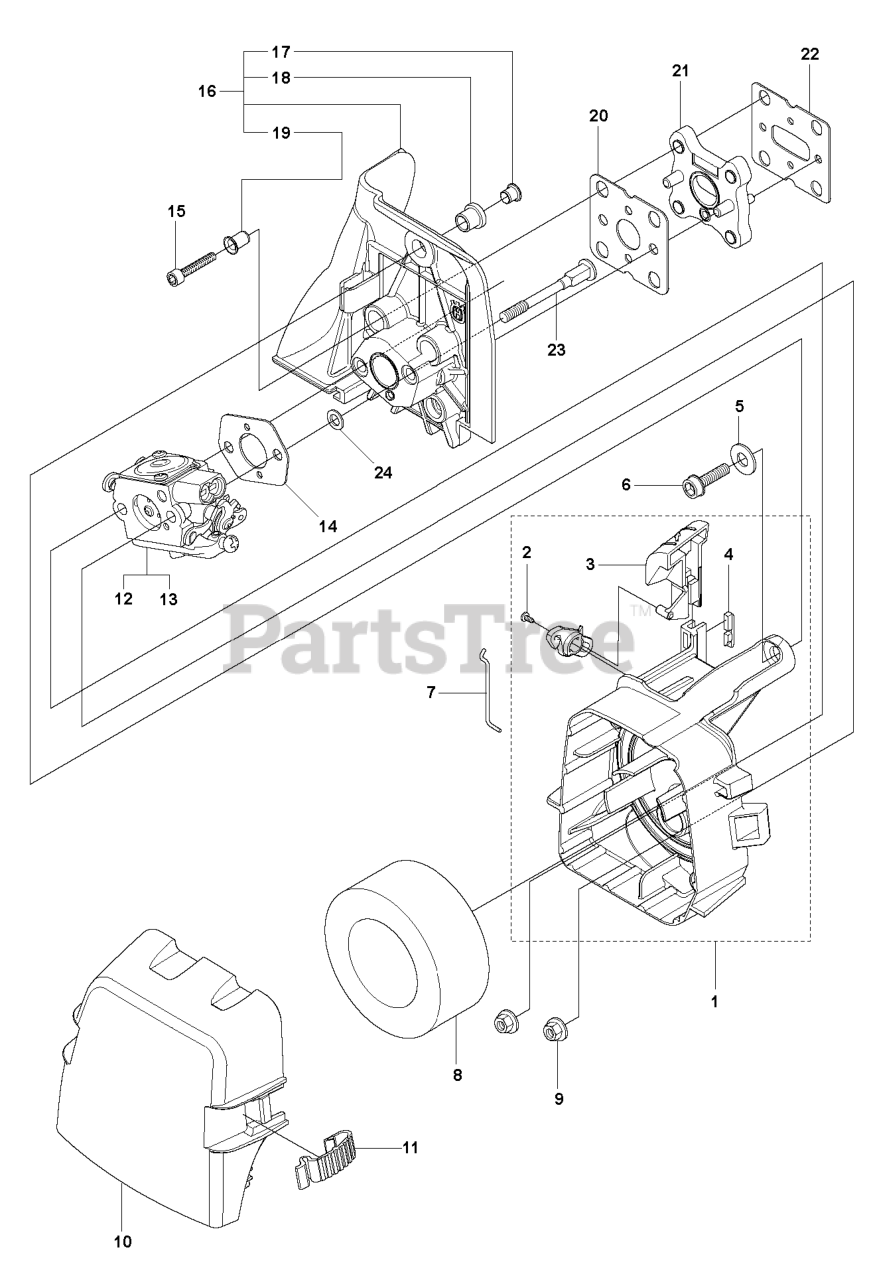

CARBURETOR & AIR FILTER Parts Diagram

  • Title

19

Husqvarna 544912901

NEEDS DESCRIPTION

$

$

Currently unavailable

6

Husqvarna 503200302

SCREW IHSCFM

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 501326901

CARBURETTOR C1Q-EL38

Note: ZAMA C1Q-EL38

$

$

Not available

20

Husqvarna 544185801

GASKET INTAKE

$

$

Not available

22

Husqvarna 544185601

GASKET INTAKE

$

$

Not available

18

Husqvarna 537371101

SLEEVE

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 544025801

RAIL

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$5.99

$

In Stock, only 3 left!

0

8

Husqvarna 544141001

NEEDS DESCRIPTION

$

$

Currently unavailable

23

Husqvarna 544082002

SCREW

$

$

Not available

1

Husqvarna 544227101

FILTER HOLDER ASSY

Note: Incl. Pos. 2-5

$

$

Not available

10

Husqvarna 544138201

FILTER COVER

$

$

Not available

9

Husqvarna 731711451

NUT

$6.49

$

In Stock, only 3 left!

0

13

Husqvarna 501327001

CARBURETTOR C1Q-EL39A

Note: ZAMA C1Q-EL39A

$

$

Not available

2

Husqvarna 503212906

SCREW

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 544915201

NEEDS DESCRIPTION

$

$

Currently unavailable

3

Husqvarna 537337101

CHOKE CONTROL

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503202525

SCREW
(Superseded to 725529701)

$2.23

$

Usually ships in 3-10 days

0

11

Husqvarna 537387201

BUCKLE

$8.99

$

In Stock, Qty 9

0

16

Husqvarna 544158601

INSULATION WALL ASSEMBLY

Note: Incl. Pos. 17-19

$

$

Not available

7

Husqvarna 544378901

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 544019101

SLEEVE

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 503497101

GASKET

$8.99

$

In Stock, Qty 20+

0

5

Husqvarna 734114741

WASHER

$4.99

$

In Stock, only 3 left!

0
