241 R - Husqvarna Brush Cutter (SN: 20144900001 & Above) CYLINDER PISTON Parts Diagram

Brush Cutter

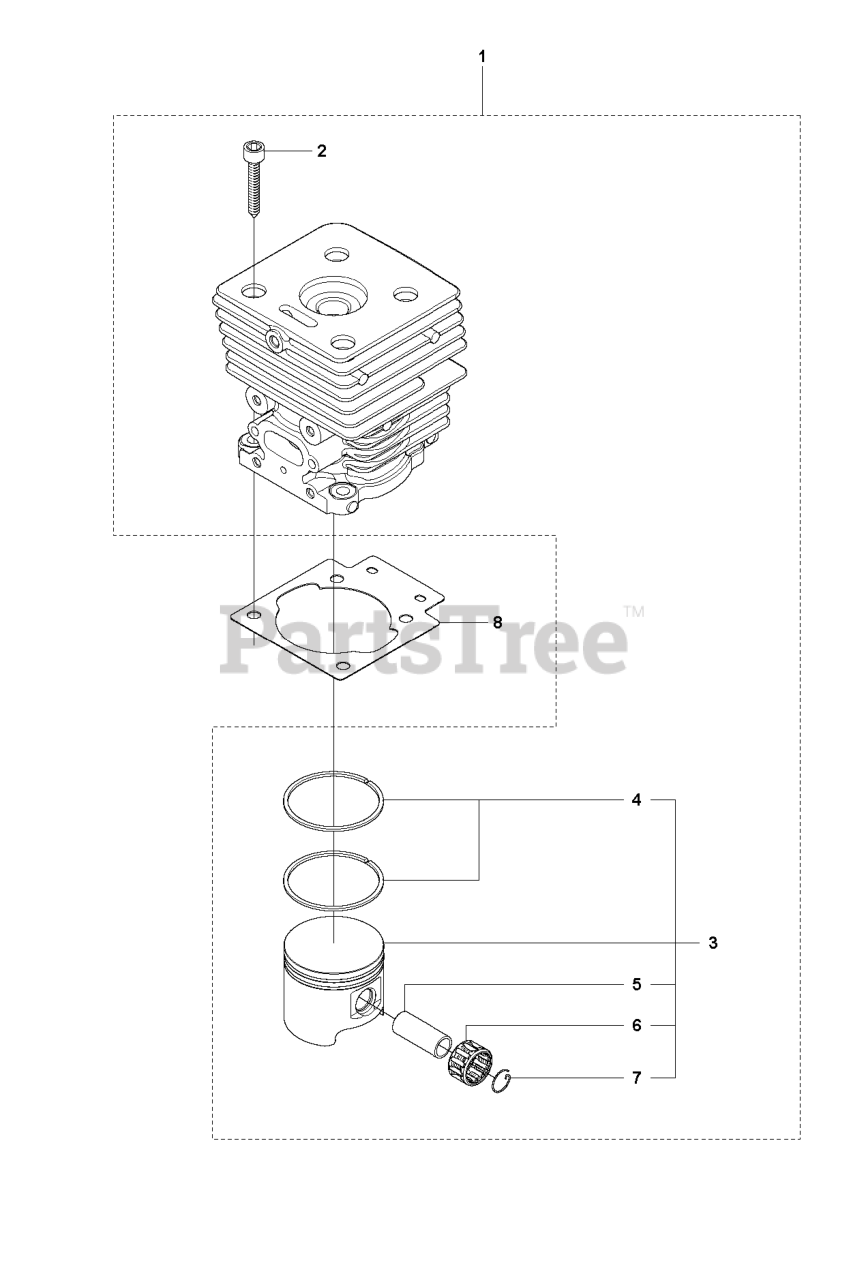

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 502243301

CYLINDER ASSY

Note: Ø=41mm Incl. Pos. 2-7

$

$

Not available

5

Husqvarna 544211201

PISTON PIN 10X7X32

$

$

Not available

8

Husqvarna 544187001

GASKET CYLINDER

$

$

Not available

2

Husqvarna 503200823

SCREW
(Superseded to 725533355)

$6.49

$

In Stock, Qty 20+

0

4

Husqvarna 544199401

PISTON RING D41X1.7X1.2

$

$

Not available

3

Husqvarna 544199302

PISTON ASSY D41 SPARE PART

Note: Incl. Pos. 4-7

$

$

Not available

7

Husqvarna 737441000

LOCKING RING

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 503256301

NEEDLE BEARING
(Superseded to 501451601)

$24.99

$

In Stock, only 3 left!

0
