242-610-190 - White Outdoor 13-Ton Log Splitter (1992) Log Splitter Parts Diagram

13-Ton Log Splitter

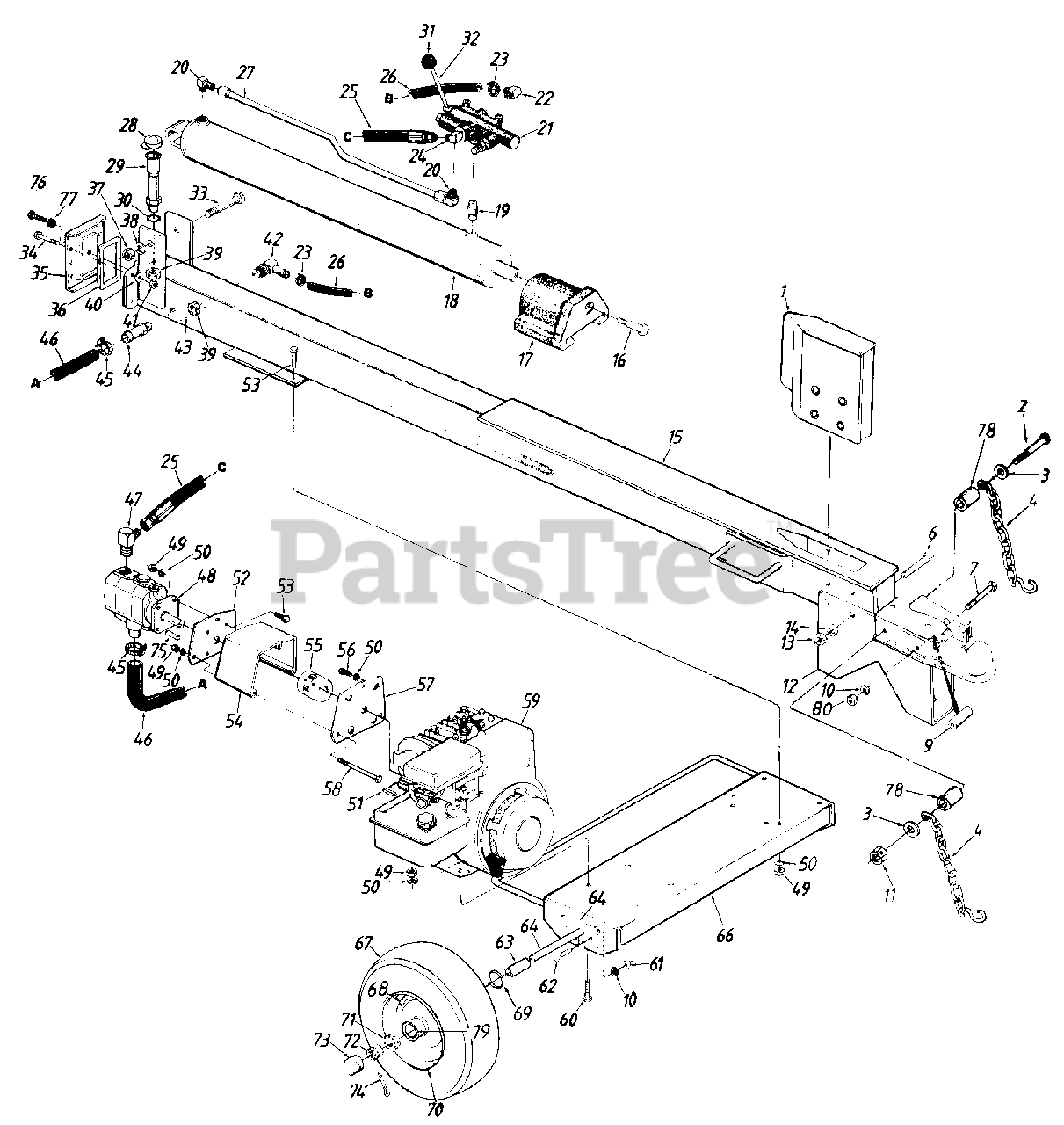

Log Splitter Parts Diagram

  • Title

1

MTD 781-0038

Wedge Ass'y.

Note: NLA

$

$

Not available

2

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg. (Gr. 5)

$13.99

$

In Stock, only 2 left!

0

3

MTD 736-0262

Fl-Wash. .375" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

4

MTD 713-0433A

Chain - Tow Hitch

$41.99

$

Usually ships in 3-6 days

0

6

MTD 710-0298

Hex Bolt 5/8-18 x 3.5" Lg.

$9.99

$

In Stock, only 2 left!

0

7

MTD 710-3130

Hex Bolt 3/8-16 x 3.25" Lg. (Gr. 8)

$9.49

$

In Stock, Qty 20+

0

8

MTD 727-0289

Tow Hitch Ass'y.

Note: NLA

$

$

Not available

9

MTD 750-0261

Spacer .375" I.D. x .625" O.D.

Note: NLA

$

$

Not available

10

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

11

MTD 912-3000

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-3000)

$3.99

$

In Stock, Qty 20+

0

12

MTD 781-0311

Beam Stand

Note: NLA

$

$

Currently unavailable

13

MTD 712-0337

Hex Nut 5/8-18 Thd.

$4.49

$

In Stock, Qty 6

0

14

MTD 936-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 15

0

15

MTD 781-0343

Oil Tank Ass'y.

Note: NLA

$

$

Not available

16

MTD 738-0601

Shld. Bolt .62" Dia. x .475"

Note: NLA

$

$

Not available

17

MTD 719-0269B

Pusher Plate

Note: NLA

$

$

Not available

18

MTD 717-1346

Hydraulic Cylinder

Note: NLA

$

$

Not available

19

MTD 737-0238

Pipe Nipple 1/2" NPT x 2" Lg.

$24.99

$

In Stock, only 1 left!

0

20

MTD 737-0192

90° Solid Male Adapter

$38.99

$

Usually ships in 3-6 days

0

21

MTD 717-1347

Control Valve

Note: NLA

$

$

Not available

22

MTD 737-0153

Return Elbow

$53.99

$

Usually ships in 3-6 days

0

23

MTD 726-0146

Adjustable Hose Clamp

$

$

Not available

24

MTD 737-0171

90° Solid Male Adapter

Note: NLA

$

$

Not available

25

MTD 727-0430

High Pressure Hydraulic Hose 29.5" Lg.

Note: NLA

$

$

Not available

26

MTD 737-0435

Return Hose 3/4" I.D. x 23-1/2" Lg.

$

$

Currently unavailable

27

MTD 727-0307

Metal Pressure Tube

Note: NLA

$

$

Not available

28

MTD 745-0174

Cap

Note: NLA

$

$

Not available

29

MTD 781-0036

Filler Tube Ass'y.

Note: NLA

$

$

Currently unavailable

30

MTD 721-0204

O-Ring .92" I.D.

Note: NLA

$

$

Not available

31

MTD 720-0231

Ball Knob

Note: NLA

$

$

Not available

32

MTD 747-0709

Control Handle

Note: NLA

$

$

Not available

33

MTD 710-1036

Hex Bolt 3/4-10 x 4.5" Lg.

Note: NLA

$

$

Currently unavailable

34

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

35

MTD 781-0361

Beam End Plate

Note: NLA

$

$

Not available

36

MTD 721-0203A

Gasket

$

$

Not available

37

MTD 712-0301

Hex Nut 3/4-10 Thd.

$7.49

$

In Stock, only 1 left!

0

38

MTD 936-0364

L-Wash. 3/4" I.D.

$

$

Not available

39

MTD 712-0338

Hex Nut 1-1/16-12 Thd.

Note: NLA

$

$

Not available

40

MTD 936-0275

Fl-Wash. .34" I.D. x .68" O.D.
(Superseded to 736-0275)

$

$

Not available

41

MTD 912-0158

Hex L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 20+

0

42

MTD 737-0259

90° Adapter 3/4" Hose

Note: NLA

$

$

Currently unavailable

43

MTD 781-0021

Strainer Tube Ass'y.

Note: NLA

$

$

Not available

44

MTD 737-0191

Adapter 1" x 1-1/16-12 Thd.

Note: NLA

$

$

Not available

45

MTD 726-0132

Hose Clamp 5/8"

$14.99

$

Usually ships in 3-6 days

0

46

MTD 727-0429

Suction Hose 1" I.D.

Note: NLA

$

$

Not available

47

MTD 737-0265

90° Adapter

$

$

Not available

48

MTD 753-05194

Two Volume Pump (Incl. Ref. 75)

$1404.99

$

In Stock, only 1 left!

0

49

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.49

$

In Stock, Qty 13

0

50

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

51

MTD 914-0122

Sq. Key 3/16 x .75" Lg.
(Superseded to 714-0122)

$

$

Not available

52

MTD 781-0097-0637

Rear Coupling Support Bracket

$64.99

$

In Stock, only 3 left!

0

53

MTD 710-0888

Hex Bolt 5/16-24 x 1.0" Lg.

$3.99

$

In Stock, Qty 11

0

54

MTD 719-0278

Coupling Shield

$67.99

$

Usually ships in 3-6 days

0

55

MTD 917-0891

Flexible Coupling

$147.99

$

Usually ships in 3-6 days

0

56

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

57

MTD 781-0098A-0637

Front Coupling Support Bracket

$40.99

$

Usually ships in 3-6 days

0

58

MTD 710-0526

Hex Bolt 5/16-24 x 4.0" Lg.

$

$

Not available

59

Engine

$

$

Not available

60

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.49

$

Usually ships in 3-6 days

0

61

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-1039

Hex Bolt 3/8-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 11

0

63

MTD 750-0442

Spacer .75" I.D. x 1.12" O.D.

Note: NLA

$

$

Not available

64

MTD 781-0018

Axle Assembly

Note: NLA

$

$

Not available

66

MTD 781-0033B

Engine Frame Ass'y.

Note: NLA

$

$

Currently unavailable

67

MTD 634-0186

Wheel Ass'y. Comp.

$337.99

$

In Stock, only 1 left!

0

67

MTD 734-0872

Tire Only

$157.99

$

Usually ships in 3-6 days

0

68

MTD 934-0255

Air Valve

$3.99

$

In Stock, Qty 20+

0

69

MTD 921-0168

Bearing Seal

$9.49

$

In Stock, Qty 18

0

70

MTD 634-0188

Rim Only

$175.99

$

Usually ships in 3-6 days

0

71

MTD 941-04298

Bearing Cone

$15.99

$

In Stock, Qty 20+

0

72

MTD 712-0299

Hex Slotted Nut 3/4-16 Thd.

Note: NLA

$

$

Currently unavailable

73

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

74

MTD 714-0162

Cotter Pin 5/32" Dia.

$4.99

$

In Stock, Qty 20+

0

75

MTD 714-3024

Hi-Pro Key 1/8" x 1/2" Lg.

Note: NLA

$

$

Not available

76

MTD 710-0604A

Hex TT-Tap Scr. 5/16-18 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

77

MTD 721-0205

Gasket Washer 5/16" I.D. x 3/4" O.D.

Note: NLA

$

$

Not available

78

MTD 750-0507

Spacer .375" I.D. x .625" O.D.
(Superseded to 750-04776)

$5.49

$

Usually ships in 3-6 days

0

79

MTD 741-3029

Bearing Cup
(Superseded to 941-04299)

$6.49

$

In Stock, Qty 20+

0

80

MTD 912-3017

Hex Nut 3/8-16 Thd. (Gr. 5)
(Superseded to 712-3017)

$3.99

$

In Stock, Qty 20+

0
