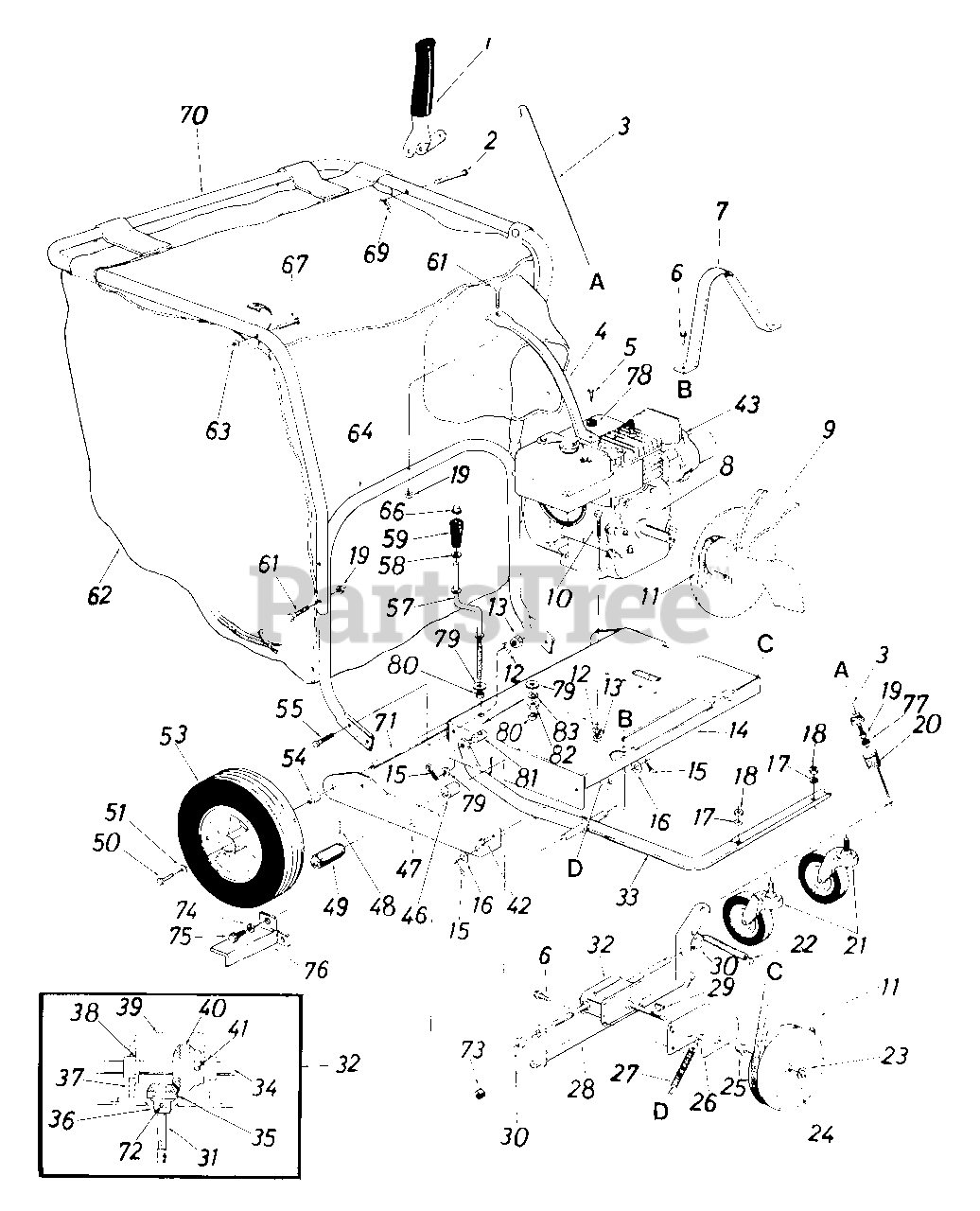

242-685-054 - Coast to Coast Walk-Behind Vacuum (1992) > Parts Diagrams (2) > Engine Mounting Assembly

  • Title
05778

1

Clutch Grip Ass'y.

Part# 05778 (Superseded to 05778B-0637)

OEM Warranty Repair Part for MTD

Not available

711-0679

2

Clevis Pin .375" Dia. x 1.88"

Part# 711-0679 (Superseded to 711-0679A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $9.19

747-0154

3

Clutch Rod 32" Lg.

Part# 747-0154

OEM Warranty Repair Part for MTD

Not available

749-0787

4

Handle Brace (Painted)

Part# 749-0787

OEM Warranty Repair Part for MTD

Not available

749-0482

Handle Brace (Chrome)

Part# 749-0482 (Superseded to 749-0787)

OEM Warranty Repair Part for MTD

Not available

5

Part of Engine

Part#

Not available

710-0892

6

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.

Part# 710-0892 (Superseded to 910-0892)

OEM Warranty Repair Part for MTD

Not available

14558

7

Belt Guard

Part# 14558

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

714-0114

8

Square Key 1/4" x 2" Lg.

Part# 714-0114 (Superseded to 914-0114)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

145364

9

Air Vane Plate Ass'y. (675 and 677)

Part# 145364

OEM Warranty Repair Part for MTD

Currently unavailable

14557A

Air Vane Plate Ass'y. w/Pulley

Part# 14557A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Air Vane Plate Ass'y. w/Pulley

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

710-0442

10

Hex Bolt 5/16-18 x 1.5" Lg.

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

754-0219

11

"V"-Belts

Part# 754-0219 (Superseded to 954-0219)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.26

736-0119

12

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0267

13

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

16454

14

Engine Mounting Frame Ass'y.

Part# 16454

Note: Code 638

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available FRAME ASM

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available FRAME ASM

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

714-0115

15

Cotter Pin 1/8" Dia. x 1" Lg.

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.58

736-0187

16

Fl-Wash. .63" I.D. x 1.25" O.D.

Part# 736-0187

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0921

17

L-Wash. 1/2" I.D.

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0206

18

Hex Nut 1/2-13 Thd.

Part# 712-0206 (Superseded to 912-0206)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.89

712-0107

19

Hex Cent. L-Nut 1/4-20 Thd.

Part# 712-0107 (Superseded to 912-0107)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

732-0411

20

Extension Spring .78" O.D. x .75" Lg.

Part# 732-0411

OEM Warranty Repair Part for MTD

Not available

734-1036

21

Swivel Caster Wheel 5" Dia. x 1.25"

Part# 734-1036

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $49.66

732-0409

22

Extension Spring .38" O.D. x 7.50" Lg.

Part# 732-0409 (Superseded to 932-0409)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $19.11

716-0104

23

Snap "E"-Ring .50" Dia. Shaft

Part# 716-0104 (Superseded to 916-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.50

756-0367

24

"V"-Pulley 5/8" x 6.50" O.D.

Part# 756-0367

OEM Warranty Repair Part for MTD

Not available

748-0142

25

Flange Bearing .502" I.D.

Part# 748-0142

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.87

14570

26

Gear Box Mounting Brackets

Part# 14570

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

732-0376

27

Extension Spring .75" O.D. x 3.28" Lg.

Part# 732-0376 (Superseded to 932-0376)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.24

14565

28

Clutch Bracket Ass'y.

Part# 14565

OEM Warranty Repair Part for MTD

Currently unavailable

714-0229

29

#2 Woodruff Key 3/32" Dia. x .81" Lg.

Part# 714-0229

OEM Warranty Repair Part for MTD

Not available

748-0227A

30

Hex Flange Bearing Bronze .625" I.D.

Part# 748-0227A (Superseded to 948-0227A)

Note: New Part

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.58

738-0516

31

Pinion Shaft .50" Dia. x 5"

Part# 738-0516

OEM Warranty Repair Part for MTD

Not available

717-0493

32

Gear Box Ass'y. Comp.

Part# 717-0493

OEM Warranty Repair Part for MTD

Currently unavailable

16273

33

Caster Arm Ass'y.

Part# 16273

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

ARM ASM-DBL CASTER

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.98

OLD CUB YELLOW (0498)

ARM ASM-DBL CASTER

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.98

POWDER BLACK (0637)

ARM ASM-DBL CASTER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.98

MTD/TROY-BILT RED (0638)

ARM ASM-DBL CASTER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.98

TECH GRAY (0648)

ARM ASM-DBL CASTER

Part# TECH GRAY (0648)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.98

OYSTER GRAY (0662)

ARM ASM-DBL CASTER

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.98

YARDMAN YELLOW (0674)

ARM ASM-DBL CASTER

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.98

BLACK JACK (0691)

ARM ASM-DBL CASTER

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.98

MASTERCRAFT GREEN (0709)

ARM ASM-DBL CASTER

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.98

08348

34

Drive Shaft

Part# 08348

OEM Warranty Repair Part for MTD

Not available

748-0136

35

Bevel Gear .50" I.D. x 14 Teeth

Part# 748-0136

OEM Warranty Repair Part for MTD

Not available

748-0108

36

Flange Bearing .503" I.D.

Part# 748-0108 (Superseded to 948-0108)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.66

08189

37

Gear Box

Part# 08189 (Superseded to 753-0218)

OEM Warranty Repair Part for MTD

Not available

748-0110

38

Flange Bearing .630" I.D.

Part# 748-0110

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.00

08187

39

Gear Box Cover

Part# 08187

OEM Warranty Repair Part for MTD

Currently unavailable

748-0135

40

Bevel Gear .62" I.D. x 28 Teeth

Part# 748-0135

OEM Warranty Repair Part for MTD

Not available

715-0246

41

Spring Pin Spiral 3/16" Dia. x 1.25" Lg.

Part# 715-0246 (Superseded to 915-0246)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

710-0726

42

Hex Wash. Hd. AB-Tap Scr. 5/16" x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

43

Engine

Part#

Not available

748-0201

46

Spacer .63" I.D. x .88" 0 D. x 56" Lg

Part# 748-0201 (Superseded to 948-0201)

OEM Warranty Repair Part for MTD

Not available

14530

47

Side Plate

Part# 14530

Note: Code 638

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

PLATE-SIDE-RH

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

OLD CUB YELLOW (0498)

PLATE-SIDE-RH

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

CUB BEIGE (0499)

PLATE-SIDE-RH

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

PLATE-SIDE-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

PLATE-SIDE-RH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

No Longer Available PLATE-SIDE

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

715-0247

48

Spring Pin Spiral 3/16" Dia. x 1" Lg

Part# 715-0247 (Superseded to 915-0247)

OEM Warranty Repair Part for MTD

Not available

748-0288

49

Drive Pinion

Part# 748-0288

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.71

710-0170

50

Hex Locking Bolt 5/16-24 x .62" Lg.

Part# 710-0170

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.24

736-0159

51

Fl-Wash. .34" I.D. x.87" O.D.

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

734-1035

53

Wheel Ass'y. Comp. 12" x 3"

Part# 734-1035

Note: (Incl. Ball Bearings)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $89.48

734-1184

Wheel Ass'y. Comp. 10.5" x 4"

Part# 734-1184 (Superseded to 634-0147)

Note: For model (677 Only)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $117.19

741-0313

Bearings

Part# 741-0313 (Superseded to 741-0487C)

Note: For model (677 Only)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.04

750-0194

54

Spacer .63" I.D. x 1.0" 0 D. x .94" Lg.

Part# 750-0194

Note: For models (675, 685, 687)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.37

748-0192

Spacer .63" I.D. x .878" O.D. x.79" Lg.

Part# 748-0192

Note: For model (677)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.37

710-0118

55

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

747-0542

57

Height Adjustment Crank

Part# 747-0542

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.47

736-0117

58

Fl-Wash. .385" I.D. x .62" O.D.

Part# 736-0117 (Superseded to 936-0117)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.60

720-0171

59

Crank Knob

Part# 720-0171 (Superseded to 920-0171)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.19

710-0136

61

Hex Bolt 1/4-20 x 1.75" Lg.

Part# 710-0136

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.69

764-0162A

62

Vacuum Bag - Felt

Part# 764-0162A

OEM Warranty Repair Part for MTD

Not available

1539-019

63

Push Speed Nut .25" Dia. Stud

Part# 1539-019

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

749-0785

64

Lower Handle (Painted)

Part# 749-0785

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

HANDLE-LOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $63.66

749-0481

Lower Handle (Chrome)

Part# 749-0481 (Superseded to 749-0785)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $63.66

726-0100

66

Push Nut 3/8" Dia.

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

711-0737

67

Stud Pin .250" Dia. x 1.75"

Part# 711-0737 (Superseded to 911-0737)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.07

714-0145

69

Internal Cotter Pin 3/8" Dia.

Part# 714-0145 (Superseded to 914-0145)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.24

749-0786

70

Upper Handle (Painted)

Part# 749-0786

OEM Warranty Repair Part for MTD

Currently unavailable

749-0480

Upper Handle (Chrome)

Part# 749-0480

OEM Warranty Repair Part for MTD

Currently unavailable

738-0185

71

Rear Axle

Part# 738-0185

OEM Warranty Repair Part for MTD

Not available

715-0249

72

Spring Roll Pin 5/32" Dia. x 1.121

Part# 715-0249 (Superseded to 915-0249)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

750-0142

73

Spacer .82" I.D. x 1.0" 0 D. x .305 Lg

Part# 750-0142 (Superseded to 950-0142)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.07

736-0175

74

L-Wash . .265" I.D.

Part# 736-0175 (Superseded to 936-0175)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.58

710-0352

75

Hex Self-Tap Scr. 1/4" x 3/8" Lg

Part# 710-0352

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

14556

76

R.H. Pinion Guard

Part# 14556

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available GUARD-PINI

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

14555

L.H. Pinion Guard

Part# 14555

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available GUARD-PINI

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

712-0298

77

Hex Jam Nut 1/4-20 Thd.

Part# 712-0298 (Superseded to 912-0298)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.00

736-0242

78

Belleville Washer

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

736-0300

79

Fl-Wash. .35" I.D. x.87" O.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

750-0528

80

Spacer .38" I.D. x .50" 0 D. x .18" Lg.

Part# 750-0528 (Superseded to 950-0528)

OEM Warranty Repair Part for MTD

Not available

711-0797

81

Ferrule 3/8-8 x .38" Dia.

Part# 711-0797 (Superseded to 911-0797)

OEM Warranty Repair Part for MTD

Not available

712-0354

82

Hex Nut 3/8-8 Thd.

Part# 712-0354 (Superseded to 912-0354)

OEM Warranty Repair Part for MTD

Not available

736-0169

83

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47
