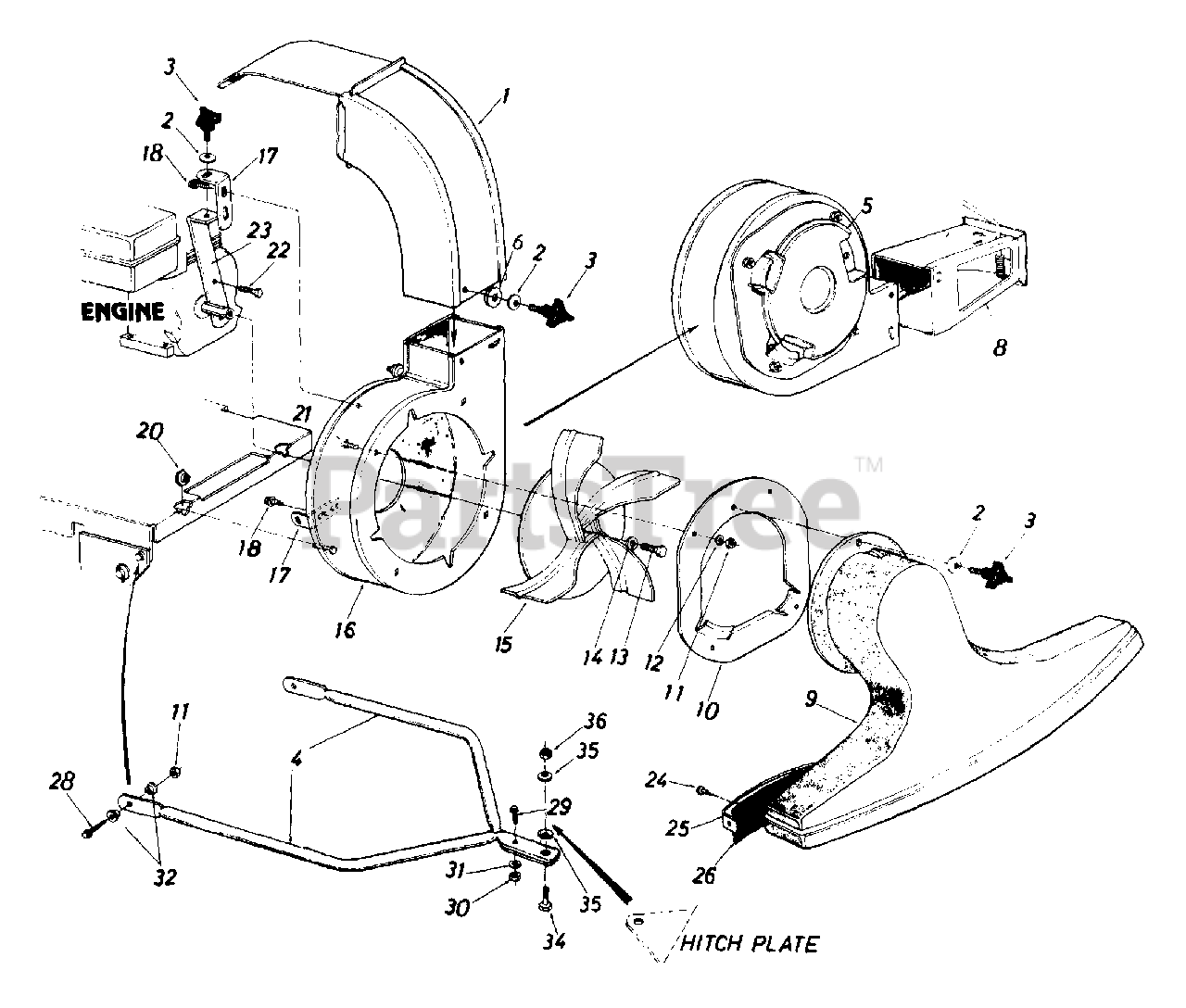

242-685-190 - White Outdoor Walk-Behind Vacuum, 5hp (1992) > Parts Diagrams (2) > Nozzle Ass'y & Blower Housing

  • Title
14532

1

Air Duct Assembly

Part# 14532

OEM Warranty Repair Part for White Outdoor

Variations

OLD CUB YELLOW (0498)

No Longer Available

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

No Longer Available DUCT-AIR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

No Longer Available

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

736-0242

2

Belleville Wash. .34" I.D. x .87" O.D.

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

720-0170

3

Hand Knob

Part# 720-0170

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.89

749-0501

4

Tow Bar Half

Part# 749-0501

Note: Optional part

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available TOW BAR-HALF

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

731-0608

5

Impeller Guard

Part# 731-0608

OEM Warranty Repair Part for White Outdoor

Not available

736-0231

6

Fl-Wash. .344" I.D. x 1.125" O.D.

Part# 736-0231 (Superseded to 936-0231)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

14479

8

Directional Discharge Ass'y.

Part# 14479

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

DISCHARGE ASSY

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

OLD CUB YELLOW (0498)

DISCHARGE ASSY

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

DISCHARGE ASSEMBLY BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

DIRECTIONAL DISCHARGE ASSY RED

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

DISCHARGE ASSY

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

DISCHARGE ASSEMBLY BLACK

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

DIRECTIONAL DISCHARGE ASSY

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

MASTERCRAFT GREEN (0709)

DISCHARGE ASSY

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for White Outdoor

Not available

14562B

9

Nozzle Ass'y. (Black)

Part# 14562B

OEM Warranty Repair Part for White Outdoor

Not available

731-1123

Nozzle Ass'y. (Beige)

Part# 731-1123

OEM Warranty Repair Part for White Outdoor

Not available

14563

10

Nozzle Plate Ass'y.

Part# 14563 (Superseded to 14563A)

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

11

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

12

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

710-0191

13

Hex Bolt 3/8-24 x 1.25" Lg.

Part# 710-0191

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

736-0217

14

L-Wash. 3/8" I.D. H.D.

Part# 736-0217 (Superseded to 936-0217)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

14536

15

Air Vane Plate Ass'y.

Part# 14536

Note: (675 and 677)

OEM Warranty Repair Part for White Outdoor

Not available

14557A

Air Vane Plate Ass'y. w/Pulley

Part# 14557A

Note: (685, 689 and 687)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE ASSY-VANE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

14496A

16

Blower Housing Complete

Part# 14496A

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

HOUSING ASSY-BLOWER

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

OLD CUB YELLOW (0498)

HOUSING ASSY-BLOWER

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

HOUSING ASSY-BLOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

HOUSING ASSY-BLOWER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

HOUSING ASSY-BLOWER

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

HOUSING ASSY-BLOWER

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

HOUSING ASSY-BLOWER

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

MASTERCRAFT GREEN (0709)

HOUSING ASSY-BLOWER

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for White Outdoor

Not available

14541

17

Right Angle Bracket

Part# 14541

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-RIGHT ANGLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0600

18

Hex Self-Tap Scr. 5/16-18 x .50" Lg.

Part# 710-0600

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

711-0758

20

Hex Shoulder Nut .50 I.D.

Part# 711-0758 (Superseded to 911-0758)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.03

710-0260

21

Carriage Bolt 5/16-18 x .62"

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.98

710-0627

22

Hex Locking Bolt 5/16-24 x .75" Lg.

Part# 710-0627

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

14539

23

Housing - Engine Brace Ass'y.

Part# 14539

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HOUSING-ENG BRACE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

728-0173

24

Pop Rivet

Part# 728-0173 (Superseded to 928-0173)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.90

14569

25

Wiper Retaining Strip

Part# 14569

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available WIPER RETAIN STRIP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

735-0214

26

Nozzle Wiper

Part# 735-0214

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.24

710-0602

28

Hex Bolt 5/16-18 x 1.00" Lg.

Part# 710-0602

Note: Optional part

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.21

710-0255

29

Truss Mach. Scr. 1/4-20 x .75"

Part# 710-0255 (Superseded to 710-0924)

Note: Optional part

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

712-0287

30

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

Note: Optional part

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

31

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

Note: Optional part

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

748-0234

32

Shoulder Spacer

Part# 748-0234

Note: Optional part

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

738-0143

34

Shld. Bolt .496 Dia.

Part# 738-0143

Note: Optional part

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

736-0219

35

Belleville Wash. .39" I.D. x 1.12" O.D.

Part# 736-0219 (Superseded to 936-0219)

Note: Optional part

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

712-0181

36

Hex Jam L-Nut 3/8-26 Thd.

Part# 712-0181 (Superseded to 912-0181)

Note: Optional part

OEM Warranty Repair Part for White Outdoor

Not available
