242 - Husqvarna Chainsaw (SN: 19900100001 - 19941400000) CHAIN BRAKE Parts Diagram

Chainsaw

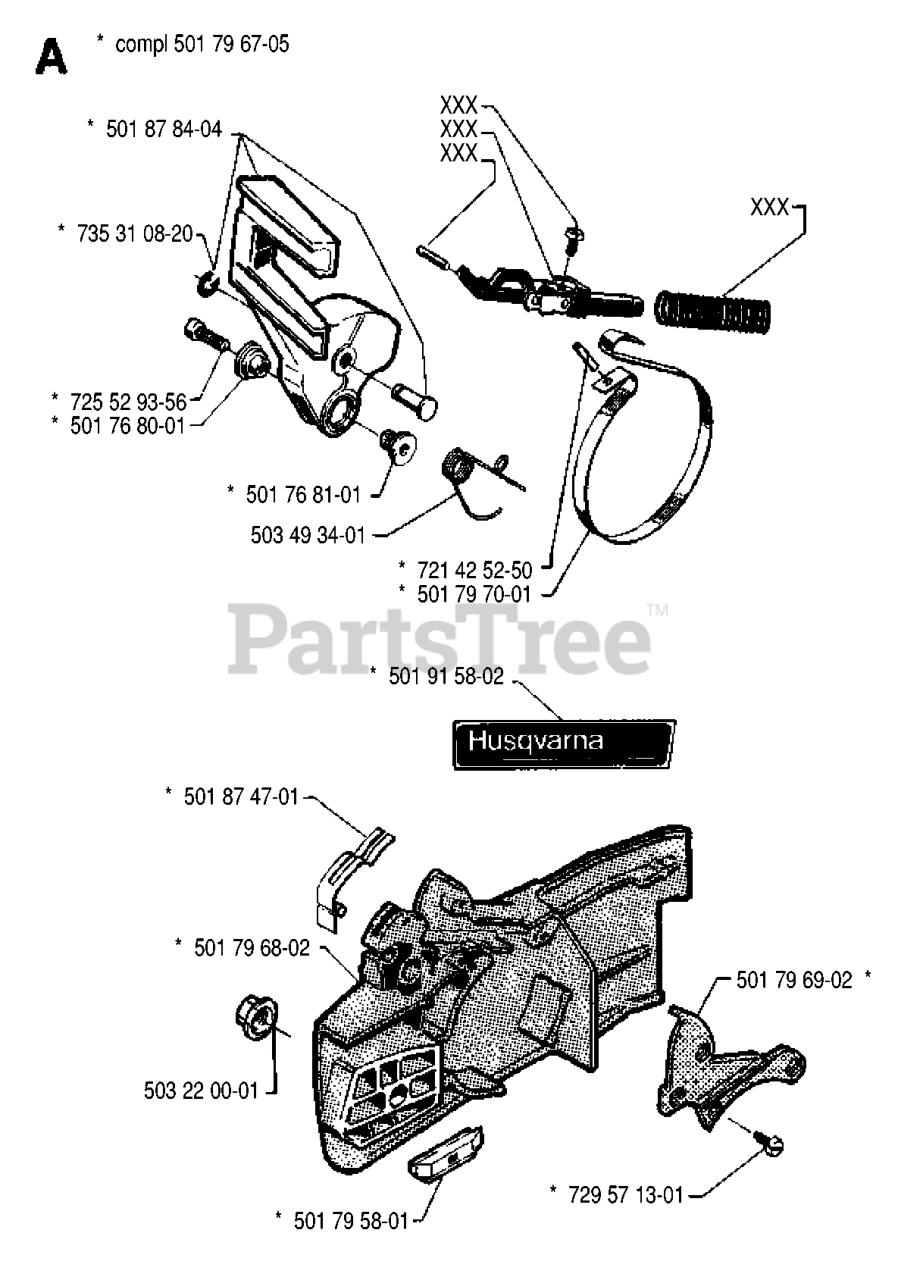

CHAIN BRAKE Parts Diagram

  • Title

729 57 13-01

Husqvarna 729571301

SCREW
(Superseded to 729571305)

$3.99

$

In Stock, Qty 20+

0

501 79 69-02

Husqvarna 501796902

COVER

$

$

Not available

721 42 52-50

Husqvarna 721425250

SPIRAL PIN 4X12

$5.99

$

In Stock, Qty 7

0

501 76 80-01

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 13

0

501 76 81-01

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available

503 49 34-01

Husqvarna 503493401

LOCK SPRING

$

$

Not available

501 79 68-02

Husqvarna 501796802

$

$

Currently unavailable

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

501 79 70-01

Husqvarna 501797001

BRAKE BAND

$

$

Not available

501 87 47-01

Husqvarna 501874701

SPRING

$7.99

$

In Stock, Qty 14

0

725 52 93-56

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, Qty 5

0

501 79 67-05

Husqvarna 501796705

CHAINBRAKE
(Superseded to 501796708)

$

$

Not available

501 79 58-01

Husqvarna 501795801

GUIDE

$8.99

$

In Stock, only 2 left!

0

501 87 84-04

Husqvarna 501878404

HANDGUARD
(Superseded to 503892701)

$62.99

$

In Stock, only 1 left!

0

735 31 08-20

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

501 91 58-02

Husqvarna 501915802

REPL BY 501 91 58-04
(Superseded to 501915804)

$

$

Not available
