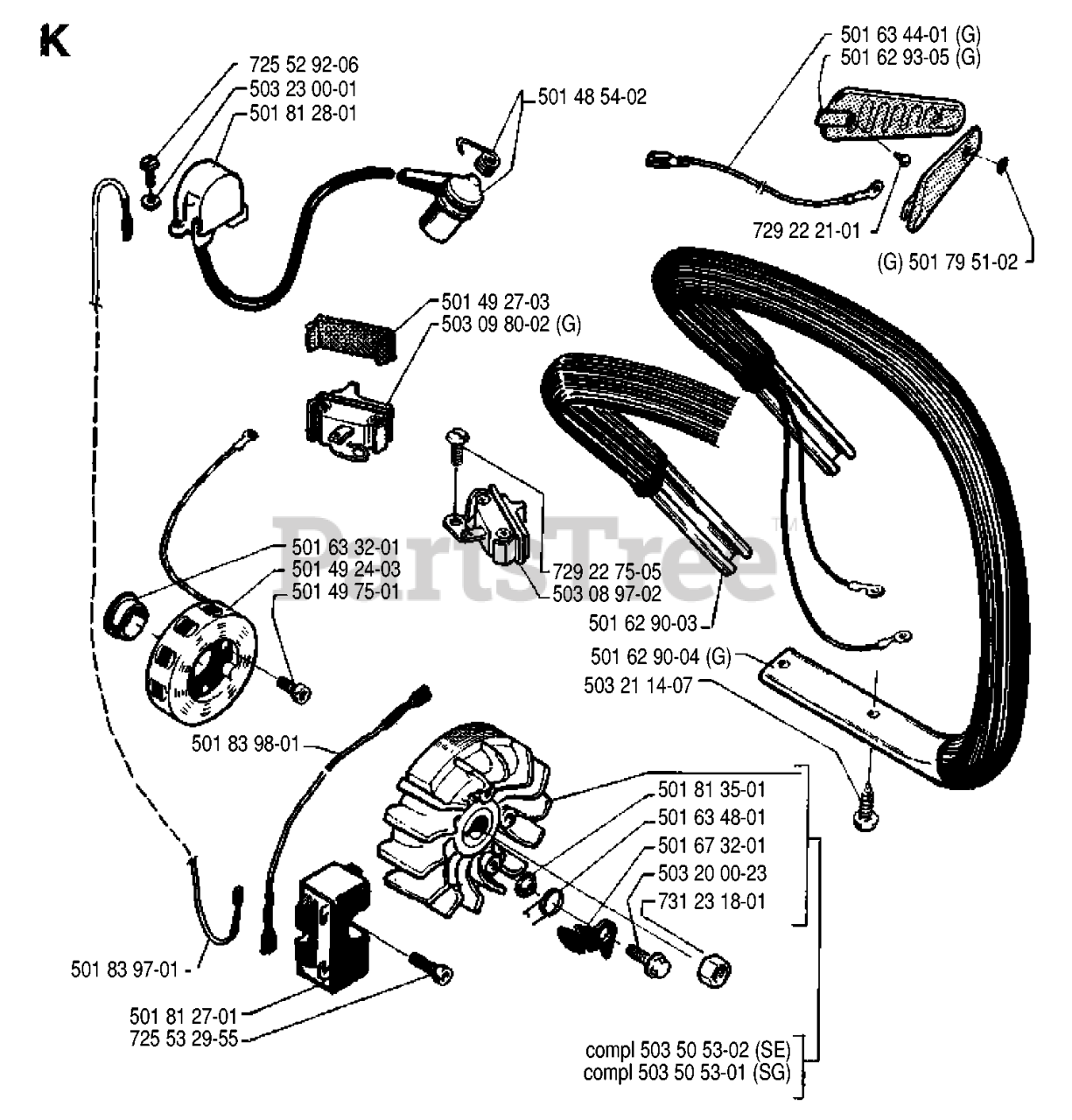

242 - Husqvarna Chainsaw (SN: 19900100001 - 19941400000) ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

503 08 97-02

Husqvarna 503089702

SWITCH
(Superseded to 503717901)

$17.99

$

In Stock, Qty 20+

0

729 22 21-01

Husqvarna 729222101

SCREW CSK B4X6

$

$

Not available

503 50 53-02

Husqvarna 503505302

FLYWHEEL
(Superseded to 503730601)

Note: SE

$

$

Not available

503 23 00-01

Husqvarna 503230001

WASHER 4.2X9

$5.99

$

Usually ships in 3-10 days

0

501 63 44-01

Husqvarna 501634401

CABLE

Note: G

$

$

Not available

501 81 35-01

Husqvarna 501813501

SPACER

$

$

Not available

501 79 51-02

Husqvarna 501795102

WASHER

Note: G

$4.99

$

In Stock, only 1 left!

0

725 52 92-06

Husqvarna 725529206

SCREW MC6S 4X14
(Superseded to 725529356)

$5.99

$

In Stock, Qty 5

0

501 81 27-01

Husqvarna 501812701

ELECTRONIC BOX

$

$

Not available

501 49 75-01

Husqvarna 501497501

SCREW

$

$

Not available

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

501 49 27-03

Husqvarna 501492703

COVER

$9.49

$

In Stock, Qty 6

0

503 09 80-02

Husqvarna 503098002

SWITCH
(Superseded to 503718101)

Note: G

$31.99

$

Usually ships in 3-10 days

0

501 49 24-03

Husqvarna 501492403

GENERATOR

$

$

Not available

501 63 32-01

Husqvarna 501633201

GUIDE SLEEVE

$

$

Not available

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$12.99

$

In Stock, Qty 20+

0

501 67 32-01

Husqvarna 501673201

PAWL

$8.99

$

In Stock, Qty 14

0

501 62 90-03

Husqvarna 501629003

FRONT HANDLE

$

$

Not available

501 62 93-05

Husqvarna 501629305

HANDLE CIRCUIT

Note: G

$

$

Not available

501 81 28-01

Husqvarna 501812801

IGNITION COIL

$113.99

$

Usually ships in 3-10 days

0

501 62 90-04

Husqvarna 501629004

FRONT HANDLE G

Note: G

$

$

Not available

501 83 98-01

Husqvarna 501839801

SHORTING LEAD

$12.99

$

In Stock, only 2 left!

0

501 83 97-01

Husqvarna 501839701

LEAD

$

$

Not available

729 22 75-05

Husqvarna 729227505

SCREW CSK B6X6
(Superseded to 503212806)

$6.49

$

Usually ships in 3-10 days

0

725 53 29-55

Husqvarna 725532955

SCREW MC6S 5X16

$6.49

$

In Stock, Qty 20+

0

503 21 14-07

Husqvarna 503211407

SCREW B12X19
(Superseded to 503210619)

$

$

Not available

503 20 00-23

Husqvarna 503200023

BOLT M6SF 5X14

$

$

Not available

503 50 53-01

Husqvarna 503505301

FLYWHEEL CPL SG
(Superseded to 503730602)

Note: SG

$

$

Not available

501 63 48-01

Husqvarna 501634801

SPRING

$6.99

$

In Stock, Qty 20+

0
