242 - Husqvarna Chainsaw (SN: 19900100001 - 19941400000) STARTER Parts Diagram

Chainsaw

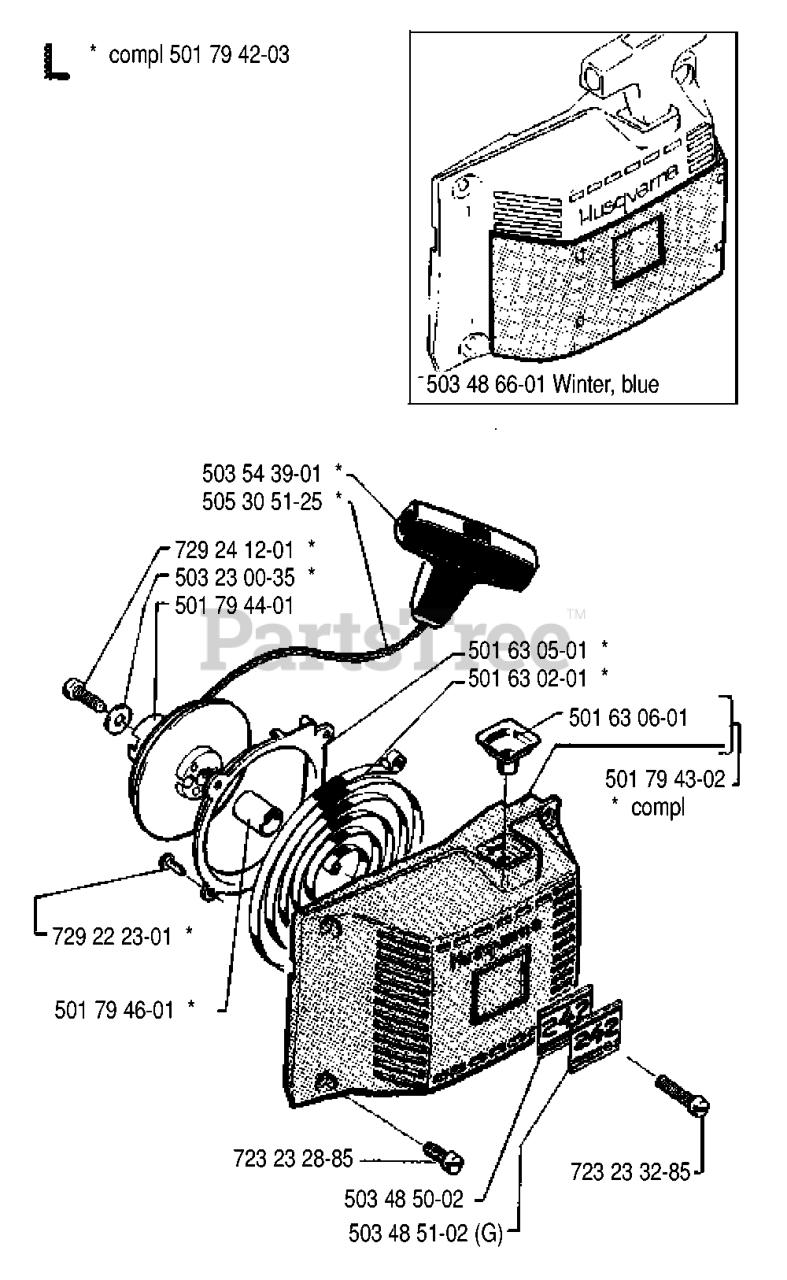

STARTER Parts Diagram

  • Title

501 79 43-02

Husqvarna 501794302

STARTER HOUSING

$

$

Not available

503 48 66-01

Husqvarna 503486601

COOLING AIR SCREEN
(Superseded to 503486602)

Note: WINTER, BLUE

$

$

Not available

501 79 44-01

Husqvarna 501794401

STARTER PULLEY

$13.84

$

Usually ships in 3-10 days

0

501 63 02-01

Husqvarna 501630201

RECOIL SPRING

$31.99

$

In Stock, only 2 left!

0

501 79 42-03

Husqvarna 501794203

STARTER ASS'Y

$

$

Not available

501 63 06-01

Husqvarna 501630601

SLEEVE

$10.99

$

In Stock, only 2 left!

0

503 48 51-02

Husqvarna 503485102

DECAL 242 G
(Superseded to 503667002)

Note: G

$

$

Not available

503 54 39-01

Husqvarna 503543901

STARTER HANDLE

$11.99

$

In Stock, Qty 8

0

723 23 32-85

Husqvarna 723233285

SCREW MSCS 5X22
(Superseded to 725533255)

$2.49

$

Usually ships in 3-10 days

0

729 22 23-01

Husqvarna 729222301

SCREW CSK B4X8

$

$

Not available

505 30 51-25

Husqvarna 505305125

STARTER ROPE

$8.99

$

In Stock, Qty 10

0

503 23 00-35

Husqvarna 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 18

0

723 23 28-85

Husqvarna 723232885

SCREW MSCS 5X14
(Superseded to 724132855)

$

$

Not available

501 79 46-01

Husqvarna 501794601

BEARING SLEEVE NLA

$

$

Not available

503 48 50-02

Husqvarna 503485002

DECAL 242
(Superseded to 503667001)

$

$

Not available

501 63 05-01

Husqvarna 501630501

GUARD RING

$

$

Not available

729 24 12-01

Husqvarna 729241201

SCREW CSK B10X16
(Superseded to 503210716)

$6.49

$

In Stock, Qty 14

0
