242 - Husqvarna Chainsaw (SN: 19941400001 - 19981800000) CHAIN BRAKE Parts Diagram

Chainsaw

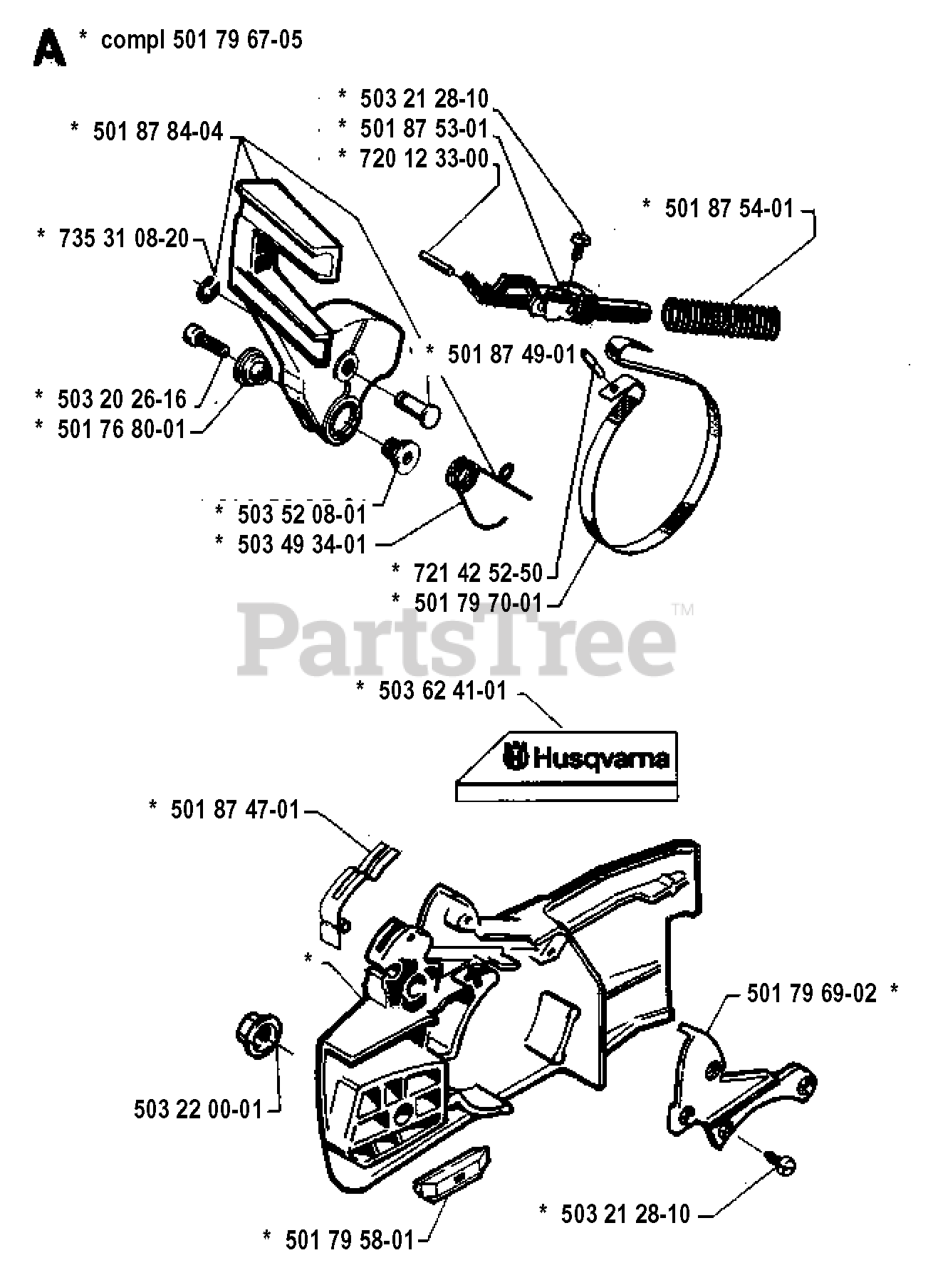

CHAIN BRAKE Parts Diagram

  • Title

503 52 08-01

Husqvarna 503520801

PIVOT SLEEVE L

$12.99

$

Usually ships in 3-10 days

0

501 87 53-01

Husqvarna 501875301

KNEE-JOINT

$37.99

$

Usually ships in 3-10 days

0

501 87 49-01

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$9.49

$

In Stock, only 1 left!

0

720 12 33-00

Husqvarna 720123300

PIN 3X10

$5.99

$

In Stock, Qty 6

0

501 87 54-01

Husqvarna 501875401

SPRING

$

$

Not available

501 79 69-02

Husqvarna 501796902

COVER

$

$

Not available

503 49 34-01

Husqvarna 503493401

LOCK SPRING

$

$

Not available

501 79 58-01

Husqvarna 501795801

GUIDE

$8.99

$

In Stock, only 2 left!

0

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

503 62 41-01

Husqvarna 503624101

DECAL CLUTCH COVER
(Superseded to 503768101)

$6.99

$

In Stock, Qty 11

0

501 79 67-05

Husqvarna 501796705

CHAINBRAKE
(Superseded to 501796708)

$

$

Not available

503 21 28-10

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

721 42 52-50

Husqvarna 721425250

SPIRAL PIN 4X12

$5.99

$

In Stock, Qty 7

0

501 79 70-01

Husqvarna 501797001

BRAKE BAND

$

$

Not available

501 76 80-01

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 13

0

735 31 08-20

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

501 87 47-01

Husqvarna 501874701

SPRING

$7.99

$

In Stock, Qty 14

0

503 20 26-16

Husqvarna 503202616

SCREW

$5.99

$

In Stock, Qty 7

0

501 87 84-04

Husqvarna 501878404

HANDGUARD
(Superseded to 503892701)

$62.99

$

In Stock, only 1 left!

0
