243 R - Husqvarna String Trimmer (2012-03) CLUTCH Parts Diagram

String Trimmer

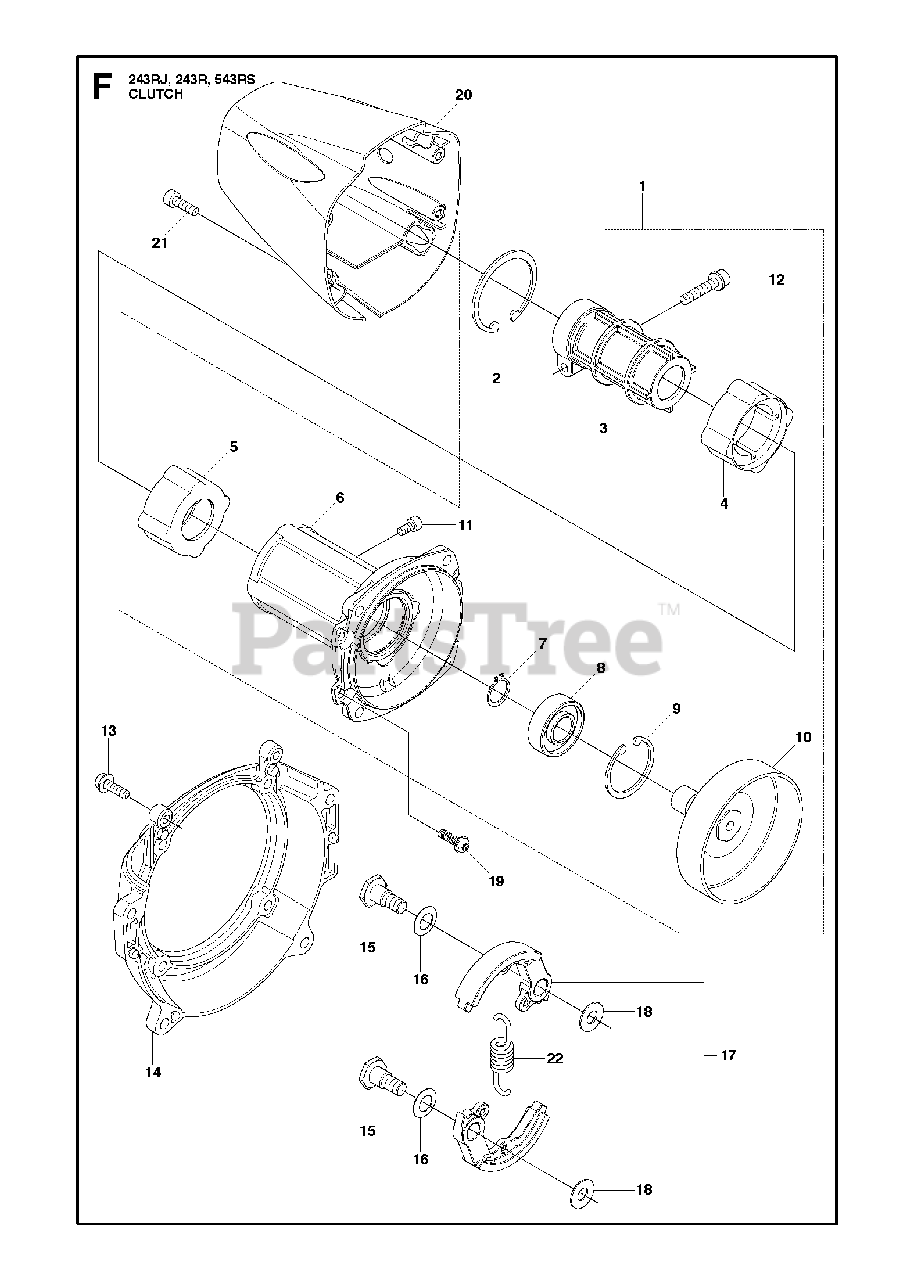

CLUTCH Parts Diagram

  • Title

1

Husqvarna 528815701

HOUSING ASSY
(Superseded to 525418401)

$

$

Not available

2

Husqvarna 516126401

Ring

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 521665001

CLAMP

Note: . 1

$

$

Not available

4

Husqvarna 521665201

ABSORBER

Note: . 1

$

$

Not available

5

Husqvarna 521665101

ABSORBER

Note: . 1

$

$

Not available

6

Husqvarna 521664901

HOUSING

Note: . 1

$

$

Not available

7

Husqvarna 516124201

RING, SNAP, M15 x 1.0

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 516131701

BEARING 0600406202

Note: . 1

$18.99

$

Usually ships in 3-10 days

0

9

Husqvarna 502849301

SNAP RING

Note: . 1

$3.99

$

In Stock, only 3 left!

0

10

Husqvarna 505293801

DRUM
(Superseded to 591425801)

Note: . 1

$40.99

$

Usually ships in 3-10 days

0

11

Husqvarna 504119601

BOLT 08

Note: . 1

$4.99

$

In Stock, Qty 5

0

12

Husqvarna 521862301

BOLT,TORX M6X30

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 515391301

BOLT

$4.99

$

In Stock, only 4 left!

0

14

Husqvarna 578854203

Fan Cover

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 505297801

SCREW

$7.49

$

In Stock, only 2 left!

0

16

Husqvarna 505298101

WASHER

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 521636401

SHOE COMP

$53.99

$

In Stock, only 3 left!

0

18

Husqvarna 505298001

WASHER

$3.99

$

In Stock, Qty 8

0

19

Husqvarna 521517901

SCREW

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 528815601

COVER,CLUTCH
(Superseded to 510173101)

$

$

Not available

21

Husqvarna 523019001

BOLT

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 521523401

SPRING

$9.99

$

Usually ships in 3-10 days

0
