243 RJ - Husqvarna String Trimmer (2012-03) CARBURETOR Parts Diagram

String Trimmer

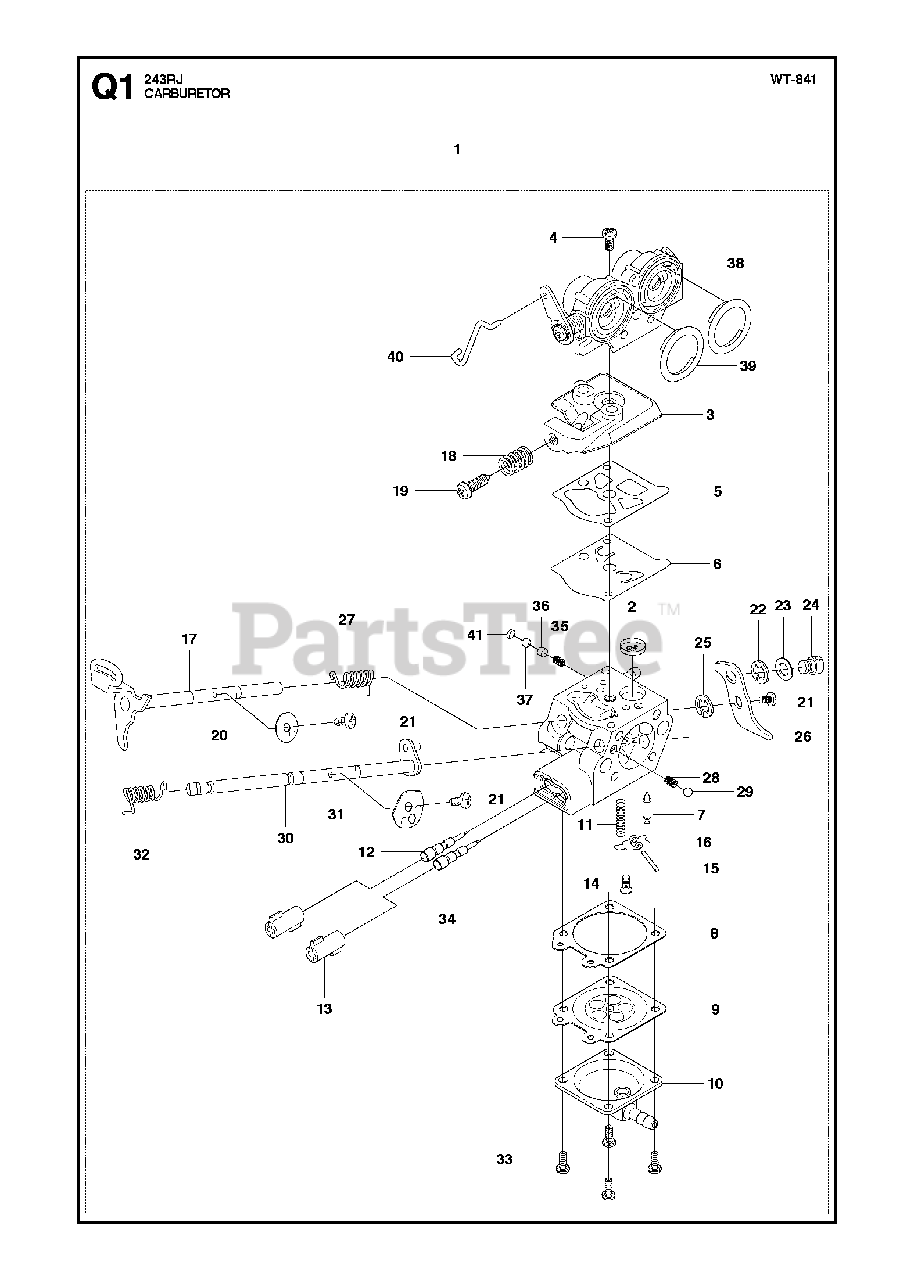

CARBURETOR Parts Diagram

  • Title

1

Husqvarna 521625001

$

$

Currently unavailable

2

Husqvarna 520957001

SCREEN
(Superseded to 574012501)

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 521639801

COVER

Note: . 1

$

$

Not available

4

Husqvarna 521640001

SCREW

Note: . 1

$

$

Not available

5

Husqvarna 520954801

GASKET

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

6

Husqvarna 513204801

Note: . 1

$

$

Currently unavailable

7

Husqvarna 521085401

VALVE INLET

Note: . 1

$27.99

$

Usually ships in 3-10 days

0

8

Husqvarna 514189301

Note: . 1

$

$

Not available

9

Husqvarna 505056401

DIAPHRAGM

Note: . 1

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna 521639701

COVER

Note: . 1

$

$

Not available

11

Husqvarna 516980001

SPRING

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 521585401

NEEDLE

Note: . 1

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 521116901

CAP

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 520977301

SCREW

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 520977401

PIN

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 520977201

LEVER

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 521640401

SHAFT

Note: . 1

$

$

Not available

18

Husqvarna 513225601

SPRING

Note: . 1

$

$

Not available

19

Husqvarna 513192901

SCREW

Note: . 1

$

$

Not available

20

Husqvarna 528705301

Note: . 1

$

$

Currently unavailable

21

Husqvarna 520959801

Note: . 1

$

$

Currently unavailable

22

Husqvarna 506738601

RING

Note: . 1

$2.49

$

Usually ships in 3-10 days

0

23

Husqvarna 516524201

WASHER

Note: . 1

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 513400801

SWIVEL

Note: . 1

$27.99

$

Usually ships in 3-10 days

0

25

Husqvarna 505056501

E-RING

Note: . 1

$2.49

$

Usually ships in 3-10 days

0

26

Husqvarna 521645501

LEVER, THROTTLE

Note: . 1

$

$

Not available

27

Husqvarna 516843901

SPRING RETURN
(Superseded to 574023701)

Note: . 1

$

$

Not available

28

Husqvarna 574793401

Note: . 1

$

$

Currently unavailable

29

Husqvarna 514242601

BALL

Note: . 1

$8.99

$

In Stock, only 1 left!

0

30

Husqvarna 521645101

SHAFT, CHOKE

Note: . 1

$

$

Not available

31

Husqvarna 521624701

Note: . 1

$

$

Currently unavailable

32

Husqvarna 514243601

Spring

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 520978801

SCREW ASSY

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 521645001

NEEDLE

Note: . 1

$

$

Not available

35

Husqvarna 505057901

SPRING

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 516935901

PISTON
(Superseded to 574023701)

Note: . 1

$

$

Not available

37

Husqvarna 516936001

BALL
(Superseded to 574023801)

Note: . 1

$

$

Not available

38

Husqvarna 521625101

Note: . 1

$

$

Currently unavailable

39

Husqvarna 522649401

Note: . 1

$

$

Currently unavailable

40

Husqvarna 578943601

Note: . 1

$

$

Currently unavailable

41

Husqvarna 525555001

Note: . 1

$

$

Currently unavailable
