243431-3135-08 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

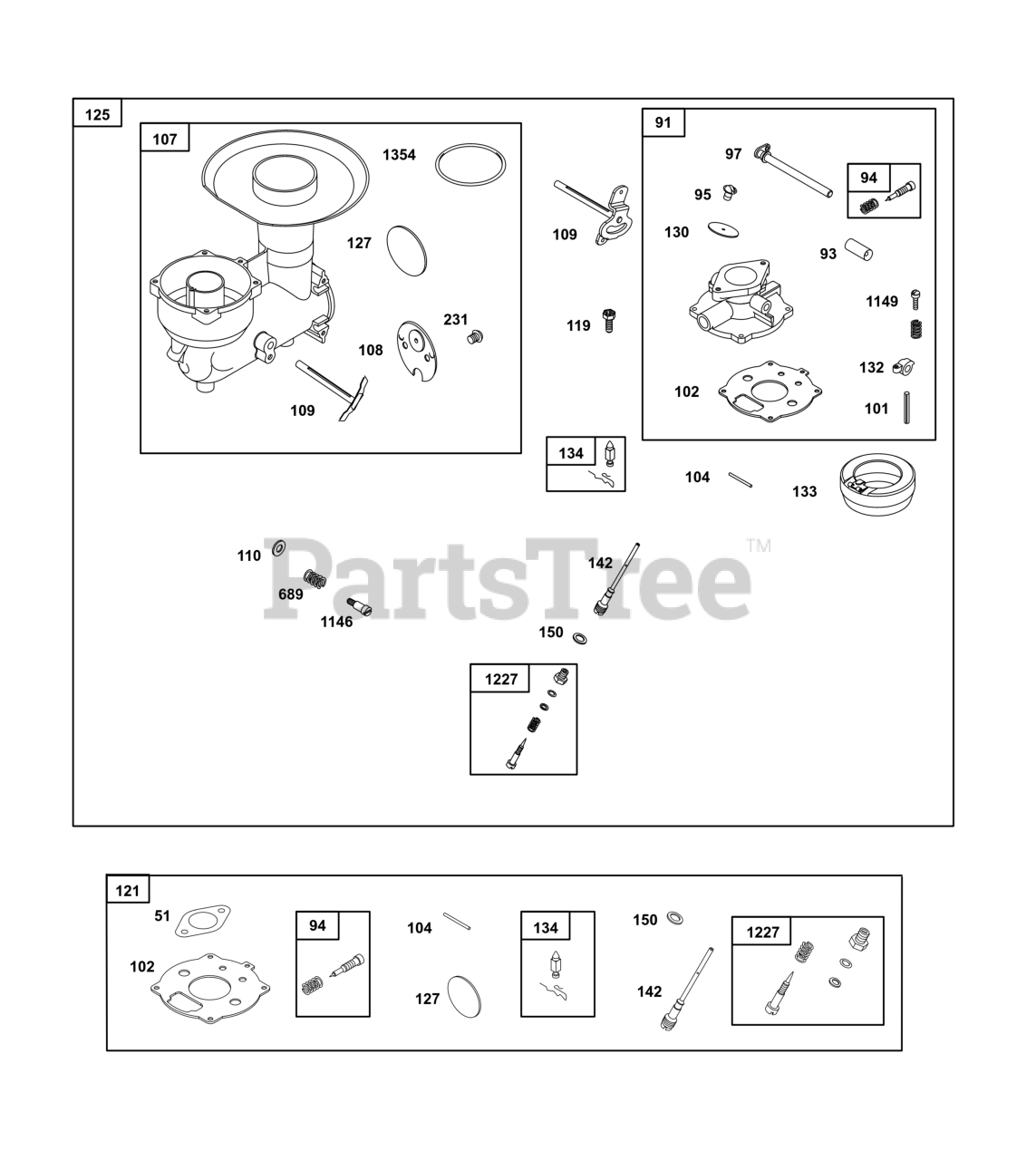

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

91

Briggs & Stratton 391034

BODY, Upper Carburetor

$135.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 691769

BUSHING, Throttle Shaft

$9.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 292681

VALVE, Idle Mixture

$12.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691437

SCREW

Note: (Throttle Valve)

$3.99

$

In Stock, only 3 left!

0

97

Briggs & Stratton 691944

SHAFT, Throttle

$43.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 691616

PIN, Shaft

$4.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 692215

GASKET, Carburetor Body

$5.99

$

In Stock, Qty 9

0

104

Briggs & Stratton 691775

PIN, Float Hinge

$4.49

$

In Stock, Qty 9

0

107

Briggs & Stratton 391069

BODY, Lower Carburetor

$

$

Not available

108

Briggs & Stratton 690621

VALVE, Choke

$10.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 691353

SHAFT, Choke

$32.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 691186

WASHER

Note: (Choke Shaft)

$4.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 691090

SCREW

Note: (Upper Carburetor Body To Lower Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 394989

KIT, Carburetor Overhaul

$

$

Not available

125

Briggs & Stratton 391073

CARBURETOR

$355.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 690627

PLUG, Welch

$

$

Not available

130

Briggs & Stratton 691727

VALVE, Throttle

$7.49

$

Usually ships in 2-12 days

0

132

Briggs & Stratton 691708

STOP, Throttle

$9.49

$

In Stock, only 1 left!

0

133

Briggs & Stratton 692265

FLOAT, Carburetor

$12.99

$

In Stock, only 2 left!

0

134

Briggs & Stratton 394682

KIT, Needle/Seat

$10.99

$

In Stock, only 2 left!

0

142

Briggs & Stratton 691966

NOZZLE, Carburetor

$23.99

$

In Stock, only 2 left!

0

150

Briggs & Stratton 691610

GASKET, Nozzle

$6.99

$

In Stock, only 2 left!

0

231

Briggs & Stratton 691437

SCREW

Note: (Choke Valve)

$3.99

$

In Stock, only 3 left!

0

689

Briggs & Stratton 691590

SPRING, Friction

$5.49

$

In Stock, Qty 6

0

1146

Briggs & Stratton 691587

SCREW

Note: (Choke Shaft)

$6.99

$

In Stock, only 2 left!

0

1149

Briggs & Stratton 691615

SCREW

Note: (Throttle Shaft)

$

$

Not available

1227

Briggs & Stratton 99525S

VALVE, High Speed

$13.99

$

In Stock, only 2 left!

0

1354

Briggs & Stratton 691929

SEAL, O-Ring

Note: (Lower Carburetor Body)

$6.49

$

Usually ships in 2-12 days

0
