243431-3135-08 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

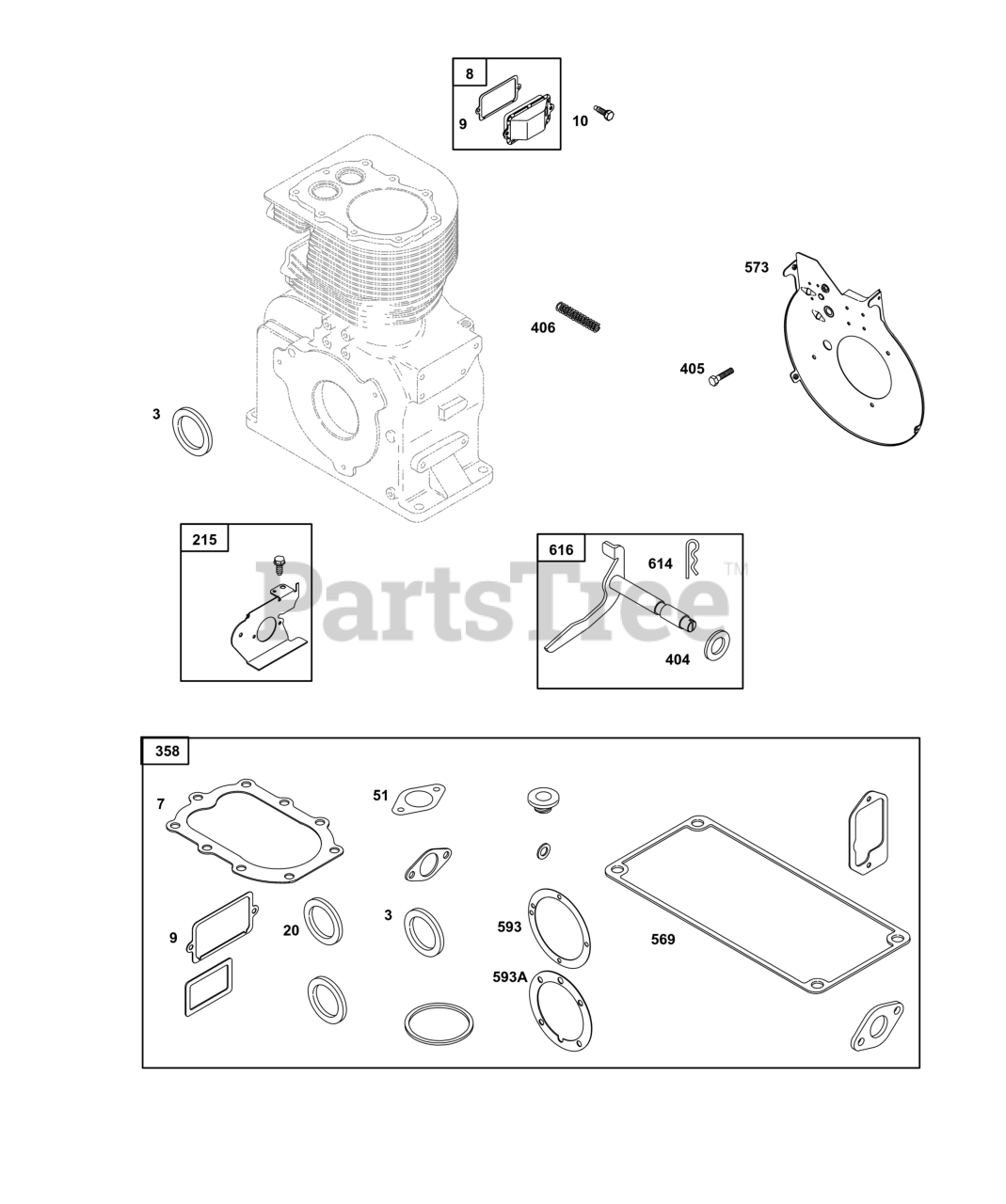

Cylinder Group Parts Diagram

  • Title

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

8

Briggs & Stratton 495738

BREATHER ASSEMBLY

$53.99

$

Usually ships in 2-12 days

0

9

GASKET, Breather

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

10

Briggs & Stratton 691666

SCREW

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

215

Briggs & Stratton 291871

GUIDE, Air

$14.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 299101

GASKET SET, Engine

$64.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 690264

WASHER

Note: (Governor Crank)

$4.49

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 690290

SCREW

Note: (Back Plate)

$3.49

$

Usually ships in 2-12 days

0

406

Briggs & Stratton 690533

SPRING, Breather Tube

$5.49

$

Usually ships in 2-12 days

0

569

GASKET, Engine Base

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

573

Briggs & Stratton 298159

PLATE, Back

$

$

Not available

593

GASKET, Bearing Support

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

593A

GASKET, Bearing Support

Note: (Part information located in Crankcase Cover/ Sump Group Group.)

$

$

Not available

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 1 left!

0

616

Briggs & Stratton 291364

CRANK, Governor

$35.99

$

Usually ships in 2-12 days

0
