243431-3135-08 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

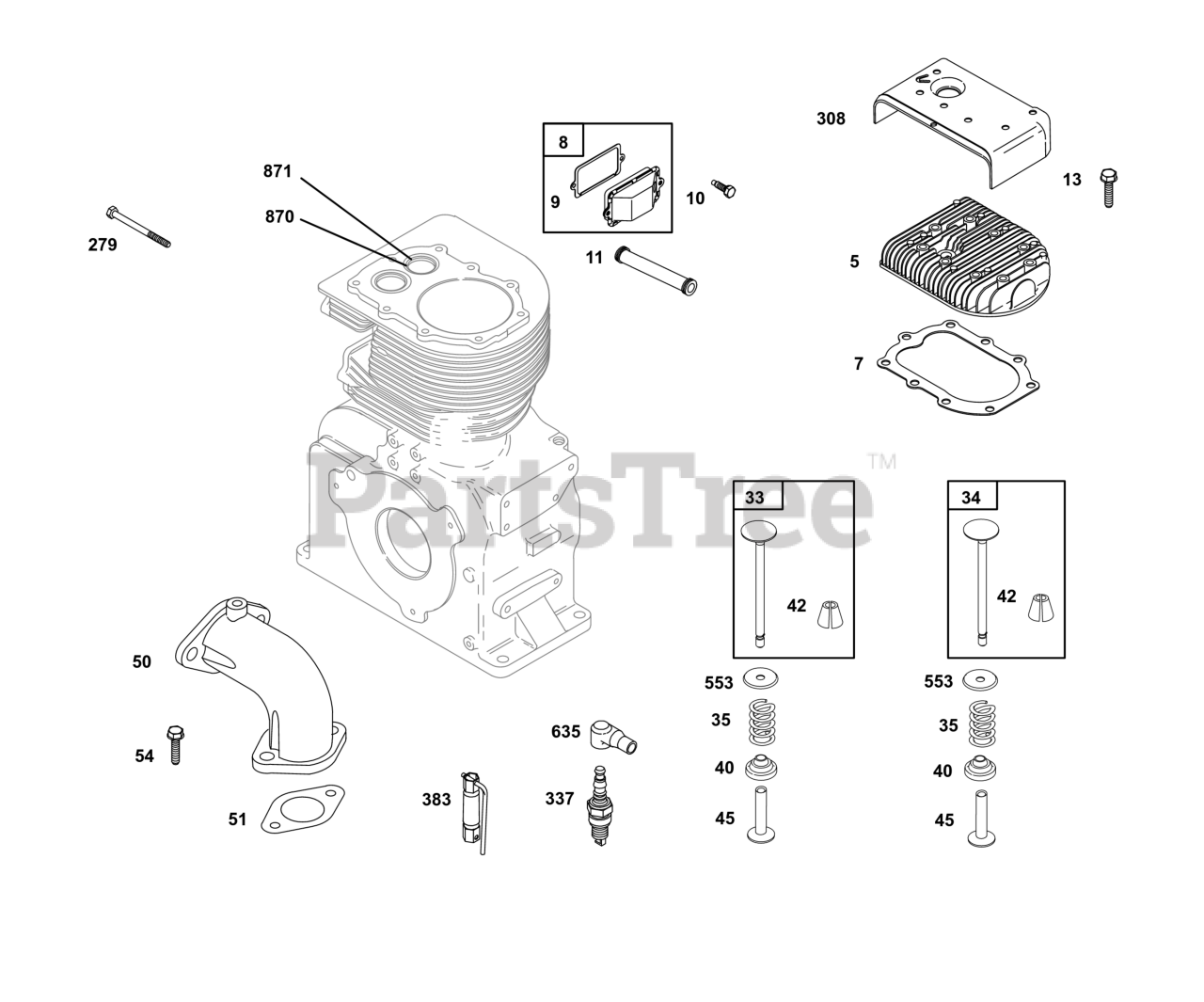

Cylinder Head Group Parts Diagram

  • Title

5

Briggs & Stratton 691150

HEAD, Cylinder

$

$

Not available

7

Briggs & Stratton 692230

GASKET, Cylinder Head

$12.99

$

In Stock, only 4 left!

0

8

BREATHER ASSEMBLY

Note: (Part information located in Cylinder Group.)

$

$

Not available

9

Briggs & Stratton 27803S

GASKET, Breather

$4.49

$

In Stock, Qty 20+

0

10

SCREW

Note: (Part information located in Cylinder Group.)

$

$

Not available

11

Briggs & Stratton 691512

TUBE, Breather

$

$

Not available

13

Briggs & Stratton 691441

SCREW

Note: (Cylinder Head)

$7.49

$

In Stock, only 4 left!

0

33

Briggs & Stratton 394436

VALVE, Exhaust

$65.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 394434

VALVE, Intake

$

$

Not available

35

Briggs & Stratton 691597

SPRING, Valve

Note: (Intake)

$10.99

$

In Stock, only 3 left!

0

40

Briggs & Stratton 691939

RETAINER, Valve

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

KEEPER, Valve

$7.99

$

In Stock, only 3 left!

0

45

Briggs & Stratton 691594

TAPPET, Valve

$32.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 692525

MANIFOLD, Intake

$87.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 27381S

GASKET, Intake

$4.99

$

In Stock, only 2 left!

0

54

Briggs & Stratton 690953

SCREW

Note: (Intake Manifold)

$

$

Not available

279

Briggs & Stratton 690294

SCREW

Note: (Valve Cover)

$3.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 690609

COVER, Cylinder Head

$

$

Not available

337

Briggs & Stratton 796112S

PLUG, Spark

$3.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838S

WRENCH, Spark Plug

$6.49

$

In Stock, only 1 left!

0

553

Briggs & Stratton 690269

RETAINER, Valve

$4.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538S

BOOT, Spark PLug

$3.99

$

In Stock, Qty 20+

0

870

Briggs & Stratton 691583

SEAT, Valve

Note: (Exhaust)

$49.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231218

BUSHING, Valve Guide

$14.99

$

In Stock, Qty 6

0
