243431-3135-08 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

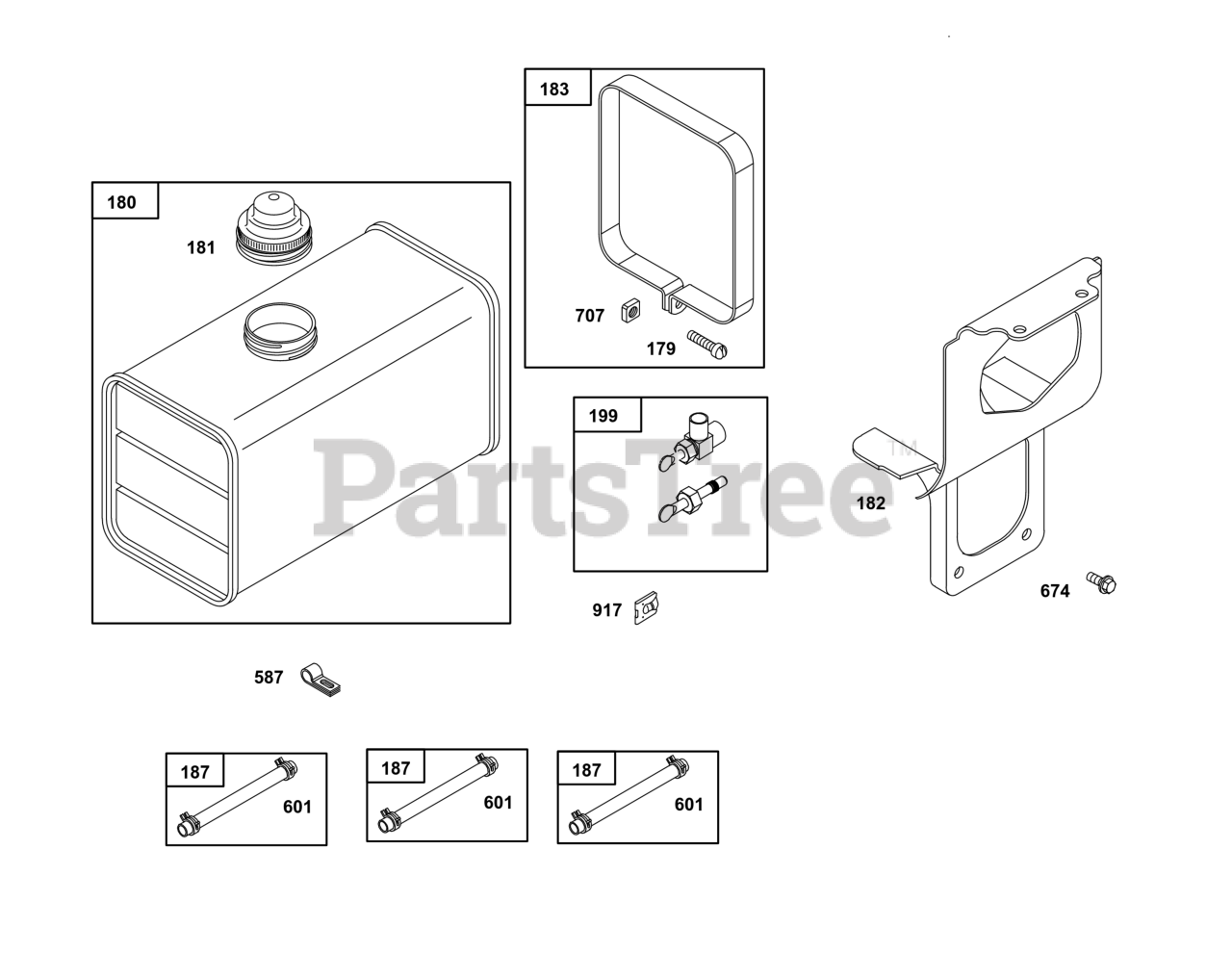

Fuel Supply Group Parts Diagram

  • Title

179

Briggs & Stratton 692280

SCREW

Note: (Fuel Tank Strap)

$

$

Currently unavailable

180

Briggs & Stratton 291488

TANK, Fuel

$

$

Not available

181

Briggs & Stratton 791545

CAP, Fuel Tank

Note: (Metal)

$12.99

$

Usually ships in 2-12 days

0

182

Briggs & Stratton 695587

BRACKET, Fuel Tank

$47.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 691937

STRAP, Fuel Tank

$33.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 499167

LINE, Fuel
(Superseded to 841589)

$38.99

$

In Stock, only 2 left!

0

187

Briggs & Stratton 791893

LINE, Fuel

$21.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

199

Briggs & Stratton 690612

FILTER, Fuel

$

$

Not available

587

Briggs & Stratton 690389

CLAMP, Cable

$3.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

674

Briggs & Stratton 691058

SCREW

Note: (Fuel Tank Bracket)

$5.99

$

In Stock, Qty 11

0

707

Briggs & Stratton 690279

NUT

Note: (Fuel Tank Strap)

$3.99

$

Usually ships in 2-12 days

0

917

Briggs & Stratton 691737

VALVE, Handle Shutoff

$7.49

$

In Stock, only 2 left!

0
