244-645A190 - White Outdoor Shredder (1994) Shredders Parts Diagram

Shredder

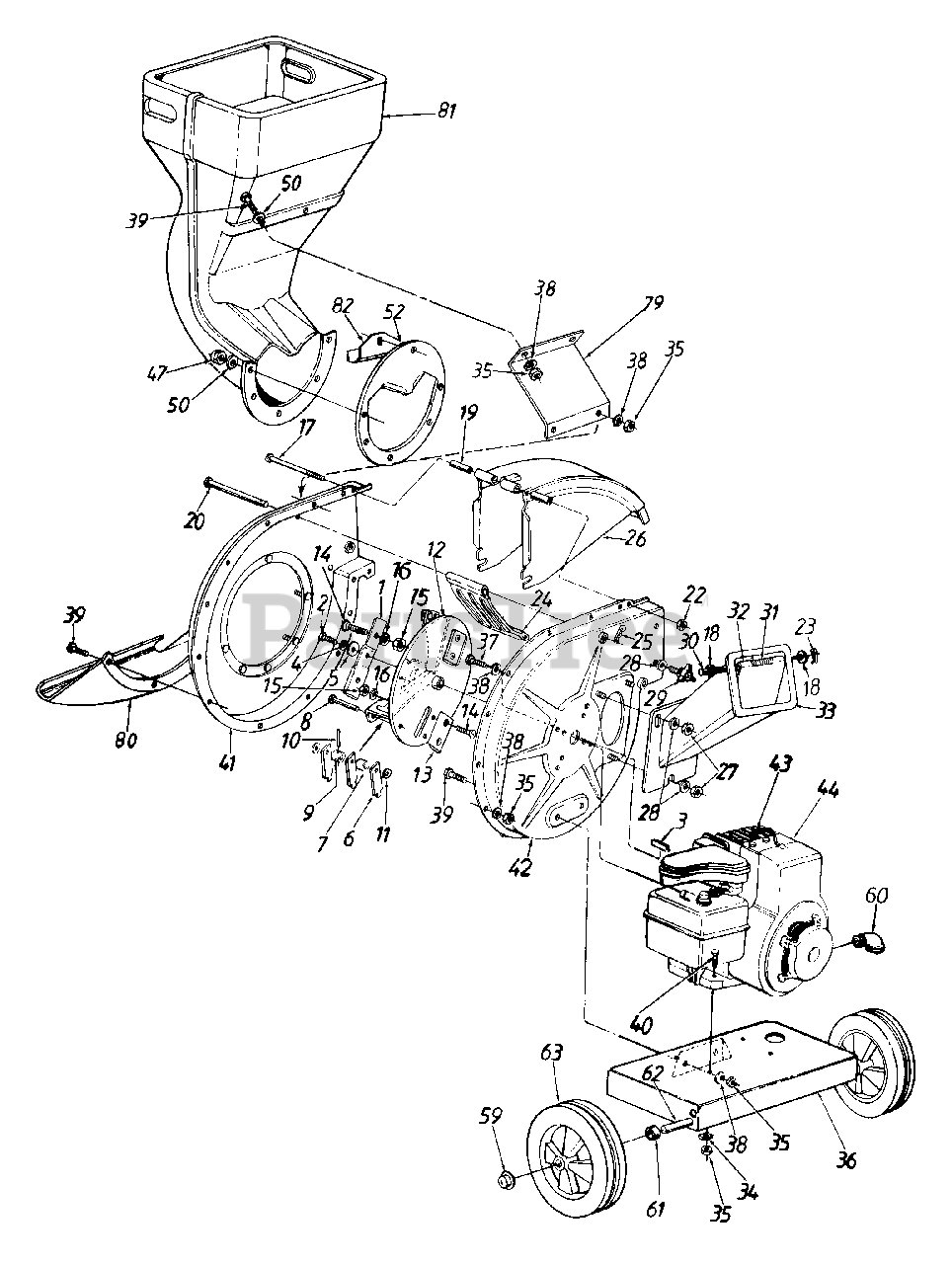

Shredders Parts Diagram

  • Title

1

White Outdoor 742-0571

Blade
(Superseded to 942-0571)

$37.99

$

In Stock, Qty 9

0

2

White Outdoor 710-0818

Hex Patch Bolt 3/8-24 x 2" Lg. (Gr. 8)

$6.49

$

In Stock, only 1 left!

0

White Outdoor 710-1254

Hex Patch Bolt 3/8-24 x 2.25" (Gr. 8)

Note: Used with Tapered Engine Crankshaft.

$7.49

$

In Stock, Qty 9

0

3

White Outdoor 714-0114

Sq. Key 1/4 x 2.0" Lg.
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

4

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$3.99

$

In Stock, Qty 13

0

5

White Outdoor 736-0247

Fl-Wash. .406" I.D. x 1.25" O.D. Hdn.

$8.99

$

In Stock, Qty 20+

0

6

White Outdoor 11459B

Flail
(Superseded to 91459B)

$20.99

$

In Stock, Qty 20+

0

7

White Outdoor 711-0564

Flail Spacer
(Superseded to 911-0564)

$14.99

$

In Stock, only 2 left!

0

8

White Outdoor 711-0833A

Clevis Pin .496" Dia.
(Superseded to 911-0833B)

$11.99

$

In Stock, only 3 left!

0

9

White Outdoor 711-0834

Flail Spacer w/.160" Dia. Hole
(Superseded to 911-0834A)

$

$

Not available

10

White Outdoor 715-0249

Spring Roll Pin 1.12" Lg.
(Superseded to 915-0249)

$6.49

$

In Stock, only 4 left!

0

11

White Outdoor 736-0192

Fl-Wash. .531" I.D. x .94" O.D.

$3.99

$

In Stock, only 2 left!

0

12

White Outdoor 681-0002

Impeller Ass'y. Comp.

$

$

Not available

White Outdoor 681-0030

Impeller Ass'y. Comp.
(Superseded to 981-04096)

Note: Incl. Ref. 1, 6, 7, 8, 9, 10, 11, 12, 13, 14

$558.99

$

Usually ships in 3-6 days

0

13

White Outdoor 781-0490

Chipper Blade
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-1054

Flat Hd. Scr. 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-0411

Hex Top L-Nut 5/16-24 (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 710-0825

Hex Bolt 1/4-20 x 3.75" Lg.

$5.49

$

In Stock, Qty 5

0

18

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .50" O.D.

$4.49

$

In Stock, only 1 left!

0

19

White Outdoor 750-0793

Chute Hinge Spacer 1.66" Lg.
(Superseded to 950-0793)

$3.49

$

In Stock, only 4 left!

0

20

White Outdoor 711-0835

Clevis Pin .5" Dia. x 4.62" Lg.
(Superseded to 911-0835)

$11.99

$

In Stock, Qty 6

0

22

White Outdoor 712-0291

Hex Ctr. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

23

White Outdoor 714-3010

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

24

White Outdoor 781-0457

Shredder Screen
(Superseded to 781-0457-0637)

Variations

White Outdoor 781-0457-0637

Shredder Screen, Black - POWDER BLACK (0637)

$38.99

$

In Stock, Qty 7

0

$38.99

$

In Stock, Qty 7

0

25

White Outdoor 714-0149B

Internal Cotter Pin 3/8" Dia.

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 781-0480

Chute Deflector Ass'y.
(Superseded to 681-0094A)

Variations

White Outdoor 781-0480-0480

USE 681-0094-0637 CHUTE ASSY- - BRILLIANT GREEN (0480)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0483

USE 681-0094-0637 CHUTE ASSY- - CHARCOAL GRAY (0483)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0637

USE 681-0094-0637 CHUTE ASSY- - POWDER BLACK (0637)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0638

CHUTE-DISCHARGE - MTD/TROY-BILT RED (0638)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0662

USE 681-0094-0637 CHUTE ASSY- - OYSTER GRAY (0662)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0498

CHUTE ASSY-DISCHARGE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0480-0686

No Longer Available DEFLECTOR ASSY-CHU - SIMPLICITY ORANGE (0686)

$

$

Not available

$126.99

$

Usually ships in 3-6 days

0

27

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 720-0170

Hand Knob

$10.99

$

In Stock, Qty 6

0

30

White Outdoor 747-0744A

Chipper Door Rod

$

$

Not available

31

White Outdoor 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)

$

$

Not available

32

White Outdoor 781-0489

Chipper Door

Variations

White Outdoor 781-0489-0483

No Longer Available DOOR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0489-0498

No Longer Available DOOR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0489-0629

No Longer Available DOOR - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 781-0489-0637

No Longer Available DOOR-CHIPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0489-0638

No Longer Available DOOR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0489-0662

No Longer Available DOOR - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0489-0665

No Longer Available DOOR - YARDMAN GREEN (0665)

$

$

Not available

$

$

33

White Outdoor 781-0475

Chipper Chute Ass'y.

Variations

White Outdoor 781-0475-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 781-0475-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0475-0498

No Longer Available CHUTE CHIPPER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0475-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 781-0475-0637

No Longer Available CHUTE-CHIPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0475-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0475-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 781-0475-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 781-0475-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0475-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 781-0475-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 781-0475-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

34

White Outdoor 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

35

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Sr. 5)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 781-0510A

Shredder Frame
(Superseded to 681-0184C)

Variations

White Outdoor 781-0510A-0483

FRAME ASSY-SHREDDER - CHARCOAL GRAY (0483)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0510A-0689

FRAME ASSY-SHREDDER - POLO GREEN (0689)

$95.99

$

Usually ships in 3-6 days

0

$95.99

$

Usually ships in 3-6 days

0

37

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 16

0

38

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

41

White Outdoor 681-0004

Flail Housing Ass'y. - L.H.
(Superseded to 681-0004A)

Variations

White Outdoor 681-0004-0498

HOUSING ASSY-FLAIL - OLD CUB YELLOW (0498)

$219.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0637

FLAIL HOUSING ASSY BLACK - POWDER BLACK (0637)

$219.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0638

HOUSING ASSY-FLAIL - MTD/TROY-BILT RED (0638)

$219.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0483

HOUSING ASSY-FLAIL - CHARCOAL GRAY (0483)

$204.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0662

HOUSING ASSY-FLAIL - OYSTER GRAY (0662)

$177.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0665

HOUSING ASSY-FLAIL - YARDMAN GREEN (0665)

$177.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0689

HOUSING ASSY-FLAIL - POLO GREEN (0689)

$204.99

$

Usually ships in 3-6 days

0

$177.99

$

Usually ships in 3-6 days

0

42

White Outdoor 781-0474A

Flail Housing Ass'y. - R.H.

Variations

White Outdoor 781-0474A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 781-0474A-0483

No Longer Available HOUSING ASSY-FLAIL - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0474A-0498

No Longer Available HOUSING ASSY-FLAIL - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0474A-0629

No Longer Available HOUSING ASSY-FLAIL - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 781-0474A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0474A-0638

No Longer Available HOUSING ASSY-FLAIL - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0474A-0648

No Longer Available HOUSING ASSY-FLAIL - TECH GRAY (0648)

$

$

Not available

White Outdoor 781-0474A-0662

No Longer Available HOUSING ASSY-FLAIL - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0474A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 781-0474A-0674

No Longer Available HOUSING ASSY-FLAIL - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

44

Engine

$

$

Not available

47

White Outdoor 712-0429

Elastic Lock Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 736-0264

Fl-Wash. 5/16" I.D.

$6.49

$

In Stock, only 2 left!

0

52

781-0521

Back-Up Plate

$

$

Not available

59

White Outdoor 726-0214

Push Cap 5/8" Dia. Rod

$9.99

$

In Stock, Qty 20+

0

60

White Outdoor 737-0195

Drain Elbow
(Superseded to 937-0195)

$15.99

$

Usually ships in 3-6 days

0

61

White Outdoor 750-0786

Spacer .64" I.D. x .38" Lg
(Superseded to 950-0786)

$6.99

$

Usually ships in 3-6 days

0

62

White Outdoor 738-0814

Shredder Axle

$41.99

$

In Stock, only 1 left!

0

63

White Outdoor 734-1603

Wheel Ass'y. Comp.

$

$

Not available

79

White Outdoor 781-0519

Hopper Support Brkt.

Variations

White Outdoor 781-0519-0637

No Longer Available BRACKET-HOPPER SUP - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0519-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0519-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

$

$

80

White Outdoor 781-0515

Front Support Brkt.

Variations

White Outdoor 781-0515-0483

BRACKET-SUPPORT-FR - CHARCOAL GRAY (0483)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0515-0638

BRACKET-SUPPORT-FR - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0515-0637

BRACKET-SUPPORT-FR - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0515-0662

BRACKET-SUPPORT-FR - OYSTER GRAY (0662)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0515-0665

BRACKET-SUPPORT-FR - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0515-0691

BRACKET-SUPPORT-FR - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0515-4044

BRACKET-SUPPORT-FR - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

81

White Outdoor 731-1307

Leaf Hopper

$

$

Not available

82

White Outdoor 781-0589

Hopper Shield

Variations

White Outdoor 781-0589-0637

No Longer Available SHIELD-HOPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0589-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

White Outdoor 764-0199A

Bag
(Superseded to 964-04022)

Note: Not shown

$71.99

$

In Stock, only 4 left!

0

White Outdoor 723-0400

Safety Glasses

Note: Not shown

$24.99

$

Usually ships in 3-6 days

0
