244 RX - Husqvarna String Trimmer (1983-02) Guard Plate Assembly Parts Diagram

String Trimmer

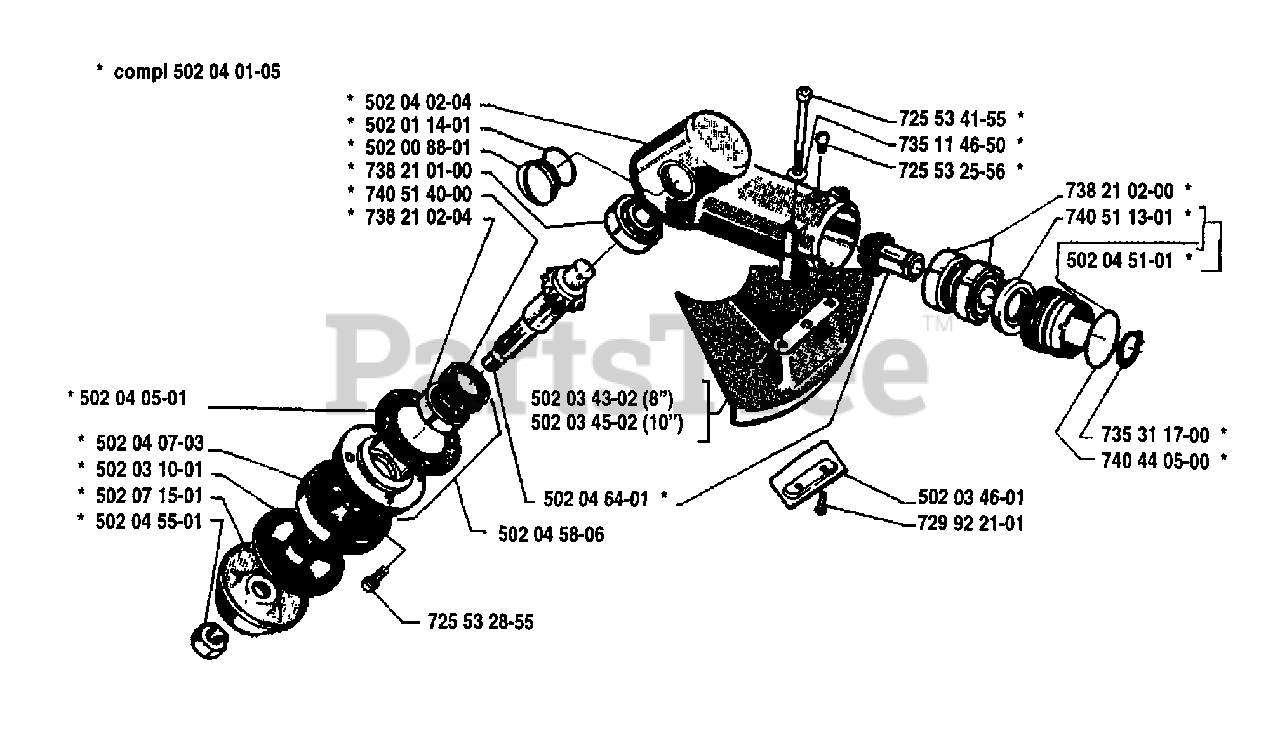

Guard Plate Assembly Parts Diagram

  • Title

502040105

Husqvarna 502040105

USE 502 039102 BEVEL GEAR

$

$

Not available

502040204

Husqvarna 502040204

USE 502 039201 GEAR HOUSI

$

$

Not available

502011401

Husqvarna 502011401

GASKET
(Superseded to 502286201)

$

$

Not available

502008801

Husqvarna 502008801

FILL PLUG
(Superseded to 502115902)

$20.99

$

In Stock, only 1 left!

0

738210100

Husqvarna 738210100

BALL BEARING 6001-C3
(Superseded to 738210110)

$13.99

$

In Stock, only 2 left!

0

740514000

Husqvarna 740514000

SEALING RING

$

$

Not available

738210204

Husqvarna 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

502040501

Husqvarna 502040501

USE 502 040502 GASKET

$

$

Not available

502040703

Husqvarna 502040703

REPL BY 502 04 07-04
(Superseded to 502040704)

$

$

Not available

502031001

Husqvarna 502031001

REPL BY 502 03 10-03
(Superseded to 502031003)

$

$

Not available

502071501

Husqvarna 502071501

NUT PROTECTION

$

$

Not available

502045501

Husqvarna 502045501

LOCKNUT 12X1.75
(Superseded to 732252201)

$1.99

$

In Stock, only 3 left!

0

502034302

Husqvarna 502034302

BLADE GUARD 200 MM
(Superseded to 574532601)

$31.99

$

In Stock, only 2 left!

0

502034502

Husqvarna 502034502

BLADE GUARD 250MM NLA

$

$

Not available

502046401

Husqvarna 502046401

SET GEAR WHEELS M12
(Superseded to 502271104)

$

$

Not available

502045806

Husqvarna 502045806

GEAR COVER

$

$

Not available

725532855

Husqvarna 725532855

SCREW MC6S 5X14

$

$

Not available

725534155

Husqvarna 725534155

SCREW MC6S 5X50

$2.49

$

Usually ships in 3-10 days

0

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

725532556

Husqvarna 725532556

RP SCREW MC6S 5X10
(Superseded to 725532555)

$3.49

$

In Stock, Qty 6

0

738210200

Husqvarna 738210200

BALL BEARING 6002
(Superseded to 738210210)

$

$

Not available

740511301

Husqvarna 740511301

SEALING RING

$

$

Not available

502045101

Husqvarna 502045101

SLEEVE NLA

$

$

Not available

735311700

Husqvarna 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 6

0

740440500

Husqvarna 740440500

O-RING

$7.49

$

Usually ships in 3-10 days

0

502034601

Husqvarna 502034601

WASHER

$

$

Not available

729922101

Husqvarna 729922101

SCREW KDS 4X6

$

$

Not available
