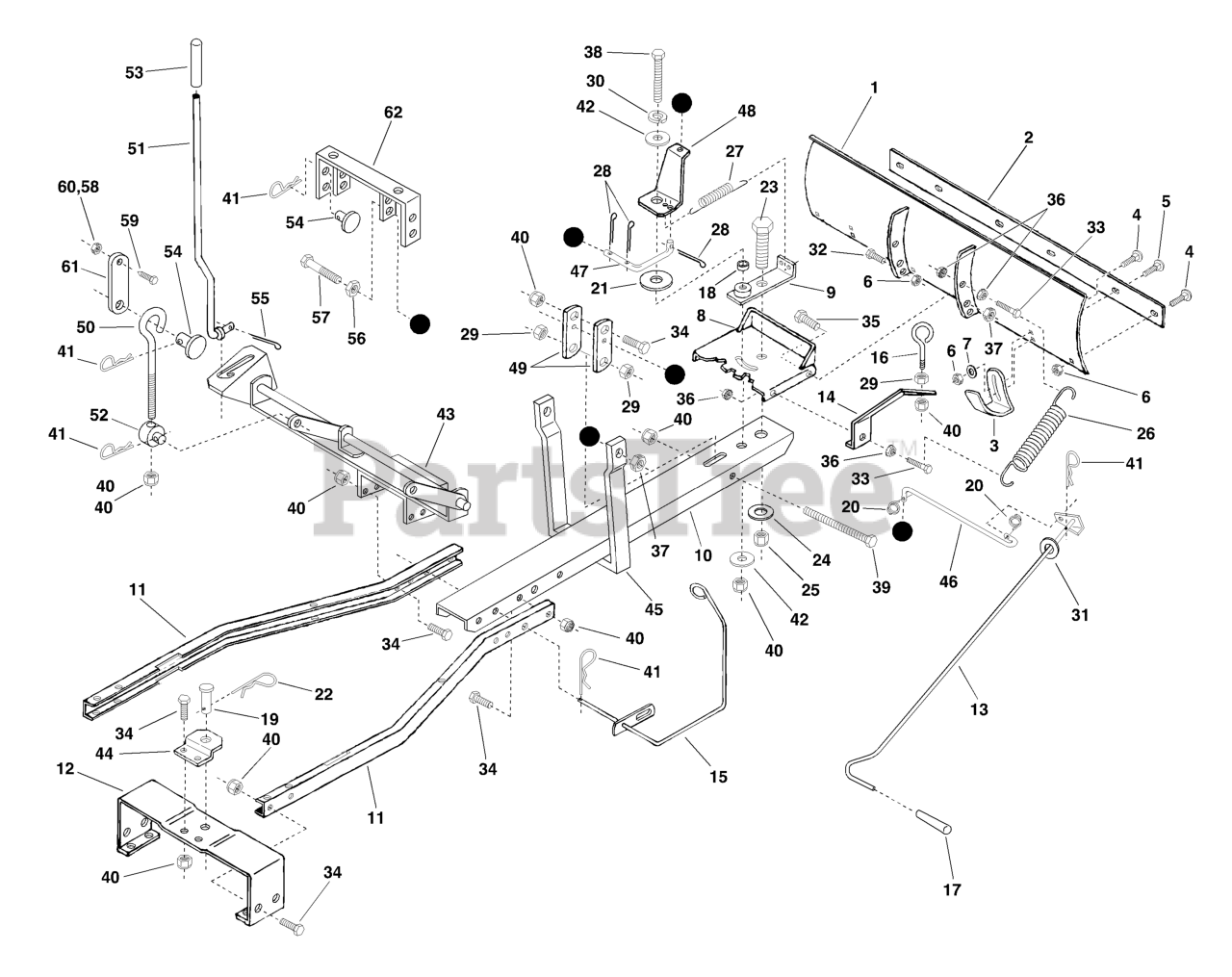

24478B - Murray 46" Snow Blade, Tractor Mounted (2002) Illustration & Parts List Parts Diagram

46" Snow Blade, Tractor Mounted

Illustration & Parts List Parts Diagram

  • Title

1

Murray 7101036

46" Blade

$

$

Currently unavailable

2

Murray 7101037

Plate, Wear Strip 46"

$30.99

$

Usually ships in 2-12 days

0

3

Murray 7101039

Skid, Shoe

$

$

Currently unavailable

4

Murray 002X64MA

Bolt, Carriage 5/16-18 x 3/4"

$4.49

$

In Stock, only 3 left!

0

5

Murray 002X83

Bolt, Carriage 5/16-18 x 1"

$

$

Currently unavailable

6

Murray 015X88MA

Nut, Hex Lock 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

7

Murray 017X44MA

Washer, Flat 5/16"

$3.49

$

Usually ships in 2-12 days

0

8

Murray 7001135

Plate, Pivot

$

$

Currently unavailable

9

Murray 7001022

Bracket, Pivot Reinforcement

$35.99

$

Usually ships in 2-12 days

0

10

Murray 7101066

Channel, Thrust

$

$

Currently unavailable

11

Murray 7101038

Channel, Rear Support

$26.99

$

Usually ships in 2-12 days

0

12

Murray 7101040

Bracket, Rear Mounting

$

$

Currently unavailable

13

Murray 7101031

Handle, Pivot Control

$27.99

$

Usually ships in 2-12 days

0

14

Murray 7101028

Bracket, Blade Pivot

$24.99

$

Usually ships in 2-12 days

0

15

Murray 7001122

Pivot Handle Support Assembly

$

$

Currently unavailable

16

Murray 7001018

Bolt, Eye 3/8-16 x 2" (5/8" I.D.)

$

$

Currently unavailable

17

Murray 7101071

Grip, 3/8" I.D. x 3" LG.

$4.49

$

Usually ships in 2-12 days

0

18

Murray 7001174

Spacer, 3/8" I.D. x 1/2" O.D.

$

$

Currently unavailable

19

Murray 7101001

Pin, Clevis 5/8" x 1-3/4"
(Superseded to 7101001YP)

$26.99

$

Usually ships in 2-12 days

0

20

Murray 7101004

Clip, Spring

$1.49

$

Usually ships in 2-12 days

0

21

Murray 7001143

Washer, Flat .53" x 2" x 0.88"

$

$

Currently unavailable

22

Murray 7001124

Pin, Hair Cotter 5/32" Dia.

$2.49

$

Usually ships in 2-12 days

0

23

Murray 7101069

Bolt, Hex 5/8-11 x 1-3/4"

$1.99

$

Usually ships in 2-12 days

0

24

Murray 7101062

Washer, Flat 21/32" x 1-5/16"

$1.99

$

Usually ships in 2-12 days

0

25

Murray 15X128

Nut, Hex 5/8-11 (Nylock)

$1.99

$

Usually ships in 2-12 days

0

26

Murray 7001011MA

Spring, Blade Return

$13.99

$

Usually ships in 2-12 days

0

27

Murray 7101009

Spring, Idler
(Superseded to 7101009YP)

$13.99

$

Usually ships in 2-12 days

0

28

Murray 030X20MA

Pin, Cotter 3/32" x 3/4"
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

29

Murray 7101045

Nut, Hex 3/8-16

$1.99

$

Usually ships in 2-12 days

0

30

Murray 018X31MA

Lockwasher, 3/8"

$4.49

$

Usually ships in 2-12 days

0

31

Murray 017X53MA

Washer, Flat 3/8"
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

32

Murray 001X45MA

Bolt, Hex 5/16-18 x 5/8"
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

33

Murray 01X139MA

Bolt, Hex 5/16-18 x 1-1/4"

$3.49

$

In Stock, Qty 5

0

34

Murray 01X137MA

Bolt, Hex 3/8-16 x 1"

$3.49

$

Usually ships in 2-12 days

0

35

Murray 01X125MA

Bolt, Hex 1/2-13 x 1"

$3.49

$

Usually ships in 2-12 days

0

36

Murray 7101056

Nut, Hex 5/16-18 (SIMS)

$1.49

$

Usually ships in 2-12 days

0

37

Murray 15X137

Nut, Hex Lock 1/2-13

$

$

Currently unavailable

38

Murray 01X157

Bolt, Hex 3/8-16 x 2-1/2"

$2.99

$

Usually ships in 2-12 days

0

39

Murray 7101060

Bolt, Hex 3/8-16 x 4-1/2"

$3.99

$

Usually ships in 2-12 days

0

40

Murray 7101011

Nut, Hex 3/8-16 (NYLOCK)

$1.49

$

Usually ships in 2-12 days

0

41

Murray 0031X6MA

Pin, Hair Cotter 3/32" Dia.
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

42

Murray 17X158

Washer, Flat .406" x 1-1/2"

$

$

Not available

43

Murray 7001192

Lift Bracket Assembly

$182.99

$

Usually ships in 2-12 days

0

44

Murray 7101067

Bracket, Rear Locating
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

45

Murray 7001188

Stabilizer, Front

$

$

Currently unavailable

46

Murray 7101194

Rod, Pivot Release (RH)

$

$

Currently unavailable

47

Murray 7001137

Rod, Pivot Control (RH)

$

$

Currently unavailable

48

Murray 7001249

Bracket, Pivot Release (RH)

$

$

Currently unavailable

49

Murray 7001023

Strap

$2.49

$

Usually ships in 2-12 days

0

50

Murray 7001185MA

Bolt, Eye 3/8-16 x 7" LG.

$11.99

$

Usually ships in 2-12 days

0

51

Murray 7001193

Lift Handle Assembly

$

$

Currently unavailable

52

Murray 7001026

Trunnion

$

$

Currently unavailable

53

Murray 7101065

Grip, 1/2" I.D. x 3" LG.

$

$

Currently unavailable

54

Murray 7101053

Pin, Clevis 1/2" x 1"

$2.99

$

Usually ships in 2-12 days

0

55

Murray 030X49MA

Pin, Cotter 1/8" x 1-1/4"

$4.49

$

In Stock, Qty 12

0

56

Murray 7101046

Nut, Jam 1/2-13

$1.99

$

Usually ships in 2-12 days

0

57

Murray 7101072

Bolt, Hex 1/2-13 x 1-3/4"
(Superseded to 7101072YP)

$37.99

$

Usually ships in 2-12 days

0

58

Murray 015X79MA

Nut, Hex 5/16-18 Serrated Flanged
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

59

Murray 7101068

Screw, 1/4-20 Thread Forming
(Superseded to 7101068YP)

$31.99

$

Usually ships in 2-12 days

0

60

Murray 015X89MA

Nut, Hex Lock 1/4-20

$4.49

$

Usually ships in 2-12 days

0

61

Murray 7101032

Strap, Lift Anchor

$

$

Currently unavailable

62

Murray 7001121

Bracket, Stabilizer

$

$

Currently unavailable

--

Murray 7101059

Owner's Manual

$

$

Currently unavailable
