245-315B000 - MTD Shredder Vacuum (1995) Wheel Assembly Complete Parts Diagram

Shredder Vacuum

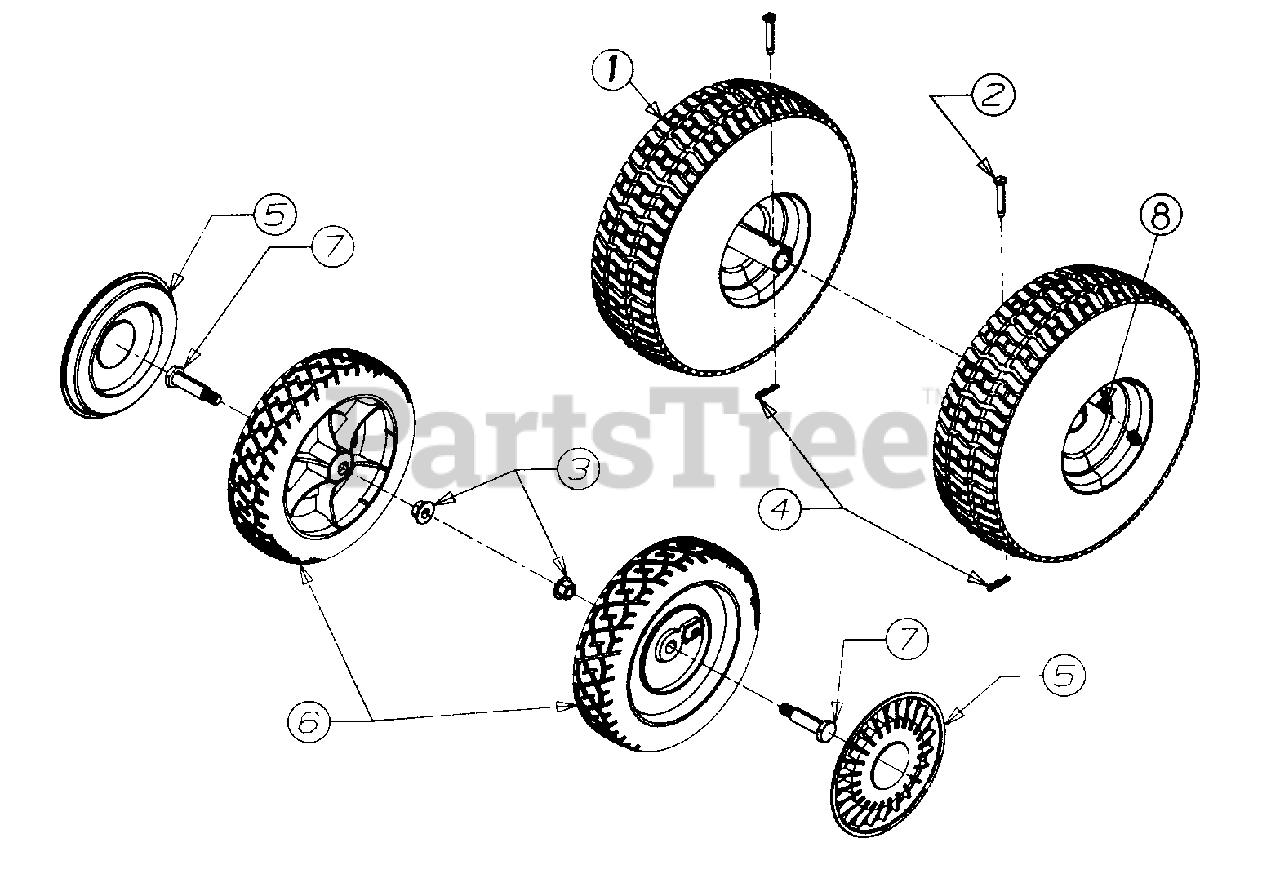

Wheel Assembly Complete Parts Diagram

  • Title

1

MTD 634-0100

WHEEL ASSY COMPLETE 4" X 10"

$

$

Not available

MTD 634-0101

RIM ASSY COMPLETE

Variations

MTD 634-0101-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 634-0101-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 634-0101-0662

Rim Assembly - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0101-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

MTD 734-1598

TIRE PNEUMATIC 4" X 10"
(Superseded to 734-1598-0901)

Variations

MTD 734-1598-0901

Tire, 648 4.10 /3.5 - Carlisle (0901)

$110.99

$

Usually ships in 3-6 days

0

MTD 734-1598-0902

Tire, 648 4.10 /3.5 - Dico (0902)

$110.99

$

Usually ships in 3-6 days

0

MTD 734-1598-0905

Tire, 648 4.10 /3.5 - Duro (0905)

$110.99

$

Usually ships in 3-6 days

0

$110.99

$

Usually ships in 3-6 days

0

2

MTD 711-1017

PIN - CLEVIS

$6.99

$

In Stock, only 2 left!

0

3

MTD 712-3005

NUT - HEX FLANGE

$6.49

$

Usually ships in 3-6 days

0

4

MTD 714-0104

PIN - COTTER

$3.99

$

In Stock, Qty 20+

0

5

MTD 731-0981A

HUB CAP
(Superseded to 731-0981C)

$9.99

$

In Stock, Qty 6

0

6

MTD 734-1793

WHEEL 2" X 8"

$

$

Not available

7

MTD 738-0213

SCREW - SHOULDER

$7.49

$

In Stock, Qty 5

0

8

MTD 734-0255

VALVE STEM
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0
