245-315B190 - White Outdoor Walk-Behind Lawn Vacuum, 8hp (1995) Chute Assembly Parts Diagram

Walk-Behind Lawn Vacuum, 8hp

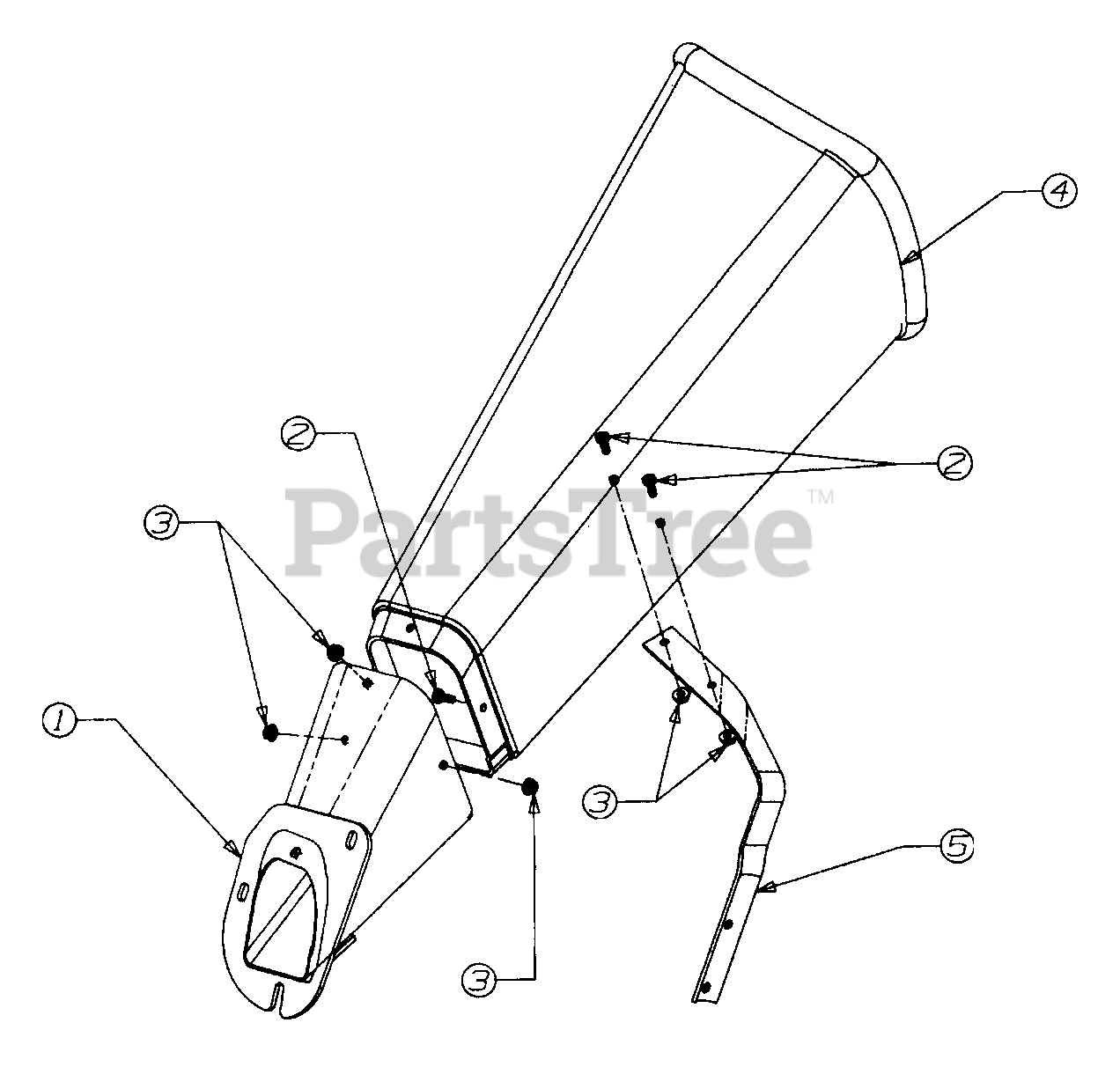

Chute Assembly Parts Diagram

  • Title

1

White Outdoor 681-0068

CHUTE ASSEMBLY
(Superseded to 681-0068A)

Variations

681-0068-0483

White Outdoor 681-0068-0483

ASSY-CHUTE - CHARCOAL GRAY (0483)

$177.99

$

Usually ships in 3-6 days

0

681-0068-0638

White Outdoor 681-0068-0638

ASSY-CHUTE - MTD/TROY-BILT RED (0638)

$

$

Not available

681-0068-0662

White Outdoor 681-0068-0662

ASSY-CHUTE - OYSTER GRAY (0662)

$

$

Not available

681-0068-0674

White Outdoor 681-0068-0674

ASSY-CHUTE - YARDMAN YELLOW (0674)

$

$

Not available

681-0068-0689

White Outdoor 681-0068-0689

ASSY-CHUTE - POLO GREEN (0689)

$

$

Not available

681-0068-0691

White Outdoor 681-0068-0691

CHUTE ASSEMBLY-BLACK JACK - BLACK JACK (0691)

$

$

Not available

$

$

2

White Outdoor 710-0258

SCREW HEX
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 712-3027

NUT - LOCK
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-1609

CHUTE -CHIPPER UPPER
(Superseded to 731-1574A)

$214.99

$

Usually ships in 3-6 days

0

5

White Outdoor 781-0625

BRACKET SUPPORT

Variations

781-0625-0483

White Outdoor 781-0625-0483

BRACKET-SUPPORT-CHIPP - CHARCOAL GRAY (0483)

$

$

Not available

781-0625-0498

White Outdoor 781-0625-0498

BRACKET-SUPPORT - OLD CUB YELLOW (0498)

$

$

Not available

781-0625-0637

White Outdoor 781-0625-0637

BRACKET-SUPPORT-CHIPP - POWDER BLACK (0637)

$

$

Not available

781-0625-0638

White Outdoor 781-0625-0638

BRACKET-SUPPORT-CHIPP - MTD/TROY-BILT RED (0638)

$

$

Not available

781-0625-0662

White Outdoor 781-0625-0662

BRACKET-SUPPORT-CHIPP - OYSTER GRAY (0662)

$

$

Not available

781-0625-0716

White Outdoor 781-0625-0716

BRACKET-SUPPORT-CHIPP - CUB YELLOW-99 (0716)

$

$

Not available

$

$

788-0637

BLACK

Note: Color Code

$

$

Not available

788-0662

OYSTER GRAY

Note: Color Code

$

$

Not available
