245-315B190 - White Outdoor Walk-Behind Lawn Vacuum, 8hp (1995) Friction Wheel Bearing Assembly Parts Diagram

Walk-Behind Lawn Vacuum, 8hp

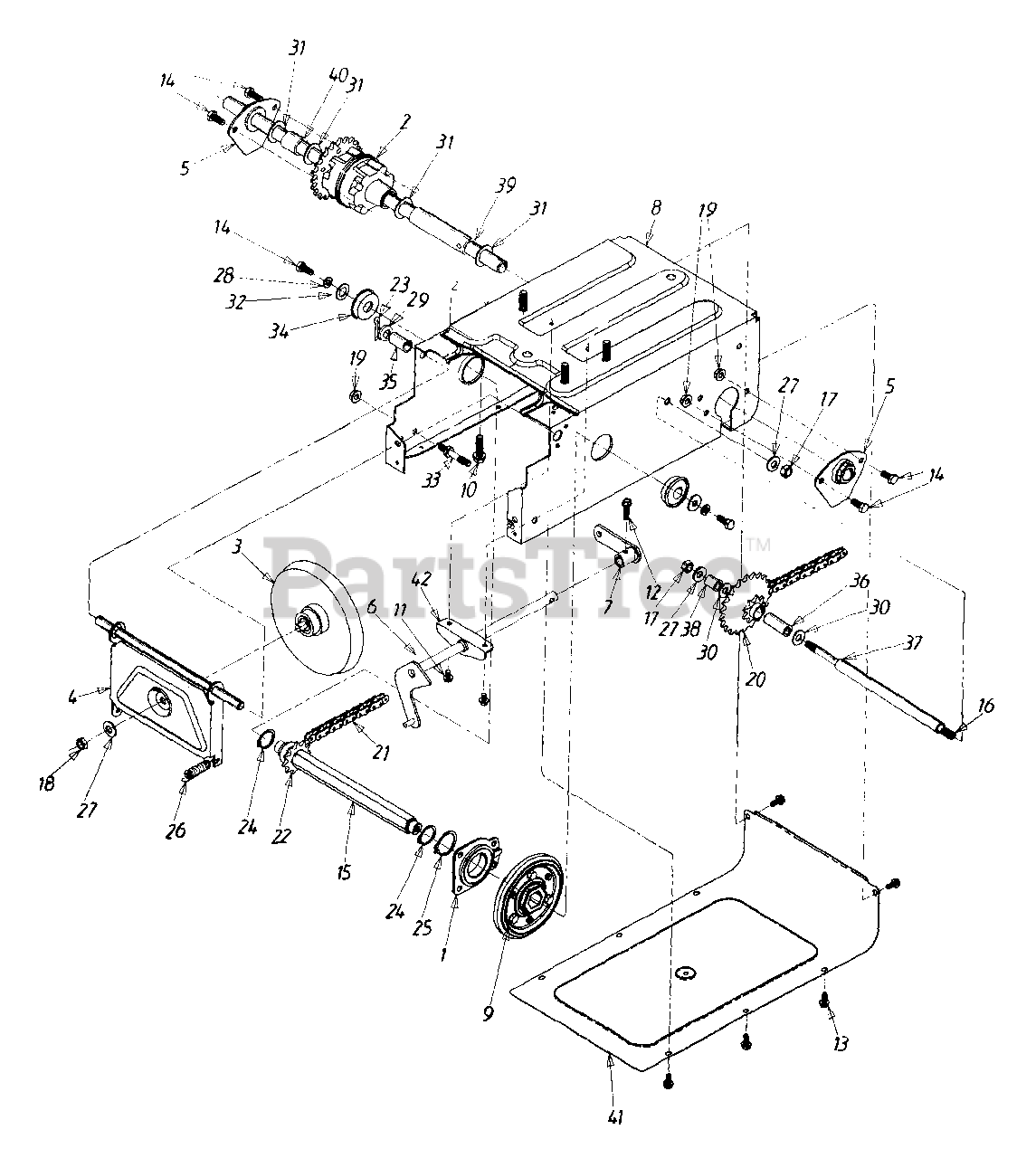

Friction Wheel Bearing Assembly Parts Diagram

  • Title

1

White Outdoor 618-0063

BEARING ASSY - FRICTION WHEEL

$85.99

$

Usually ships in 3-6 days

0

2

White Outdoor 618-0168

DIFFERENTIAL ASSY COMP.

$

$

Not available

3

White Outdoor 656-0009

DISC - FRICTION WHEEL ASSY COMP.
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

White Outdoor 756-0564

DISC - FRICTION WHEEL
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

White Outdoor 738-0865

BOLT - SHOULDER

$

$

Not available

White Outdoor 741-0600

BEARING - BALL
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

4

White Outdoor 681-0055

BRACKET ASSY - SUPPORT
(Superseded to 681-0055-0637)

Variations

White Outdoor 681-0055-0637

BRACKET-SUPPORT-FRICTION - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 681-0058

BRACKET ASSY - AXLE

$

$

Not available

6

White Outdoor 681-0069

SHAFT ASSY - SHIFT

$

$

Not available

7

White Outdoor 681-0072

ARM ASSY - SHIFT

Variations

White Outdoor 681-0072-0637

No Longer Available ARM-SHIFT-ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

8

White Outdoor 681-0073

FRAME ASSY

$

$

Not available

9

White Outdoor 684-0042

WHEEL ASSY - FRICTION
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

10

White Outdoor 710-0502A

SCREW - HEX SELF - TAP

$6.49

$

In Stock, Qty 8

0

11

White Outdoor 710-0653

SCREW - HEX WASHER

$4.49

$

In Stock, Qty 16

0

12

White Outdoor 710-0788

SCREW - HEX WASHER

$6.99

$

In Stock, only 4 left!

0

13

White Outdoor 710-0896

SCREW - HEX

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-3008

SCREW - HEX

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 711-1026

SHAFT - HEX

$

$

Not available

16

White Outdoor 711-1028

SHAFT - JACK

$

$

Not available

17

White Outdoor 712-0241

NUT - HEX

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0711

NUT - HEX JAM

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-3004A

NUT - HEX FLANGE LOCK

$3.49

$

In Stock, Qty 20+

0

20

White Outdoor 713-0330

SPROCKET & HUB

$

$

Not available

21

White Outdoor 713-0374

CHAIN

$23.99

$

Usually ships in 3-6 days

0

22

White Outdoor 713-0415

SPROCKET 11T

$

$

Not available

23

White Outdoor 714-0474

PIN - COTTER

$4.49

$

In Stock, Qty 16

0

24

White Outdoor 716-0102

RING - SNAP

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 716-0185

RING - SNAP

$3.49

$

Usually ships in 3-6 days

0

26

White Outdoor 732-0264

SPRING - EXTENSION 1
(Superseded to 932-0264)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 736-0105

WASHER - BELL

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0119

WASHER - LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 736-0160

WASHER - FLAT

$3.99

$

In Stock, only 2 left!

0

30

White Outdoor 736-0267

WASHER - FLAT

$4.49

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0287

WASHER - FLAT

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-3089

WASHER - FLAT

$

$

Not available

33

White Outdoor 738-0908

BOLT - IDLER

$

$

Not available

34

White Outdoor 741-0563

BEARING - BALL
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

35

White Outdoor 748-0382

SPACER

$

$

Not available

36

White Outdoor 750-0351

SLEEVE

$

$

Not available

37

White Outdoor 750-0978

SPACER

$

$

Not available

38

White Outdoor 750-0979

SPACER

$

$

Not available

39

White Outdoor 750-0980

SPACER

$

$

Not available

40

White Outdoor 750-0981

SPACER

$

$

Not available

41

White Outdoor 781-0612

COVER - FRAME

Variations

White Outdoor 781-0612-0483

No Longer Available COVER-FRAME - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0612-0662

No Longer Available COVER-FRAME - OYSTER GRAY (0662)

$

$

Not available

$

$

42

White Outdoor 784-5590

BRACKET - SHIFT

Variations

White Outdoor 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

788-0637

BLACK

Note: COLOR CODE

$

$

Not available

788-0662

OYSTER GRAY

Note: COLOR CODE

$

$

Not available
