245-315B190 - White Outdoor Walk-Behind Lawn Vacuum, 8hp (1995) Handle Assy. Parts Diagram

Walk-Behind Lawn Vacuum, 8hp

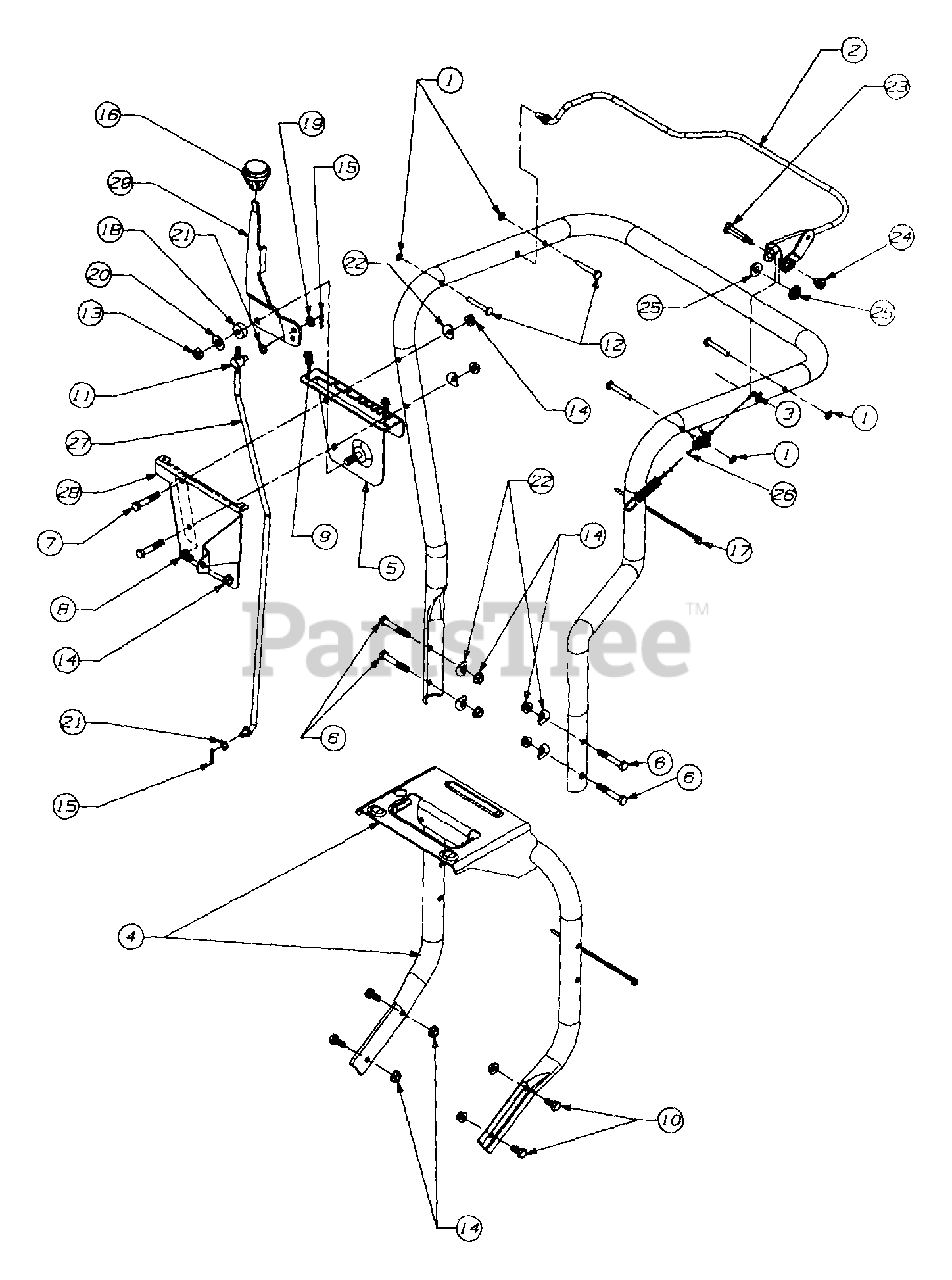

Handle Assy. Parts Diagram

  • Title

1

White Outdoor 1539-019

PUSHNUT

$3.99

$

In Stock, Qty 16

0

2

White Outdoor 647-0019

CONTROL ASSY

Variations

White Outdoor 647-0019-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 647-0019-0498

No Longer Available CONTROL-ASSY-CLUTC - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 647-0019-0637

CONTROL-ASSY-CLUTCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 647-0019-0638

No Longer Available CONTROL-ASSY-CLUTC - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 647-0019-0662

CONTROL-ASSY-CLUTCH - OYSTER GRAY (0662)

$

$

Not available

$

$

3

White Outdoor 649-0008

HANDLE ASSY - UPPER

Variations

White Outdoor 649-0008-0483

No Longer Available HANDLE-ASSY-UPPER - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 649-0008-0498

No Longer Available HANDLE-ASSY-UPPER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 649-0008-0637

No Longer Available HANDLE-ASSY-UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 649-0008-0638

No Longer Available HANDLE-ASSY-UPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 649-0008-0648

No Longer Available HANDLE-ASSY-UPPER - TECH GRAY (0648)

$

$

Not available

White Outdoor 649-0008-0662

Handle Assembly, Upper - OYSTER GRAY (0662)

$

$

Not available

$

$

4

White Outdoor 649-0012

HANDLE ASSY - LOWER

Variations

White Outdoor 649-0012-0483

HANDLE-ASSY-LOWER - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 649-0012-0637

No Longer Available HANDLE-ASSY-LOWER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 649-0012-0638

No Longer Available HANDLE-ASSY- - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 649-0012-0650

No Longer Available HANDLE-ASSY-LOWER - RED METALLIC (0650)

$

$

Not available

White Outdoor 649-0012-0662

Handle Assembly, Lower - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 649-0012-0716

HANDLE-ASSY-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

5

White Outdoor 681-0076

BRACKET ASSY - SHIFT

Variations

White Outdoor 681-0076-0483

BRACKET-SHIFT-ASSY - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 681-0076-0498

BRACKET-SHIFT-ASSY - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 681-0076-0637

BRACKET-SHIFT-ASSY - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0076-0638

BRACKET-SHIFT-ASSY - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 681-0076-0650

BRACKET-SHIFT-ASSY - RED METALLIC (0650)

$

$

Not available

White Outdoor 681-0076-0662

BRACKET-SHIFT-ASSY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 681-0076-0689

BRACKET-SHIFT-ASSY - POLO GREEN (0689)

$

$

Not available

White Outdoor 681-0076-0716

BRACKET-SHIFT-ASSY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

White Outdoor 710-0116

SCREW - HEX
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 19

0

7

White Outdoor 710-0380

SCREW - HEX
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0621

SCREW - HEX
(Superseded to 710-3039)

$

$

Not available

9

White Outdoor 710-0896

SCREW - HEX

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-3008

SCREW - HEX

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 711-0677

FERRULE
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

12

White Outdoor 711-0737

PIN - STUD
(Superseded to 911-0737)

$4.49

$

In Stock, Qty 11

0

13

White Outdoor 712-0116

NUT - HEX LOCK

$4.49

$

In Stock, Qty 7

0

14

White Outdoor 712-3004A

NUT - HEX LOCK

$3.49

$

In Stock, Qty 20+

0

15

White Outdoor 714-0104

PIN - COTTER

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 720-0232

KNOB - SHIFT
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

17

White Outdoor 725-0157

CABLE TIE

$3.49

$

In Stock, only 4 left!

0

18

White Outdoor 735-0126

WASHER - RUBBER
(Superseded to 735-0126A)

$

$

Not available

19

White Outdoor 736-0264

WASHER - FLAT

$6.49

$

In Stock, only 1 left!

0

20

White Outdoor 736-0300

WASHER - FLAT

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0413

WASHER - SPRING

$6.49

$

In Stock, only 3 left!

0

22

White Outdoor 736-0451

WASHER - SADDLE

$3.99

$

In Stock, only 2 left!

0

23

White Outdoor 738-0560

SCREW - SHOULDER
(Superseded to 938-0560)

$9.99

$

In Stock, only 2 left!

0

24

White Outdoor 738-0561

NUT - SHOULDER
(Superseded to 938-0561)

$9.49

$

In Stock, only 1 left!

0

25

White Outdoor 741-0402

BEARING - FLANGE PLASTIC
(Superseded to 941-0402)

$

$

Not available

26

White Outdoor 746-0921

CABLE - CLUTCH
(Superseded to 946-0921)

$55.99

$

In Stock, only 4 left!

0

27

White Outdoor 747-0626

ROD - SHIFT

$

$

Not available

28

White Outdoor 781-0626

COVER - SHIFT

Variations

White Outdoor 781-0626-0483

COVER-SHIFT - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0626-0637

COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0626-0650

COVER-SHIFT - RED METALLIC (0650)

$

$

Not available

White Outdoor 781-0626-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

$

$

29

White Outdoor 784-0297

HANDLE - SHIFT
(Superseded to 784-0297A)

$

$

Not available
