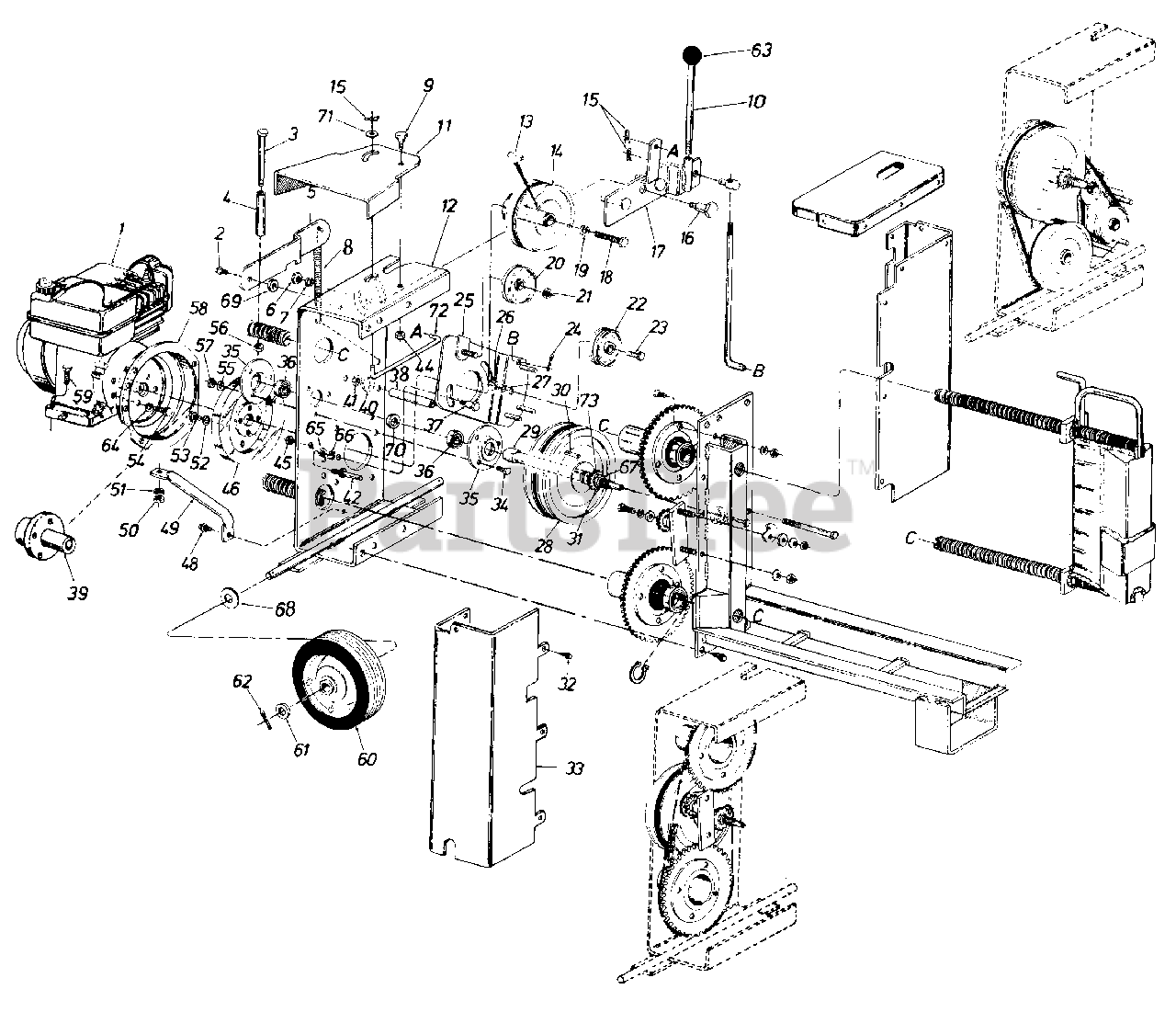

245-635-000 - MTD Log Splitter (1985) Parts Parts Diagram

Log Splitter

Parts Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 710-0649

Hex. Wash. SF Tapp Scr. 3/8" x 7/8" Lg.

$

$

Not available

3

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$13.99

$

In Stock, only 2 left!

0

4

MTD 750-0537

Spacer 3/8 I.D. x 5/8 O.D. x 2-5/8 Lg.

$

$

Currently unavailable

5

MTD 14822

Spring Retainer Bracket

$

$

Currently unavailable

6

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

7

MTD 736-0169

L.-Wash. 3/8 I.D.*

$3.49

$

In Stock, Qty 20+

0

8

MTD 732-0121

Spring
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

9

MTD 738-0147

Shld. Bolt

$

$

Not available

10

MTD 747-0389

Engagement Handle

$

$

Currently unavailable

11

MTD 14896

Lever Return Bracket

$

$

Currently unavailable

12

MTD 14809

Motor Mounting Plate Ass'y.

$

$

Currently unavailable

13

MTD 714-0139

Sq. Key 3/16 x 2.0" Lg.

$8.49

$

Usually ships in 3-6 days

0

14

MTD 756-0382

Step Pulley

$

$

Currently unavailable

15

MTD 714-0104

Internal Cotter Pin 1/8" Dia.

$3.99

$

In Stock, Qty 20+

0

16

MTD 738-0322

Shld. Bolt
(Superseded to 738-0322A)

$6.49

$

In Stock, Qty 5

0

17

MTD 14716

Engagement Handle Brkt. Ass'y.

$

$

Currently unavailable

18

MTD 710-0830

Hex Bolt 3/8-24 x 3.0 Lg.*

$

$

Not available

19

MTD 736-0169

L.-Wash. 3/8 I.D.*

$3.49

$

In Stock, Qty 20+

0

20

MTD 756-0225

Idler Pulley

$

$

Not available

21

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

22

MTD 756-0225

Idler Pulley 2-3/4

$

$

Not available

23

MTD 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.*

$5.49

$

In Stock, only 1 left!

0

24

MTD 714-0474

Cotter Pin 1/8" Dia. x 3/4" Lg. *

$4.49

$

In Stock, Qty 16

0

25

MTD 14811

Engagement Bracket Ass'y.

$

$

Currently unavailable

26

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

27

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

28

MTD 756-0381

Engine Pulley

$

$

Currently unavailable

29

MTD 738-0525

Jack Shaft Spindle

$

$

Not available

30

MTD 714-0139

Sq. Key 3/16 x 2.0 Lg.*

$8.49

$

Usually ships in 3-6 days

0

31

MTD 713-0298

Sprocket 12T #20 Chain

$

$

Currently unavailable

32

MTD 710-0600

Hex. Wash. TT Tapp Scr. 3/8x 1/2" Lg.

$3.49

$

Usually ships in 3-6 days

0

33

MTD 14721

Belt Cover R.H.

$

$

Currently unavailable

34

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

35

MTD 08253

Small Bearing Housing
(Superseded to 08253B)

$17.99

$

In Stock, only 3 left!

0

36

MTD 741-0919

Ball Bearing .787 I.D. x 1.85 O.D.
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

37

MTD 738-0183

Shld. Bolt
(Superseded to 938-0183)

$

$

Not available

38

MTD 750-0531

Spacer .38 I.D. x 62 O.D. 4.5 Lg.

$

$

Currently unavailable

39

MTD 711-0743

Fly Wheel Mtg. Hub

$

$

Currently unavailable

40

MTD 736-0133

Fl.-Wash. 3/8 I.D. x 1.25 O.D. x .10

$4.99

$

In Stock, Qty 7

0

41

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

42

MTD 711-0735

Stud 1/4" x 2-7/8" Lg.

$

$

Currently unavailable

44

MTD 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

45

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

46

MTD 719-0258

Flywheel

$

$

Currently unavailable

MTD 750-0528

Spacer 3/8 I.D. x .50 O.D. x 18
(Superseded to 950-0528)

$

$

Not available

48

MTD 710-0649

Hex Wash. SF Tapp Scr. 3/8 x 7/8

$

$

Not available

49

MTD 749-0493

Engine Brace

$

$

Currently unavailable

50

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-0119

L.-Wash. 5/16 I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

53

MTD 710-0849

Socket Hd. Scr. 1/4-28 x 1.50" Lg. *

$

$

Not available

54

MTD 710-0237

Hex Bolt 5/16-24 x 5/8" Lg.*

$4.49

$

Usually ships in 3-6 days

0

55

MTD 736-0119

L.-Wash. 5/16 I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

56

MTD 712-0375

Hex Cent. L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

57

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 14700

Motor Mount Cup

$

$

Currently unavailable

59

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg. *

$4.49

$

In Stock, Qty 20+

0

60

MTD 734-0736

Wheel Ass'y. 10.0 x 2.75

$

$

Not available

61

MTD 736-0116

Fl.-Wash. 5/8 I.D. x 93 O.D. x .06
(Superseded to 936-0116)

$6.49

$

In Stock, only 1 left!

0

62

MTD 714-0115

CotterPin 1/8" x 1.0" Lg.*

$3.99

$

In Stock, only 1 left!

0

63

MTD 720-0175

Ball Knob
(Superseded to 931-0009A)

$13.99

$

In Stock, Qty 5

0

64

MTD 736-0119

L.-Wash. 5/16 I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

65

MTD 712-0375

Hex Cent. L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

66

MTD 736-0105

Bell.-Wash.

$3.99

$

In Stock, Qty 20+

0

67

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

68

MTD 736-0237

Fl.-Wash. .62" I.D. x 1.25"O.D.

$3.99

$

In Stock, Qty 20+

0

69

MTD 750-0528

Spacer .38" I.D. x .50" O.D. x.187" Lg.
(Superseded to 950-0528)

$

$

Not available

70

MTD 750-0540

Spacer.79" I.D. x 1.00" O.D. x.177" Lg.

$

$

Currently unavailable

71

MTD 736-0159

Fl.-Wash. 5/16" I.D. x 3/8" O.D.

$3.99

$

In Stock, Qty 20+

0

72

MTD 747-0407

Rod Lever Return

$

$

Currently unavailable

73

MTD 736-0158

L.-Wash. 5/8" I.D.*

$4.49

$

In Stock, only 2 left!

0
