245-635-000 - MTD Log Splitter (1985) Parts Parts Diagram

Log Splitter

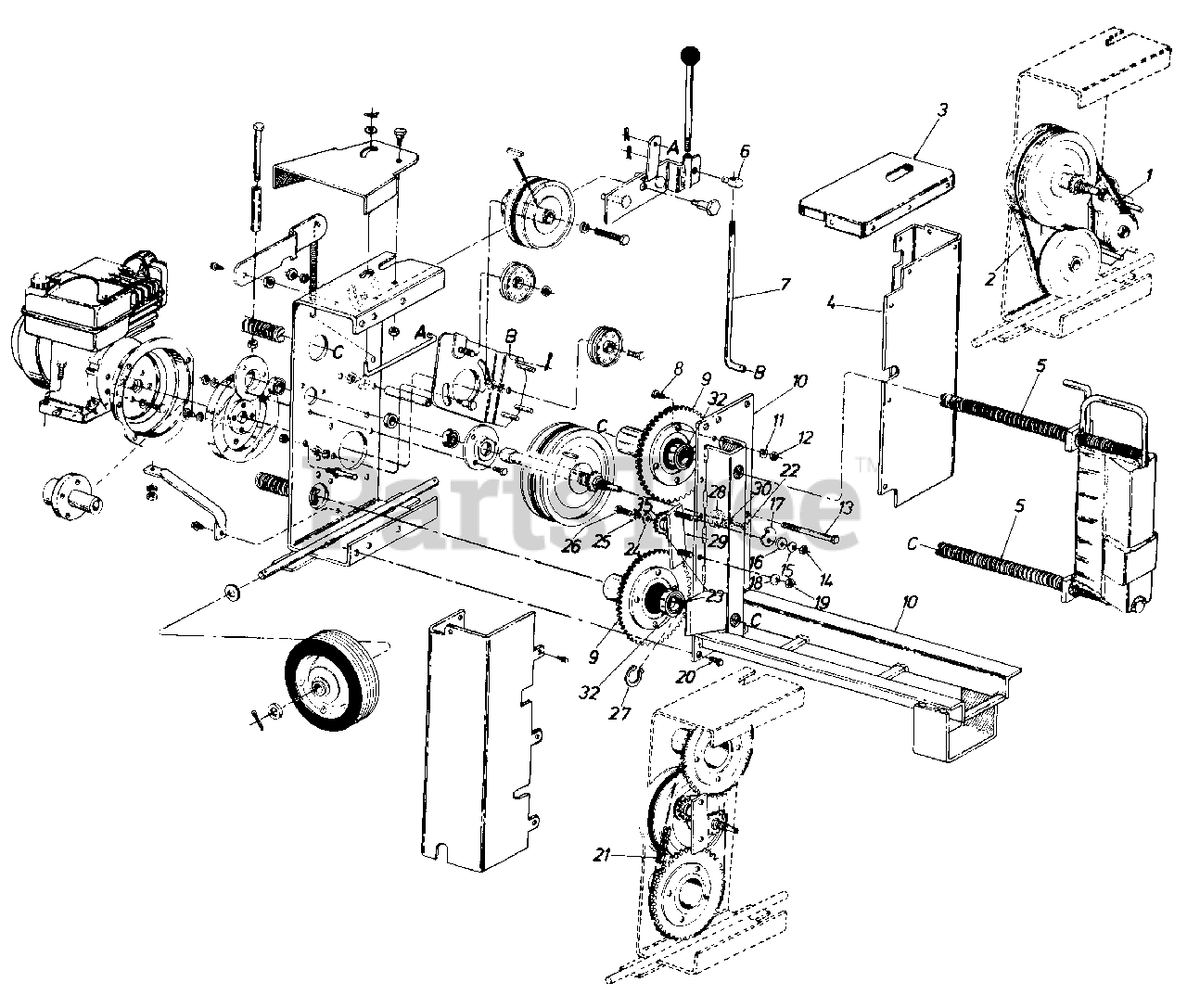

Parts Parts Diagram

  • Title

1

MTD 754-0244

V-Belt 1/2 x 40" Lg.
(Superseded to 954-0244)

Note: (Reverse)

$39.99

$

Usually ships in 3-6 days

0

2

MTD 754-0235

V-Belt 1/2 x 35 Lg.

Note: (Forward)

$

$

Not available

3

MTD 14719

End Cover

$

$

Currently unavailable

4

MTD 14720

L.H. Belt Cover

$

$

Currently unavailable

5

MTD 14722

Comp. Wedge & Screw Ass'y.

$

$

Currently unavailable

6

MTD 711-0198

Adjustment Ferrule
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

7

MTD 747-0388

Lever Rod

$

$

Currently unavailable

8

MTD 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 17

0

9

MTD 14714

Sprocket Hub Ass'y.

$

$

Currently unavailable

10

MTD 14707

Frame Weldment Ass'y.

$

$

Currently unavailable

11

MTD 712-0267

L.-Wash 5/16" 1.D.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0831

Hex Bolt 3/8-16 x 5.5" Lg.

$

$

Not available

14

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

15

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

16

MTD 736-0258

Fl.-Wash. 3/8 I.D. x 1.0 O.D. x 13

$4.49

$

In Stock, only 2 left!

0

17

MTD 06605

Chain Adjuster

$

$

Currently unavailable

18

MTD 736-0105

Bell Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-0798

Hex Nut 3/8-16 Thd. *

$3.99

$

Usually ships in 3-6 days

0

20

MTD 710-0413

Hex Wash. SF Tapp Scr. 3/8 x 7/8" Lg.
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

21

MTD 713-0302

131 Link Chain #420

$

$

Currently unavailable

MTD 713-0154

Master Link #420
(Superseded to 913-0154)

$

$

Not available

22

MTD 710-0513

Hex Scr. 1/4-28 x .62" Lg.
(Superseded to 710-0513A)

$4.49

$

In Stock, Qty 10

0

23

MTD 14715

10 Tooth Sprocket Ass'y.

$

$

Currently unavailable

24

MTD 736-0133

Fl.-Wash. 3/8 I.D. x 1.25 O.D. x 10 Thd.

$4.99

$

In Stock, Qty 7

0

25

MTD 736-0169

L.-Wash . 3/8" I.D. *

$3.49

$

In Stock, Qty 20+

0

26

MTD 710-0152

Hex BoIt 3/8-24 x 1.0" Lg.*
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

27

MTD 716-0134

Snap Ring 45mm.

$

$

Not available

28

MTD 741-0133

Ball Bearing .50 I.D. x 1.38 O.D. x .437

$33.99

$

Usually ships in 3-6 days

0

29

MTD 14709

Idler Bracket Ass'y. Comp.

$

$

Currently unavailable

30

MTD 736-0173

Fl.-Wash. 1/4 I.D. x 3/4 O.D. x.063

$3.99

$

In Stock, Qty 10

0

MTD 710-0412

Hex Bolt 1/4-24 x 3/4" Lg.

$5.49

$

In Stock, Qty 9

0

32

MTD 741-0355

Ball Bearing

$

$

Currently unavailable

MTD 710-0650

Hex Wash. SF Tapp Scr. 5/16 x 7/8

$3.99

$

In Stock, Qty 20+

0

MTD 710-0600

Hex Wash. SF Tapp Scr. 5/16 x 1/2

$3.49

$

Usually ships in 3-6 days

0

35

MTD 750-0543

Spacer.380" I.D. x .625" O.D. x 1.0" Lg.

Note: (Goes inside of Ref. No. 23)

$

$

Not available
