245 R - Husqvarna String Trimmer (SN: 19941400001 - 19962200000) CARBURETOR DETAILS Parts Diagram

String Trimmer

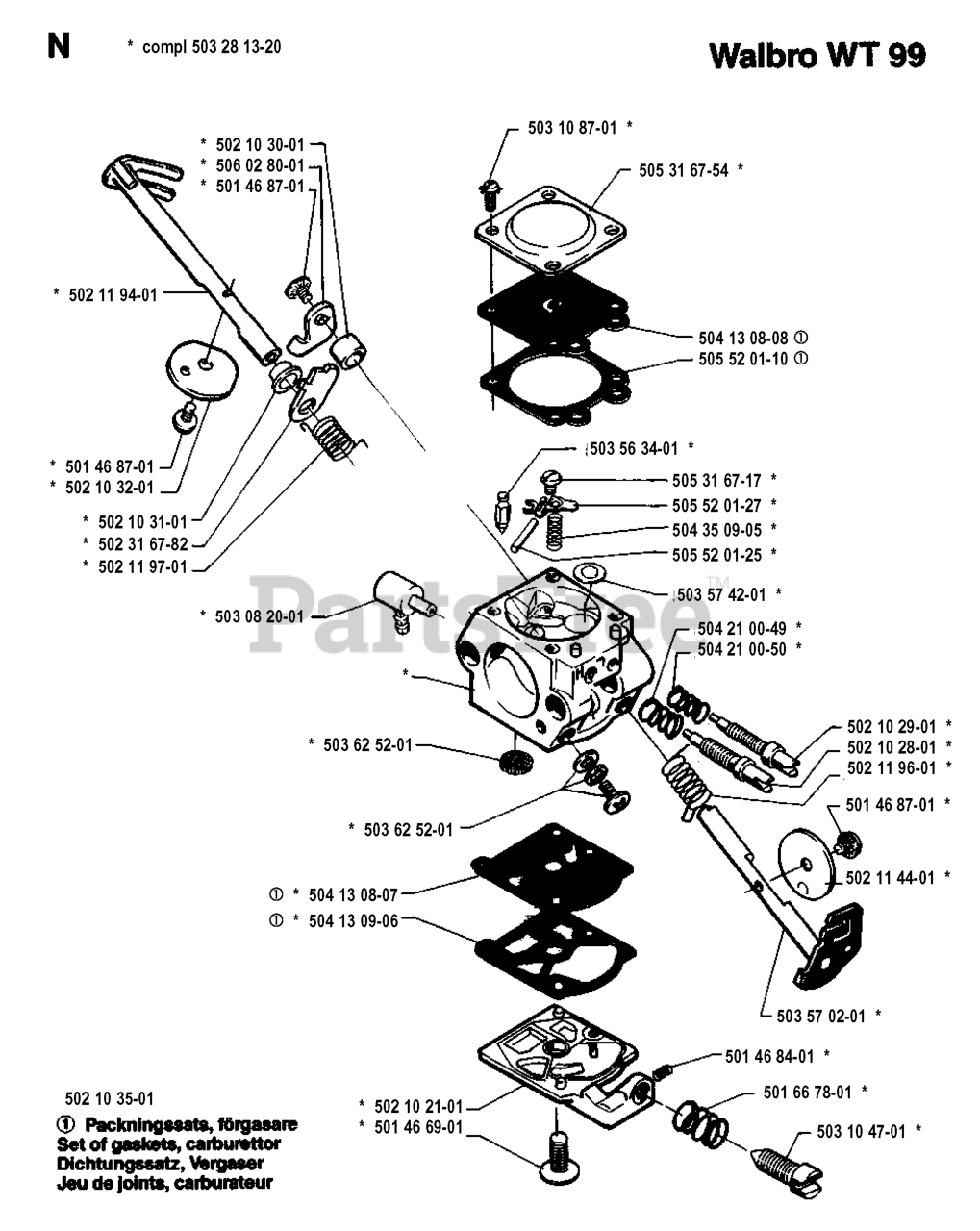

CARBURETOR DETAILS Parts Diagram

  • Title

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$3.49

$

In Stock, only 3 left!

0

503 10 47-01

Husqvarna 503104701

SCREW

$14.99

$

In Stock, only 1 left!

0

502 10 31-01

Husqvarna 502103101

BUSHING

$10.99

$

Usually ships in 3-10 days

0

505 31 67-17

Husqvarna 505316717

SCREW

$7.99

$

In Stock, Qty 6

0

501 66 78-01

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$

$

Not available

503 57 42-01

Husqvarna 503574201

WELCH PLUG

$9.49

$

In Stock, only 2 left!

0

503 62 52-01

Husqvarna 503625201

SCREW

$

$

Not available

502 31 67-82

Husqvarna 502316782

$

$

Currently unavailable

501 46 87-01

Husqvarna 501468701

SCREW

$7.99

$

In Stock, Qty 16

0

505 52 01-27

Husqvarna 505520127

LEVER

$

$

Not available

502 11 44-01

Husqvarna 502114401

Throttle Flap

$

$

Not available

506 02 80-01

Husqvarna 506028001

STARTER LEVER

$

$

Not available

502 10 29-01

Husqvarna 502102901

LO-SPEED NEEDLE

$8.99

$

Usually ships in 3-10 days

0

504 35 09-05

Husqvarna 504350905

Spring

$

$

Not available

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

504 21 00-49

Husqvarna 504210049

SPRING, H-NEEDLE

$17.99

$

In Stock, only 4 left!

0

504 13 08-07

Husqvarna 504130807

PUMP DIAPHRAGM

Note: SET OF GASKETS

$37.99

$

In Stock, Qty 20+

0

501 46 84-01

Husqvarna 501468401

SPRING

$7.99

$

In Stock, only 1 left!

0

502 10 21-01

Husqvarna 502102101

Pump Cover

$

$

Not available

502 10 32-01

Husqvarna 502103201

Choke Flap

$

$

Not available

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$22.99

$

In Stock, Qty 5

0

502 11 97-01

Husqvarna 502119701

SPRING

$1.49

$

In Stock, only 1 left!

0

502 10 35-01

Husqvarna 502103501

REPAIR KIT DIAPHRAGM SET

Note: SET OF GASKETS

$

$

Not available

502 10 30-01

Husqvarna 502103001

SPACER

$14.99

$

Usually ships in 3-10 days

0

505 31 67-54

Husqvarna 505316754

DIAPHRAGM COVER

$5.99

$

Usually ships in 3-10 days

0

504 13 08-08

Husqvarna 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

Note: SET OF GASKETS

$56.99

$

In Stock, Qty 9

0

502 10 28-01

Husqvarna 502102801

HI-SPEED NEEDLE

$

$

Not available

502 11 94-01

Husqvarna 502119401

CHOKE SHAFT

$

$

Not available

503 57 02-01

Husqvarna 503570201

SHAFT ASS'Y/THROTTLE

$

$

Not available

501 46 69-01

Husqvarna 501466901

SCREW

$9.49

$

In Stock, Qty 5

0

502 11 96-01

Husqvarna 502119601

SPRING

$

$

Not available

504 13 09-06

Husqvarna 504130906

GASKET

Note: SET OF GASKETS

$13.99

$

In Stock, Qty 5

0

504 21 00-50

Husqvarna 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$3.49

$

Usually ships in 3-10 days

0

503 28 13-20

Husqvarna 503281320

CARBURETOR

$

$

Not available

503 08 20-01

Husqvarna 503082001

NIPPLE

$5.99

$

In Stock, only 2 left!

0

505 52 01-10

Husqvarna 505520110

GASKET, METERING SIDE

Note: SET OF GASKETS

$

$

Not available
