245 RX - Husqvarna String Trimmer (SN: 19962200001 - 19984000000) BEVEL GEAR & SHAFT Parts Diagram

String Trimmer

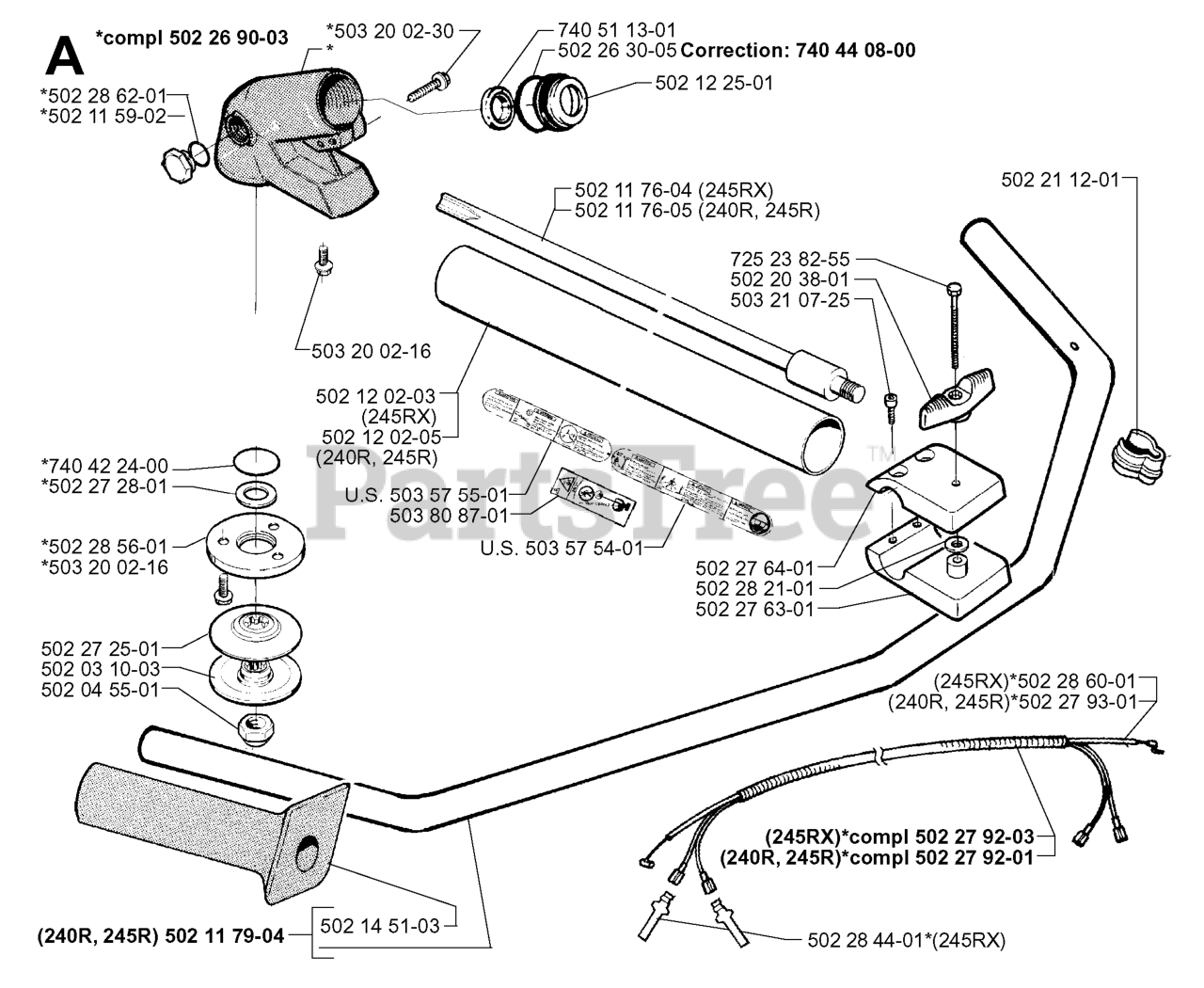

BEVEL GEAR & SHAFT Parts Diagram

  • Title

502 11 79-04

Husqvarna 502117904

HANDLE
(Superseded to 502117906)

Note: 240R, 245R

$

$

Not available

503 21 07-25

Husqvarna 503210725

SCREW

$4.99

$

In Stock, Qty 6

0

503 80 87-01

Husqvarna 503808701

REPL BY 503 90 13-01
(Superseded to 503901301)

$

$

Not available

502 12 25-01

Husqvarna 502122501

HOLDER

$

$

Not available

502 27 92-03

Husqvarna 502279203

CABLES COMPLETE

Note: 245RX

$

$

Not available

502 12 02-05

Husqvarna 502120205

TUBE

Note: 240R, 245R

$

$

Not available

502 27 63-01

Husqvarna 502276301

BRACKET

$

$

Not available

502 28 21-01

Husqvarna 502282101

WASHER

$4.99

$

Usually ships in 3-10 days

0

502 27 28-01

Husqvarna 502272801

Seal Ring

$

$

Not available

503 20 02-16

Husqvarna 503200216

SCREW

$3.99

$

In Stock, Qty 11

0

502 27 93-01

Husqvarna 502279301

WIRE

Note: 240R, 245R

$

$

Not available

502 27 92-01

Husqvarna 502279201

HARNESS

Note: 240R, 245R

$

$

Not available

502 11 76-04

Husqvarna 502117604

SHAFT
(Superseded to 537014001)

Note: 245RX

$

$

Not available

502 11 76-05

Husqvarna 502117605

SHAFT
(Superseded to 537014002)

Note: 240R, 245R

$

$

Not available

502 28 56-01

Husqvarna 502285601

Gear Housing Cover

$

$

Not available

725 23 82-55

Husqvarna 725238255

SCREW M6S 6X60
(Superseded to 725238281)

$5.99

$

In Stock, only 3 left!

0

740 44 08-00

Husqvarna 740440800

O-Ring

$

$

Not available

502 12 02-03

Husqvarna 502120203

SHAFT

Note: 245RX

$

$

Not available

502 27 64-01

Husqvarna 502276401

BRACKET

$

$

Not available

503 57 54-01

Husqvarna 503575401

DECAL

Note: U.S.

$

$

Not available

502 28 62-01

Husqvarna 502286201

OIL PLUG WASHER

$

$

Not available

502 28 44-01

Husqvarna 502284401

Spring

Note: 245RX

$

$

Not available

503 20 02-30

Husqvarna 503200230

SCREW

$4.99

$

In Stock, Qty 11

0

502 11 59-02

Husqvarna 502115902

PLUG

$21.99

$

In Stock, only 1 left!

0

502 14 51-03

Husqvarna 502145103

HANDLE
(Superseded to 502145102)

$23.99

$

Usually ships in 3-10 days

0

502 04 55-01

Husqvarna 502045501

LOCKNUT 12X1.75
(Superseded to 732252201)

$1.99

$

In Stock, only 3 left!

0

502 28 60-01

Husqvarna 502286001

THROTTLE CABLE
(Superseded to 502286008)

Note: 245RX

$51.99

$

Usually ships in 3-10 days

0

740 42 24-00

Husqvarna 740422400

O-RING

$

$

Not available

503 57 55-01

Husqvarna 503575501

DECAL

Note: U.S.

$

$

Not available

502 26 90-03

Husqvarna 502269003

GEAR HEAD ASSY
(Superseded to 502285704)

$395.99

$

Usually ships in 3-10 days

0

502 03 10-03

Husqvarna 502031003

FLANGE

$

$

Not available

502 20 38-01

Husqvarna 502203801

HANDLE

$8.99

$

In Stock, Qty 8

0

740 51 13-01

Husqvarna 740511301

SEALING RING

$

$

Not available

502 21 12-01

Husqvarna 502211201

GROMMET

$4.99

$

In Stock, only 1 left!

0

502 27 25-01

Husqvarna 502272501

DRIVER

$

$

Not available
