2450 (86069) - Snapper Walk-Behind Trimmer 2450R.T. Handle Assm'y Parts Diagram

Walk-Behind Trimmer

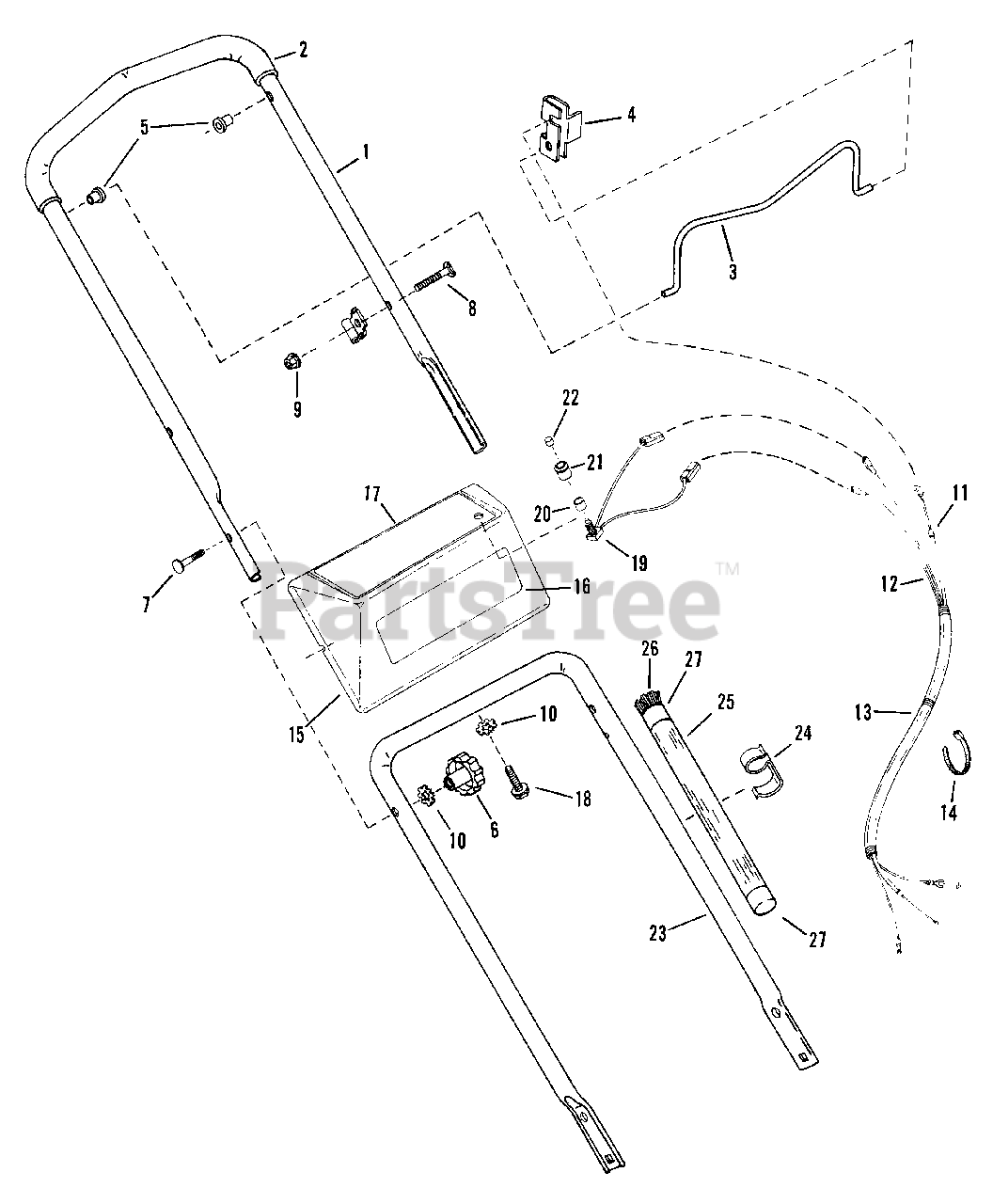

2450R.T. Handle Assm'y Parts Diagram

  • Title

1

Snapper 36330

HANDLE, Upper

$

$

Currently unavailable

2

Snapper 7023901

GRIP, Foam
(Superseded to 7023901YP)

Note: Was 23688

$8.49

$

In Stock, only 2 left!

0

3

Snapper 7017072

BAIL, Throttle
(Superseded to 7047011YP)

$

$

Not available

4

Snapper 7033904

CLIP, Throttle
(Superseded to 7034872YP)

Note: Was 32829

$5.99

$

In Stock, only 1 left!

0

5

Snapper 7014343

BUSHING, Bail
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7023735

KNOB, 5/16-18 Plastic
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091013

BOLT, 5/16-18 x 2" Curved Head
(Superseded to 7091013SM)

$5.49

$

In Stock, only 2 left!

0

8

Snapper 7016242

BOLT, 1/4-20 x 1-1/2" Curved Head

$

$

Currently unavailable

9

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, only 2 left!

0

10

Snapper 7090189

WASHER, 5/16 Int./Ext. Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, Qty 19

0

11

Snapper 7023526

ASSEMBLY, Throttle Cable

$

$

Currently unavailable

12

Snapper 7023573

HARNESS, Wire

$

$

Currently unavailable

13

Snapper 7023762

SHEATH, Harness

$

$

Currently unavailable

14

Snapper 23779

TIE, Cable

$

$

Currently unavailable

15

Snapper 7051819

ASSEMBLY, Panel/Label

Note: (Includes items 16 & 17)

$

$

Currently unavailable

16

Snapper 7023570

LABEL, Model

$

$

Currently unavailable

17

Snapper 7023571

LABEL, Instruction

$

$

Currently unavailable

18

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

19

Snapper 7023877

SWITCH

$

$

Not available

20

Snapper 7023878

SPACER, Switch

$

$

Currently unavailable

21

Snapper 7023879

BEZEL, Switch

$

$

Currently unavailable

22

Snapper 7015620

CAP, Switch

$

$

Not available

23

Snapper 7036329

HANDLE, Lower

$

$

Currently unavailable

24

Snapper 7023530

CLIP, Wire

$

$

Currently unavailable

25

Snapper 19107

TUBE, Plastic

$

$

Currently unavailable

26

Snapper 15520

LINE, .105 DIA. (50 PIECES)

$

$

Currently unavailable

27

Snapper 19108

CAP, Tube

$

$

Currently unavailable
