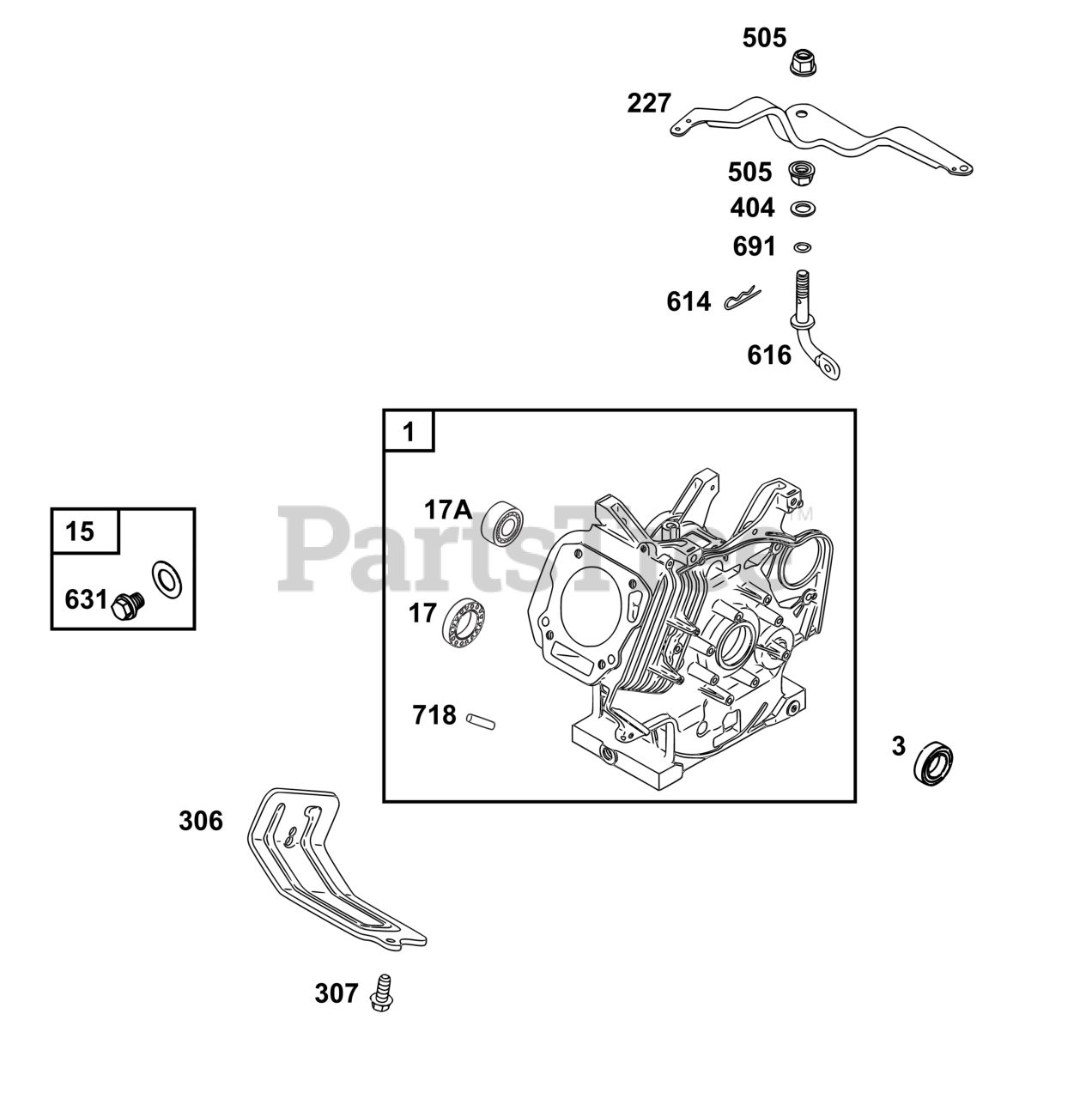

245437-0802-E1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 715357

CYLINDER ASSEMBLY

$

$

Not available

3

Briggs & Stratton 291675S

SEAL, Oil

Note: (Magneto Side)

$6.99

$

In Stock, Qty 13

0

15

Briggs & Stratton 715000

PLUG, Oil Drain
(Superseded to 716516)

$9.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 710528

BEARING, Ball

Note: (Cylinder)

$36.99

$

Usually ships in 2-12 days

0

17A

Briggs & Stratton 710482

BEARING, Ball

Note: (Cylinder)

$16.99

$

Usually ships in 2-12 days

0

227

LEVER, Governor Control

Note: (Part information located in Controls Group.)

$

$

Not available

306

Briggs & Stratton 710242

SHIELD, Cylinder

$18.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 710023

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 13

0

404

Briggs & Stratton 710058

WASHER

Note: (Governor Crank)

$3.99

$

Usually ships in 2-12 days

0

505

NUT

Note: (Part information located in Controls Group.)

$

$

Not available

614

Briggs & Stratton 710056

PIN, Cotter

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 710560

CRANK, Governor

$20.99

$

Usually ships in 2-12 days

0

631

Briggs & Stratton 710004

WASHER

Note: (Oil Drain Plug)

$3.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 710055

SEAL, Governor Shaft

$6.99

$

Usually ships in 2-12 days

0

718

PIN, Locating

$

$

Not available
