245437-0802-E1 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

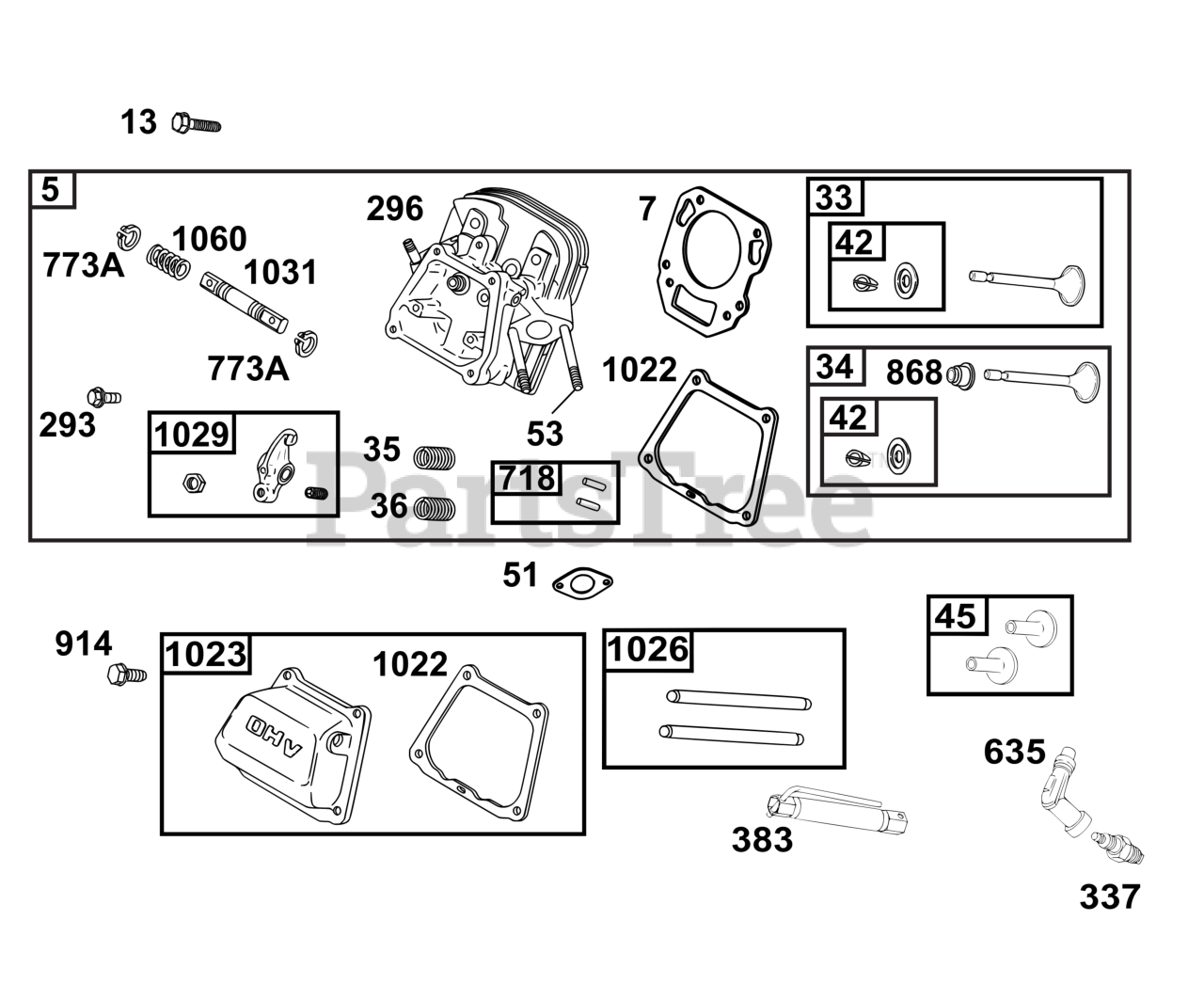

Cylinder Head Group Parts Diagram

  • Title

5

Briggs & Stratton 716160

HEAD, Cylinder

$

$

Not available

7

Briggs & Stratton 710539

GASKET, Cylinder Head

$14.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 710204

SCREW

Note: (Cylinder Head)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 716519

VALVE, Exhaust

$

$

Not available

34

Briggs & Stratton 716080

VALVE, Intake

$59.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 691279

SPRING, Valve

Note: (Intake)

$5.99

$

In Stock, only 3 left!

0

36

Briggs & Stratton 691279

SPRING, Valve

Note: (Exhaust)

$5.99

$

In Stock, only 3 left!

0

42

Briggs & Stratton 84012308

KEEPER, Valve

$6.49

$

In Stock, Qty 5

0

45

Briggs & Stratton 710530

TAPPET, VALVE

$

$

Not available

51

Briggs & Stratton 710559

GASKET, Intake

$4.99

$

In Stock, Qty 13

0

53

Briggs & Stratton 710556

STUD

$8.49

$

In Stock, only 1 left!

0

293

Briggs & Stratton 710538

SCREW

Note: (Rocker Arm Shaft)

$3.49

$

Usually ships in 2-12 days

0

296

STUD

Note: (Part information located in Exhaust Group.)

$

$

Not available

337

Briggs & Stratton 491055

PLUG, Spark
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, Qty 10

0

635

Briggs & Stratton 710901

BOOT, Spark Plug

$6.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 710005

PIN, Locating

$5.49

$

Usually ships in 2-12 days

0

773A

Briggs & Stratton 710537

RETAINER

$4.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 710863

SEAL, Valve

$11.99

$

Usually ships in 2-12 days

0

914

Briggs & Stratton 710023

SCREW

Note: (Rocker Cover)

$3.99

$

In Stock, Qty 13

0

1022

Briggs & Stratton 710377

GASKET, Rocker Cover

$9.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 715376

COVER, Rocker

$81.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 710373

ROD, Push

$13.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 710534

ARM, Rocker
(Superseded to 716521)

$40.99

$

Usually ships in 2-12 days

0

1031

Briggs & Stratton 710533

SHAFT, Rocker Arm

$19.99

$

Usually ships in 2-12 days

0

1060

Briggs & Stratton 710535

SPRING, Rocker Shaft

$5.49

$

Usually ships in 2-12 days

0
