245437-0802-E1 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

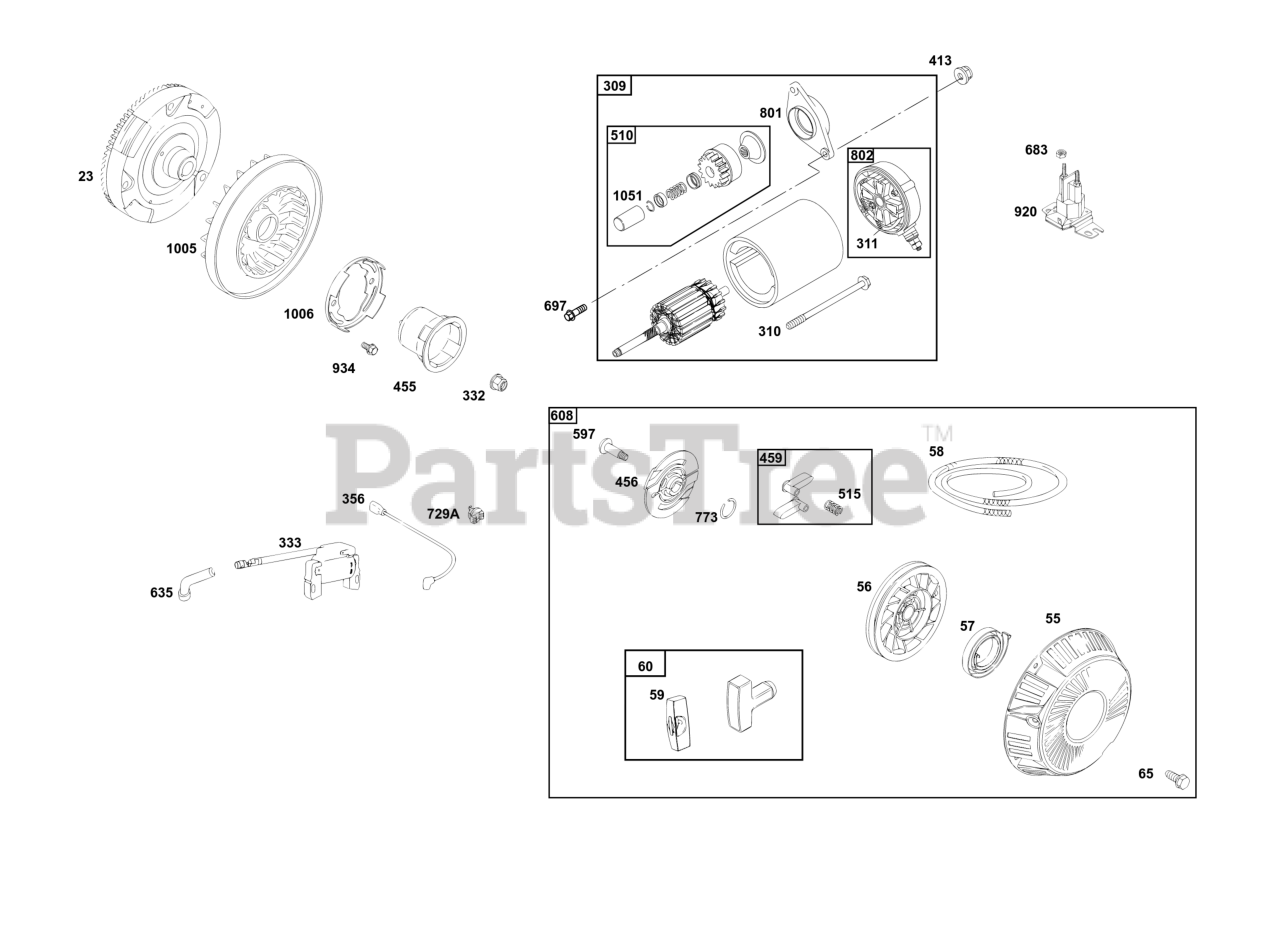

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 715258

FLYWHEEL

$511.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 691568

HOUSING, Rewind Starter

$103.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 692085

PULLEY, Rope Starter

$59.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 692086

SPRING, Rewind Starter

$15.99

$

In Stock, only 2 left!

0

58

Briggs & Stratton 66574X

ROPE, Starter

$

$

Currently unavailable

59

Briggs & Stratton 805957

INSERT, Grip

$8.49

$

In Stock, only 4 left!

0

60

Briggs & Stratton 808157

GRIP, Starter Rope

$

$

Currently unavailable

65

Briggs & Stratton 710074

SCREW

Note: (Rewind Starter)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 715208

MOTOR, Starter

$503.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 710589

SCREW

Note: (Starter Motor)

$6.49

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 497608

SET, Brush

$27.99

$

In Stock, only 2 left!

0

332

Briggs & Stratton 710345

NUT
(Superseded to 712174)

Note: (Flywheel)

$8.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 591459

ARMATURE-MAGNETO

$53.99

$

In Stock, Qty 20+

0

356

Briggs & Stratton 710324

WIRE, Stop

$7.49

$

Usually ships in 2-12 days

0

413

Briggs & Stratton 710081

NUT

Note: (Starter Motor)

$3.99

$

In Stock, only 2 left!

0

455

Briggs & Stratton 710588

CUP, Flywheel

$34.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 691529

PLATE, Pawl Friction

$17.99

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 808166

PAWL, Ratchet

$20.99

$

In Stock, only 2 left!

0

510

Briggs & Stratton 496881

DRIVE, Starter

$

$

Not available

515

Briggs & Stratton 691528

SPRING, Pawl

$6.99

$

In Stock, only 1 left!

0

597

Briggs & Stratton 690876

SCREW

Note: (Pawl Friction Plate)

$6.49

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 692102

STARTER, Rewind

$117.99

$

In Stock, only 2 left!

0

635

BOOT, Spark Plug

$

$

Not available

683

Briggs & Stratton 691029

NUT

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 710348

SCREW

Note: (Drive Cap)

$5.49

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 710046

CLIP, Wire

$7.99

$

Usually ships in 2-12 days

0

773

Briggs & Stratton 690875

RETAINER

$4.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 715394

CAP, Drive
(Superseded to 715208)

$503.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 715393

CAP, End

$

$

Not available

920

Briggs & Stratton 710843

SOLENOID, Starter

$

$

Not available

934

Briggs & Stratton 710550

SCREW

Note: (Fan Retainer)

$3.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 691905

FAN, Flywheel

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

RETAINER, Fan

$10.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691124

RING, Retaining

$7.99

$

Usually ships in 2-12 days

0
